Without stand - LCD monitor - 17" - touchscreen - 1280 x 1024 - 250 cd/m² - 1000:1 - HDMI, VGA, DisplayPort - black
| Main Specifications | |
|---|---|
| Product Description | MicroTouch SK-170P-B1 - without stand - LCD monitor - 17" |
| Device Type | LCD monitor - 17" - touchscreen |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI, VGA, DisplayPort |
| Voltage | AC 100-240 V (50/60 Hz) |
| Color | Black |
| Dimensions (WxDxH) | 14.5 in x 1.9 in x 12.1 in |
| Weight | 7.94 lbs |
| Compliant Standards | IP65 front, IPX1 back, FCC, UL 62368, CB 62368, CCC |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LCD monitor / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 160 |
| OSD Languages | English, French, German, Italian, Spanish, Japanese, Chinese (simplified), Chinese (traditional) |
| Features | Projected Capacitive Touch (P-CAP) technology |
| Color | Black |
| Dimensions (WxDxH) | 14.5 in x 1.9 in x 12.1 in |
| Weight | 7.94 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power cable, power adapter, M3 screw, I/O cover |
| Cables Included | 1 x HDMI cable - 6 ft ¦ 1 x VGA cable - 6 ft ¦ 1 x USB-A to USB-B cable - 6 ft |
| Compliant Standards | IP65 front, IPX1 back, FCC, UL 62368, CB 62368, CCC |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (Typical) | 15 watt |
| Power Consumption (Max) | 20 watt |
| Power Consumption Sleep | 1 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Connectivity | |

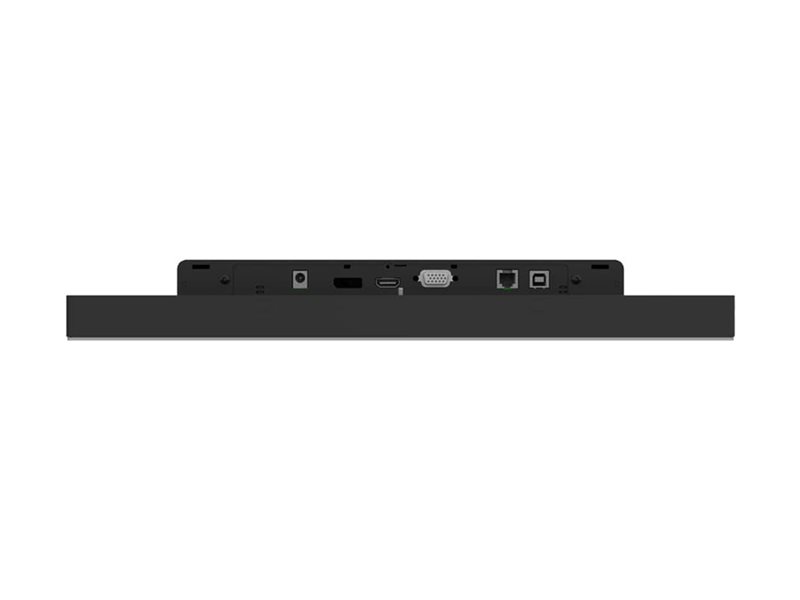

| Interfaces | DisplayPort ¦ VGA (DB-15) ¦ HDMI ¦ USB 2.0 (Type B) ¦ OSD control (RJ-11) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.9 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 15.2 in |
| Shipping Weight | 11.46 lbs |
| Input | |
| Type | Touchscreen |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm, VESA |
