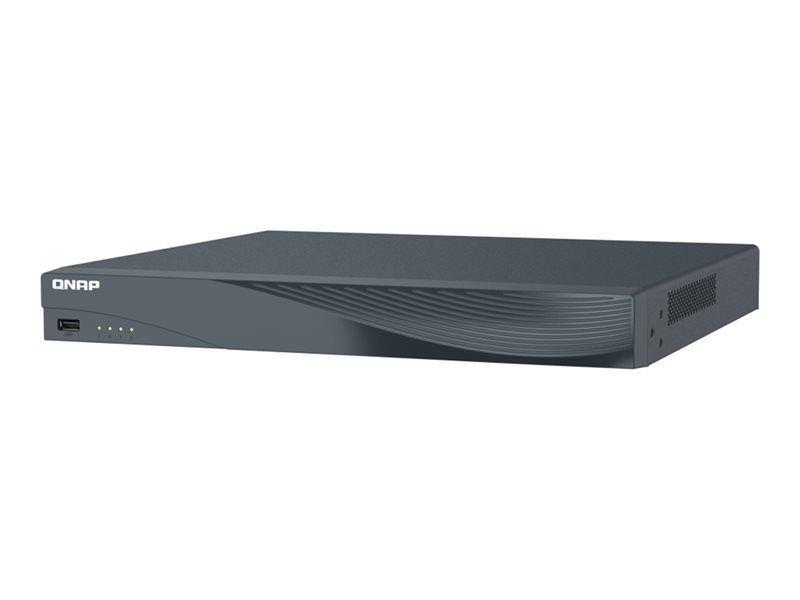

NVR - 16 channels - PoE+ - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | QNAP TVR-AI200 - standalone NVR - 16 channels |
| Device Type | NVR - 16 channels (16 max supported) - rack-mountable - 1U |
| IP Cameras Supported | 4 |
| Frame Rate | 30 fps |
| Compression Format | H.264, AVI, MPEG-4, QVI, H.265 |
| TV System | NTSC/PAL |
| Image Resolution | 1920x1080 |
| Hard Drive(s) Supported | Quantity: 2 |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 14.2 in x 13.1 in x 1.7 in |
| Weight | 4.76 lbs |
| General | |
| Device Type | NVR - rack-mountable - 1U |
| Video Channels | 16 |
| Max Supported Video Channels | 16 |
| IP Cameras Supported | 4 |
| TV System | NTSC/PAL |
| Image Resolution | 1920x1080 |
| Compression Format | H.264, AVI, MPEG-4, QVI, H.265 |
| Cables Included | Network cable - RJ-45 - RJ-45 - 1 pcs. |
| OS Provided | QNE TVR OS |
| Compliant Standards | Plug and Play, IEEE 802.3af, IEEE 802.3at |
| Networking | |
| Power Over Ethernet (PoE) | PoE+ |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | HTTP, RTSP |
| Features | Syslog support, wake on LAN (WOL), Single Disk, RAID Recovery, EXT4 file system, built-in buzzer, PoE up to 30 watts per port, 130W PoE power budget, reset button, power button, LED status indicators, Constant Bit Rate (CBR), Variable Bit Rate (VBR), automatic snapshot, anti-tampering protection, event log, user access log, user quota management, ONVIF support, hardware-accelerated transcoding, Neural Processing Unit (NPU) |
| Power | |
| Voltage | 100 - 240 V |
| Power Consumption | 23.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| System Requirements | |
| Operating Systems | Apple macOS 10.13 or later, Linux, Unix, Windows 8.1, Windows 10 |
| Hard Drive | |
| Quantity Supported | 2 |
| Interface | Serial ATA |
| Removable | Yes |
| Connections | |
| Video Output Ports | HDMI x 1 |
| Other Ports | USB 2.0 x 2, USB 3.2 x 1 |
| Dimensions & Weight | |
| Width | 14.2 in |
| Depth | 13.1 in |
| Height | 1.7 in |
| Weight | 4.76 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.94 lbs |
| Security DVR | |
| Frame Rate (Record) | 30 fps |
| Video Recording Resolution | 16 Megapixels |
| Features | RAID 1 support, built-in cooling fan, 2-way audio communication |
| Video Server | |
| CPU | ARM Cortex A55 |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Features | Mali-G52 graphics processor |
