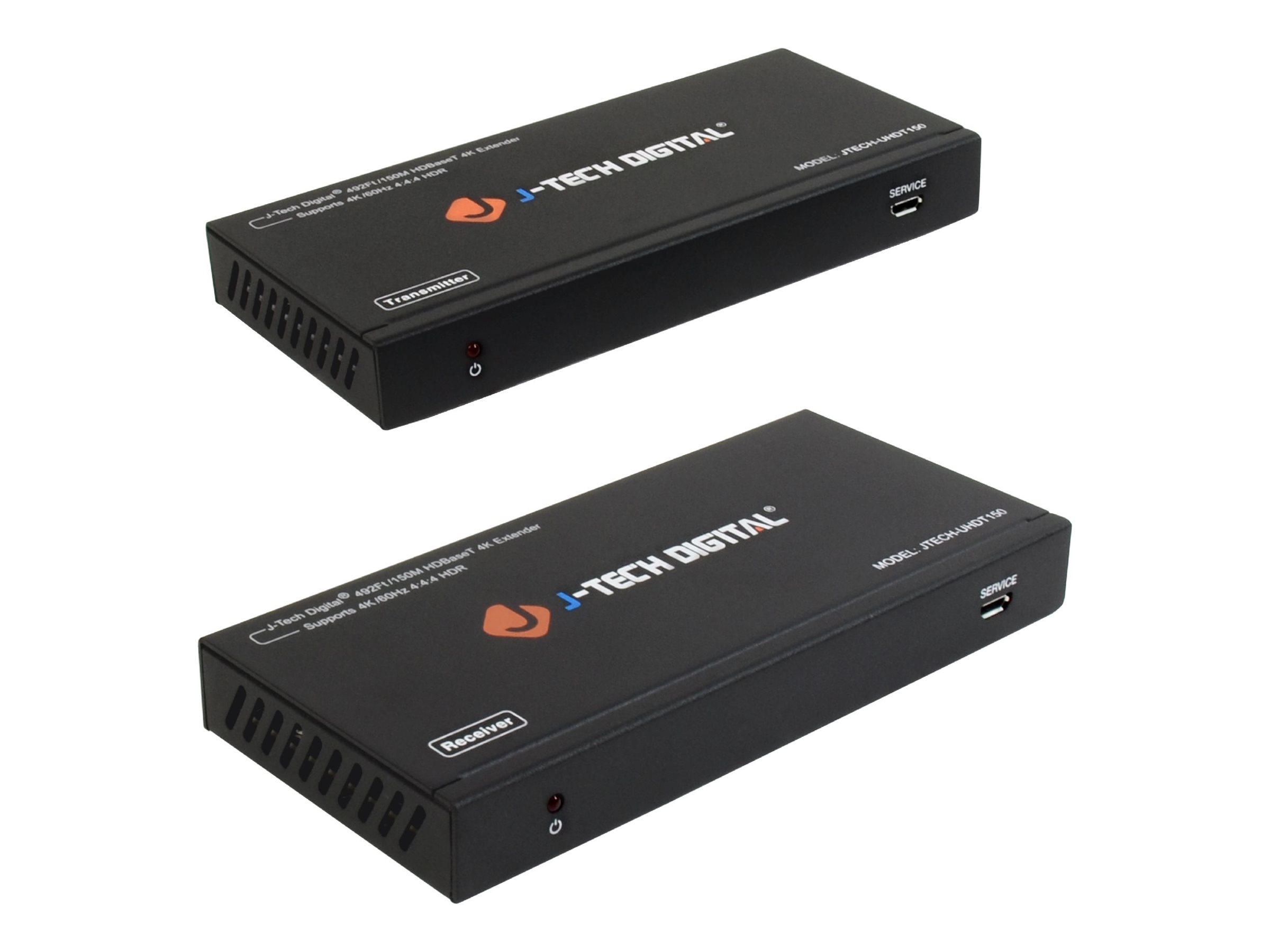

Video/audio/infrared/serial extender - HDMI, HDBaseT - up to 492 ft
| Main Specifications | |
|---|---|
| Product Description | J-Tech Digital - video/audio/infrared/serial extender - HDMI, HDBaseT |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | Desktop |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI, HDBaseT |
| Max Transfer Distance | 492 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 5 in x 2.6 in x 0.7 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | Desktop |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input ¦ 1 x HDMI output ¦ 1 x HDBaseT - RJ-45 ¦ 1 x IR input ¦ 1 x IR output ¦ 1 x RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Serial cable |
| Mounting Kit | Included |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 492 ft |
| Features | 4K resolution support, 1080p resolution support, metal housing, Dolby Digital support, Dolby TrueHD support, DTS ES support, DTS:X support, DTS-HD Master Audio support, DTS-HD support, LPCM 2.0 support, LPCM 2.1 support, LPCM 5.1 support, LPCM 6.1 support, LPCM 7.1 support, 4:4:4 chroma subsampling support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 2.6 in |
| Height | 0.7 in |
