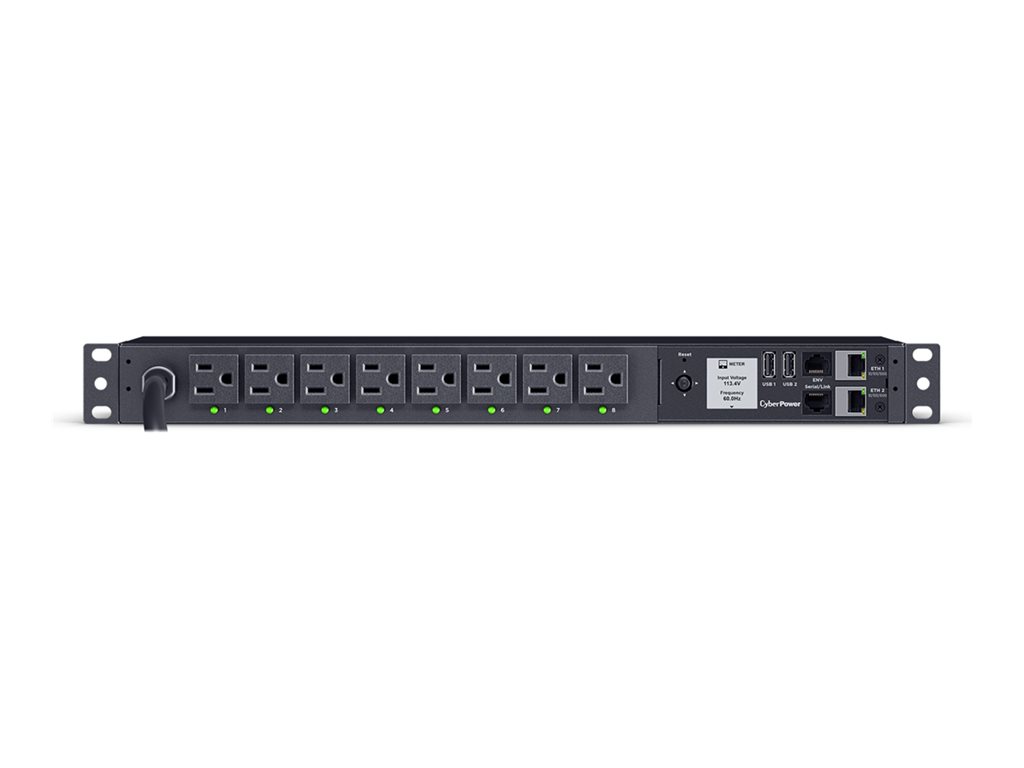

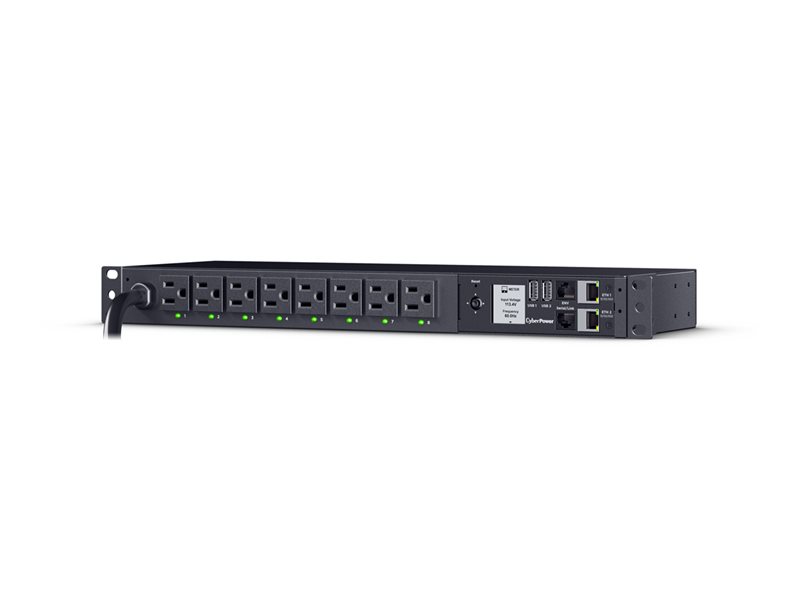

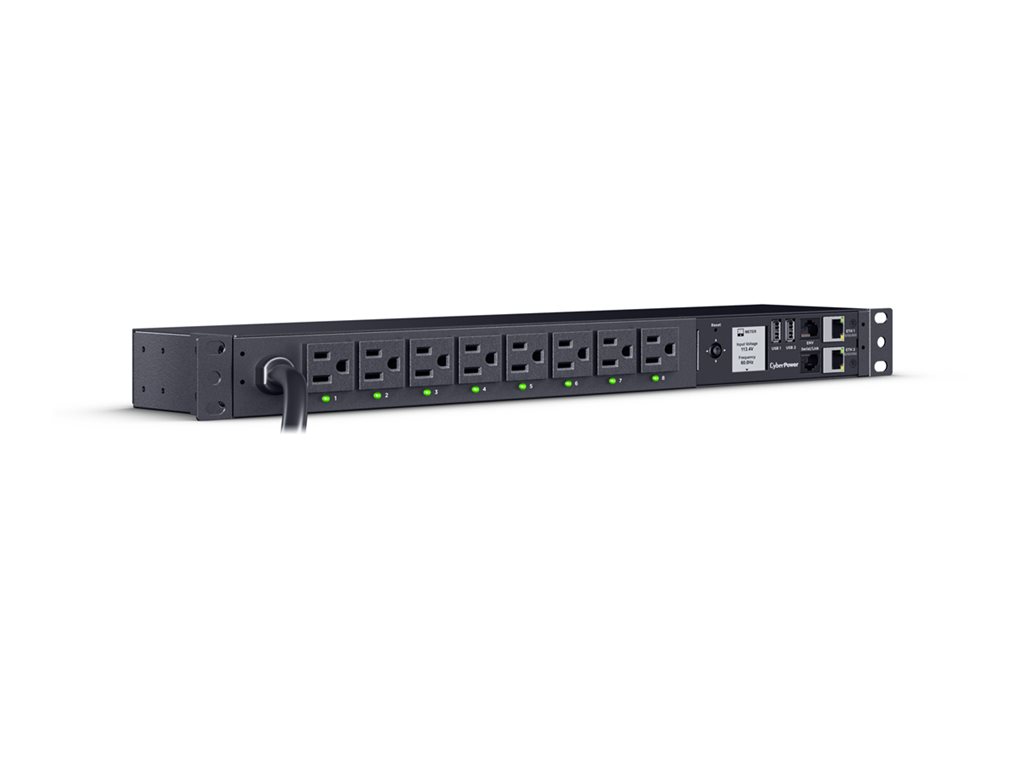

Power distribution unit (rack-mountable / wall mountable) - AC 120 V - 1-phase - Ethernet 10/100/1000, serial - input: NEMA 5-15P - output connectors: 8 (power NEMA 5-15R) - 1U - 12 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | CyberPower Switched Series PDU41001G - power distribution unit |
| Device Type | Power distribution unit - rack-mountable / wall mountable |
| Cord Length | 12 ft |
| Rack Size | 1U |
| Weight | 5.71 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100-120 V |
| Input Connectors | 1 x power NEMA 5-15P |

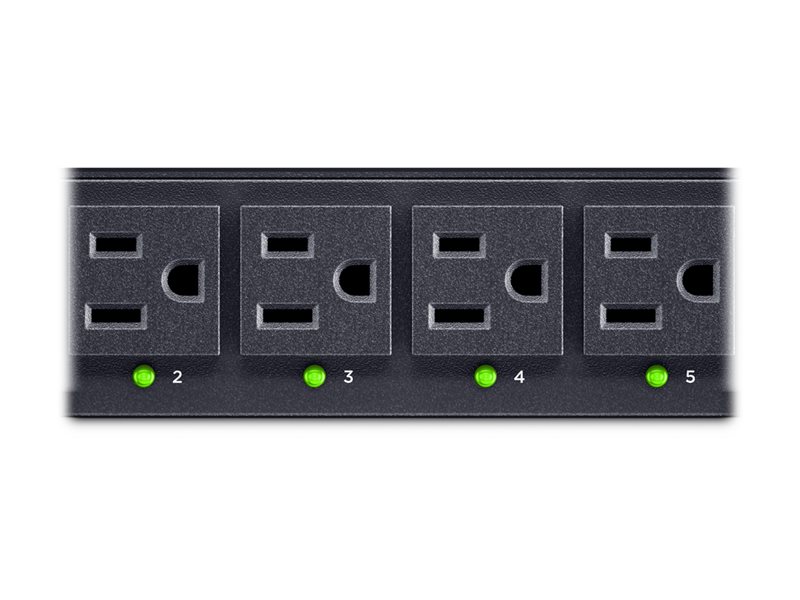

| Output connectors | 8 x power NEMA 5-15R |
| Networking | Ethernet 10/100/1000, serial |
| Remote Management Protocol | SNMP 1, TCP/IP, UDP, IPv4, IPv6, HTTP, NTP, DNS, Telnet, DHCP, SMTP, SNMP 3, HTTPS, SSH, TLS, LDAP, LDAPS, Syslog, RADIUS, Windows AD, CLI |
| Included Accessories | 10 cable ties, cable retention tray |
| Color | Black |
| Dimensions (WxDxH) | 17 in x 4.4 in x 1.8 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable / wall mountable |
| Height (Rack Units) | 1U |
| Cord Length | 12 ft |
| Color | Black |
| Expansion / Connectivity | |

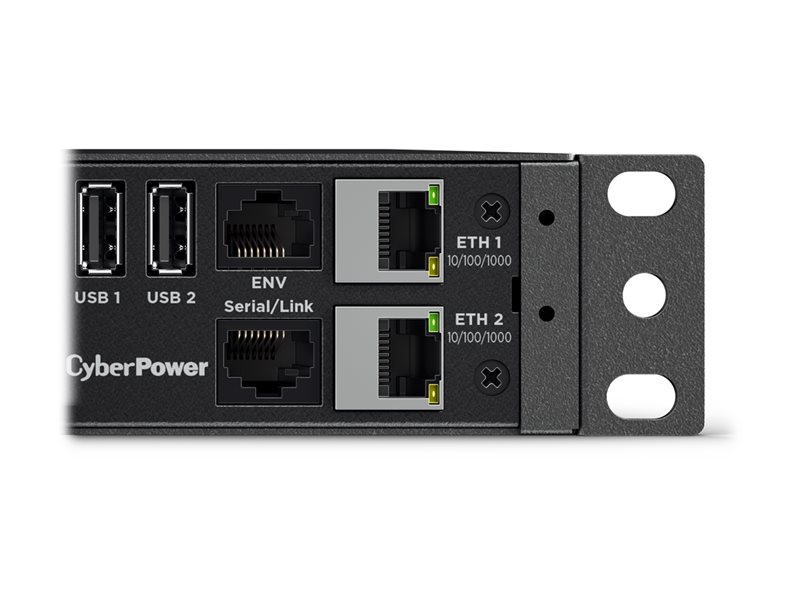

| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x serial ¦ 2 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 10 cable ties, cable retention tray |
| Rack Mounting Kit | Included |

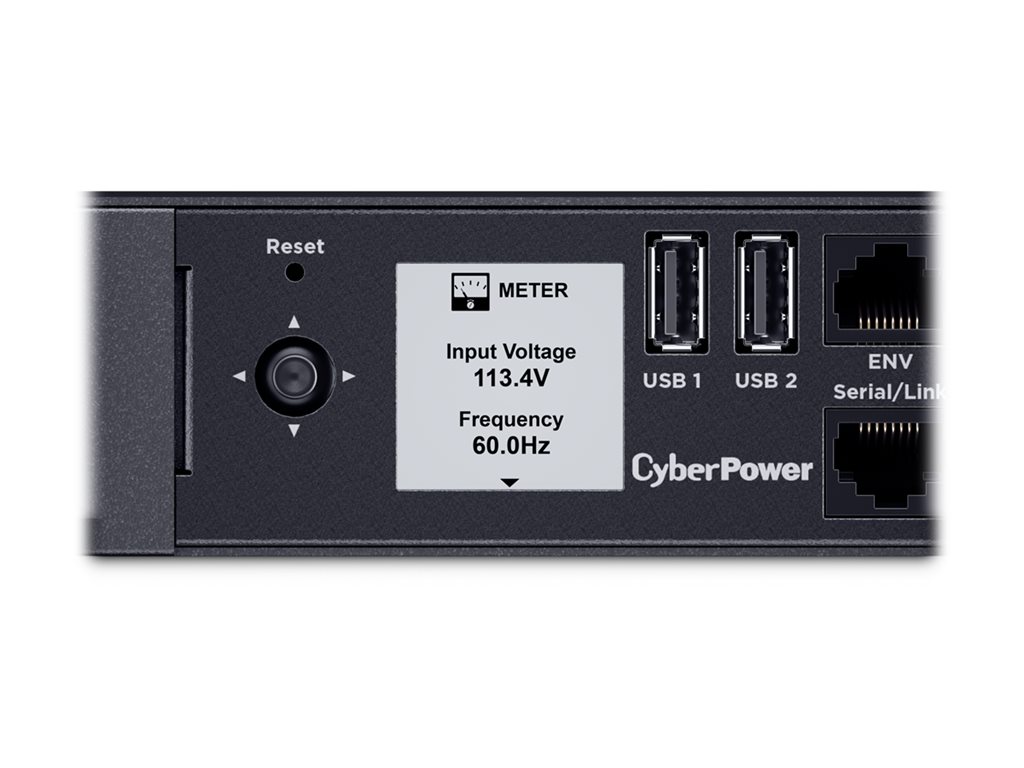

| Features | Metal housing, LCD display, LED indicators |
| Compliant Standards | RoHS, UL62368, FCC Class A certified, ICES-003 issue 7 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, serial |
| Remote Management Protocol | SNMP 1, TCP/IP, UDP, IPv4, IPv6, HTTP, NTP, DNS, Telnet, DHCP, SMTP, SNMP 3, HTTPS, SSH, TLS, LDAP, LDAPS, Syslog, RADIUS, Windows AD, CLI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 100-120 V |
| Max Electric Current | 15 A |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 4.4 in |
| Height | 1.8 in |
| Weight | 5.71 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.5 in |
| Shipping Depth | 9.8 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 7.8 lbs |
