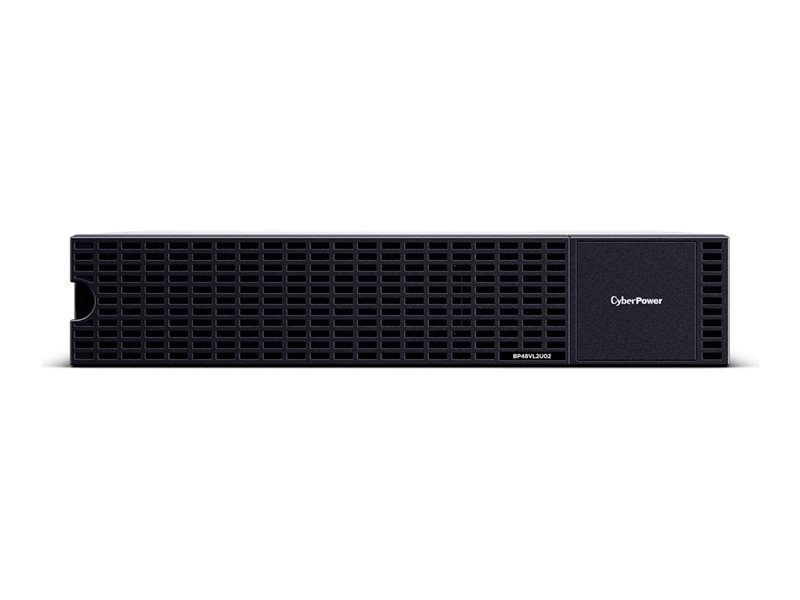

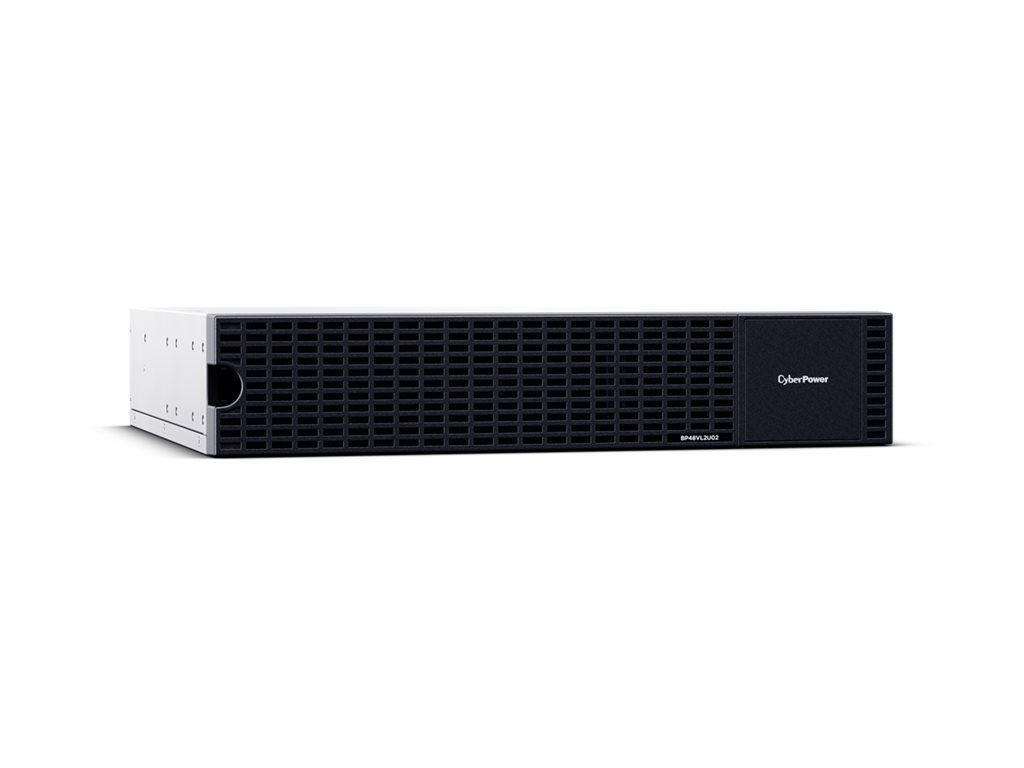

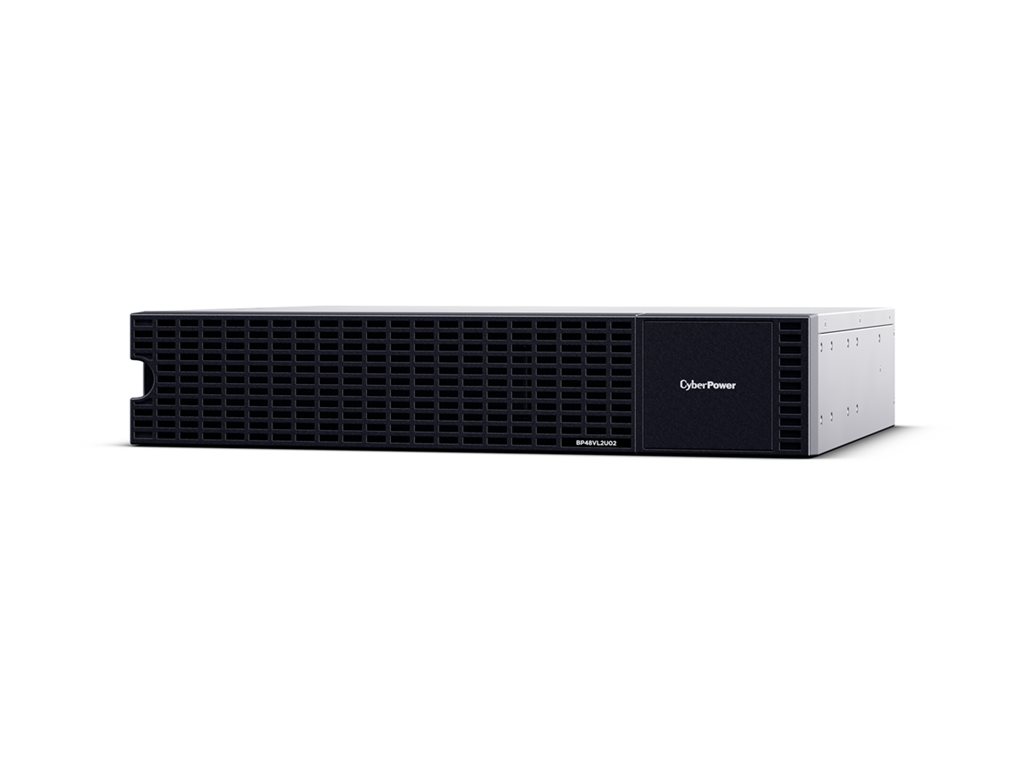

Battery enclosure (rack-mountable / external) - AC 120 V - 8 x battery - Sealed Lead Acid (SLA) - 7 Ah - output connectors: 2 - 2U - silver
| Main Specifications | |
|---|---|
| Product Description | CyberPower Extended Battery Module Series BP48VL2U02 - battery enclosure - Sealed Lead Acid (SLA) - 7 Ah |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 60.63 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | DC 48 V |
| Input Connectors | Power NEMA 5-15P |
| Output connectors | 1 x battery connector - 48 V ¦ 1 x power NEMA 5-15R |
| Battery | Sealed Lead Acid (SLA) - 7 Ah |
| Batteries Qty | 8 |
| Included Accessories | Mounting hardware, 12 rubber pads |
| Color | Silver |
| Dimensions (WxDxH) | 17.1 in x 18.3 in x 3.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting hardware, 12 rubber pads |
| Rack Mounting Kit | Included |

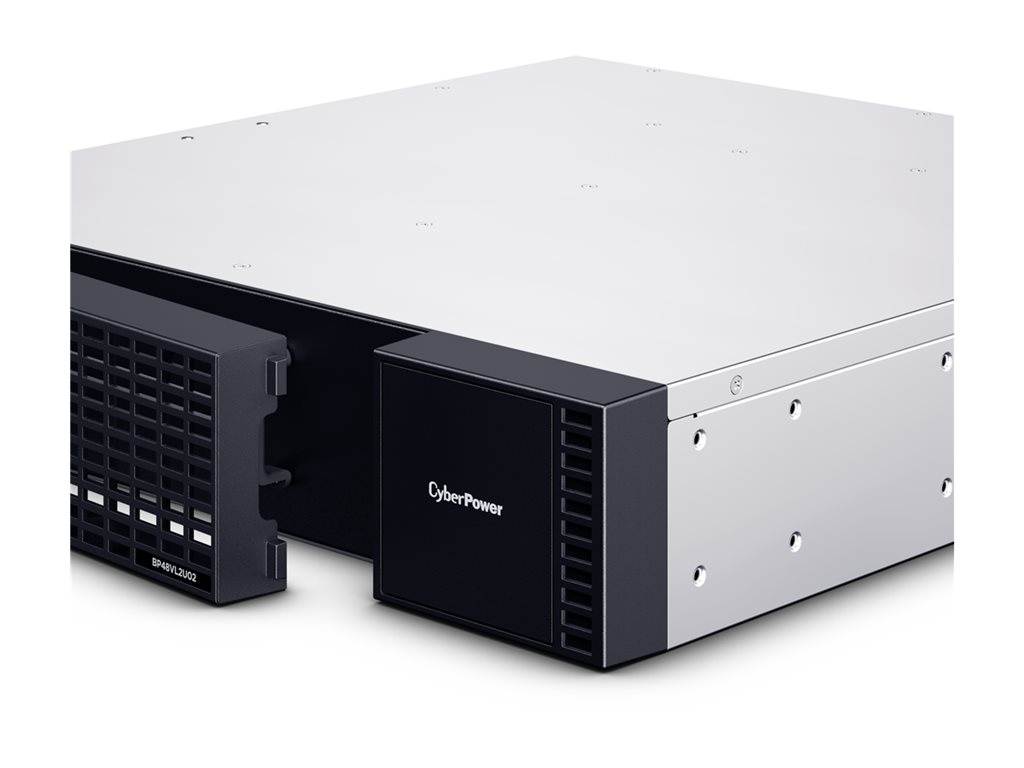

| Features | Built-in battery charger, metal cabinet, Smart Battery Management (SMB), Fast Charge technology, user-replaceable batteries |
| Compliant Standards | RoHS, UL 1778, CSA C22.2 No. 107.3, FCC Part 15 A, FCC Part 15 B |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Battery | |
| Quantity | 8 |
| Technology | Sealed Lead Acid (SLA) |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Recharge Time | 4 hours |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 125 V |

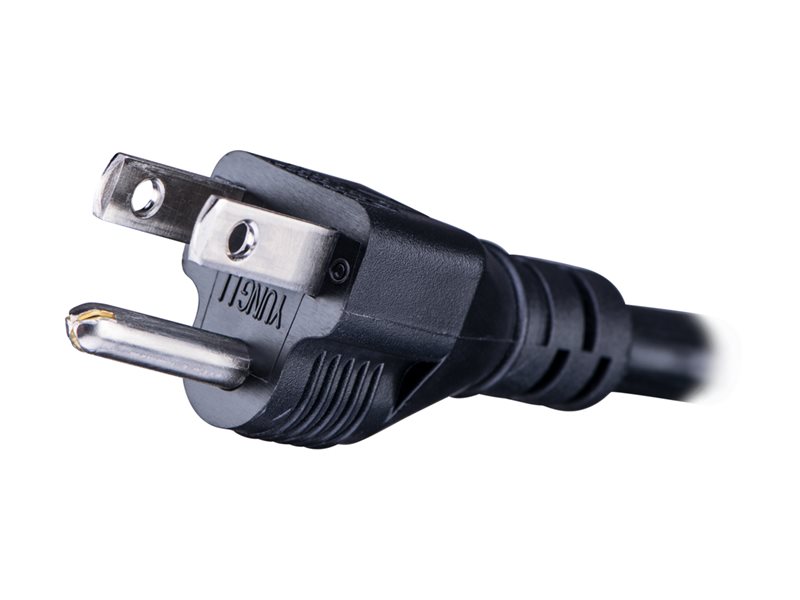

| Input Connectors | Power NEMA 5-15P |

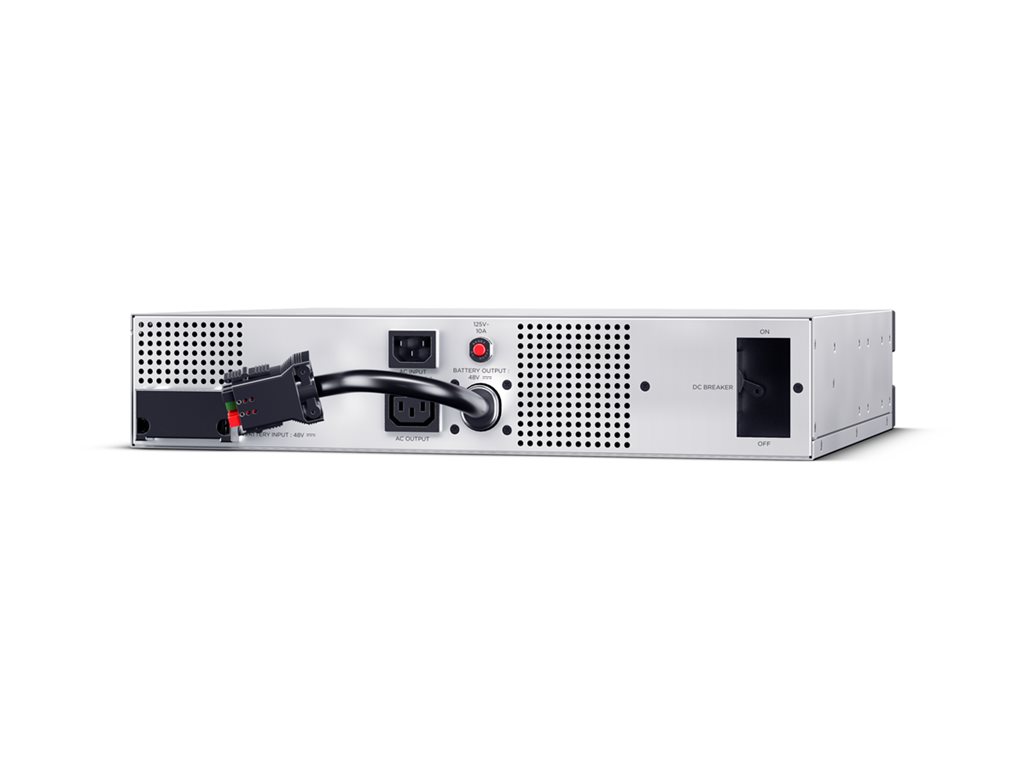

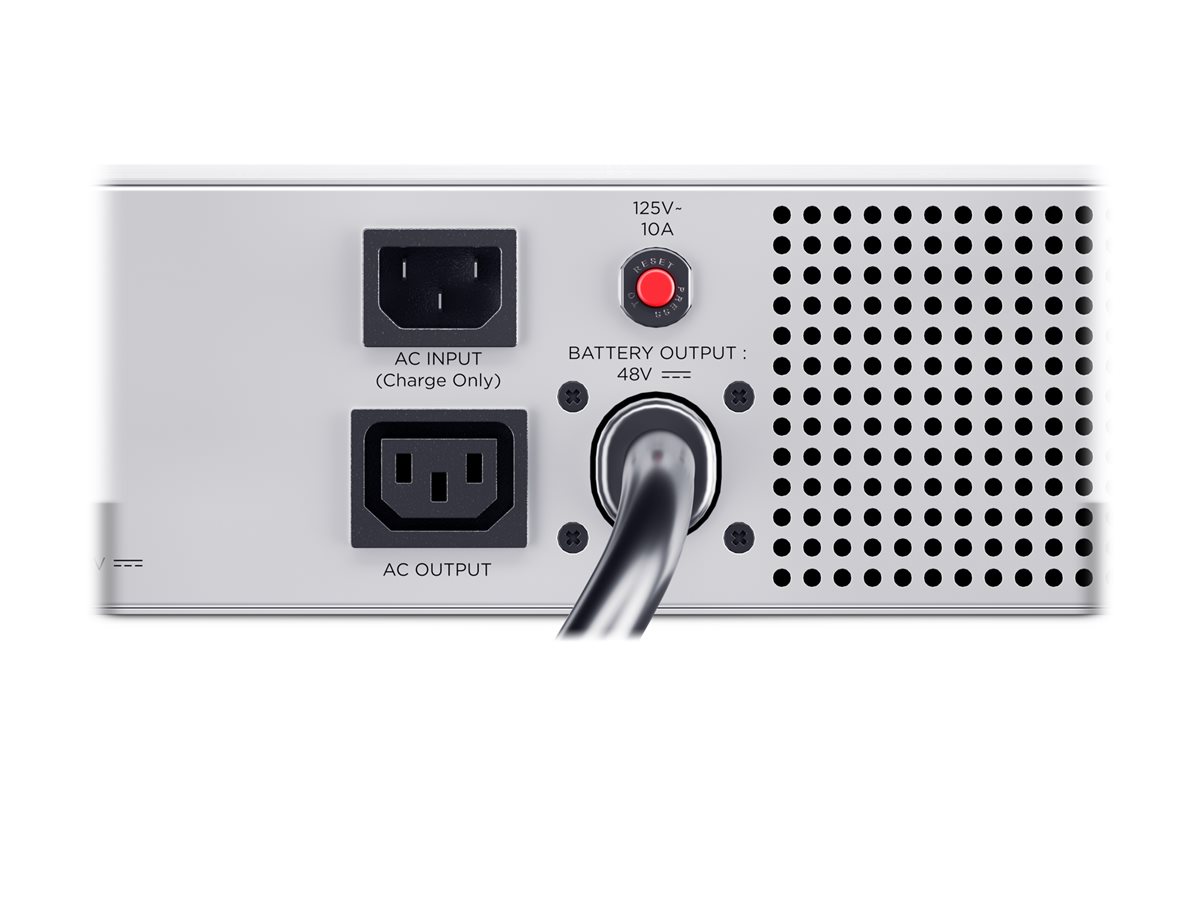

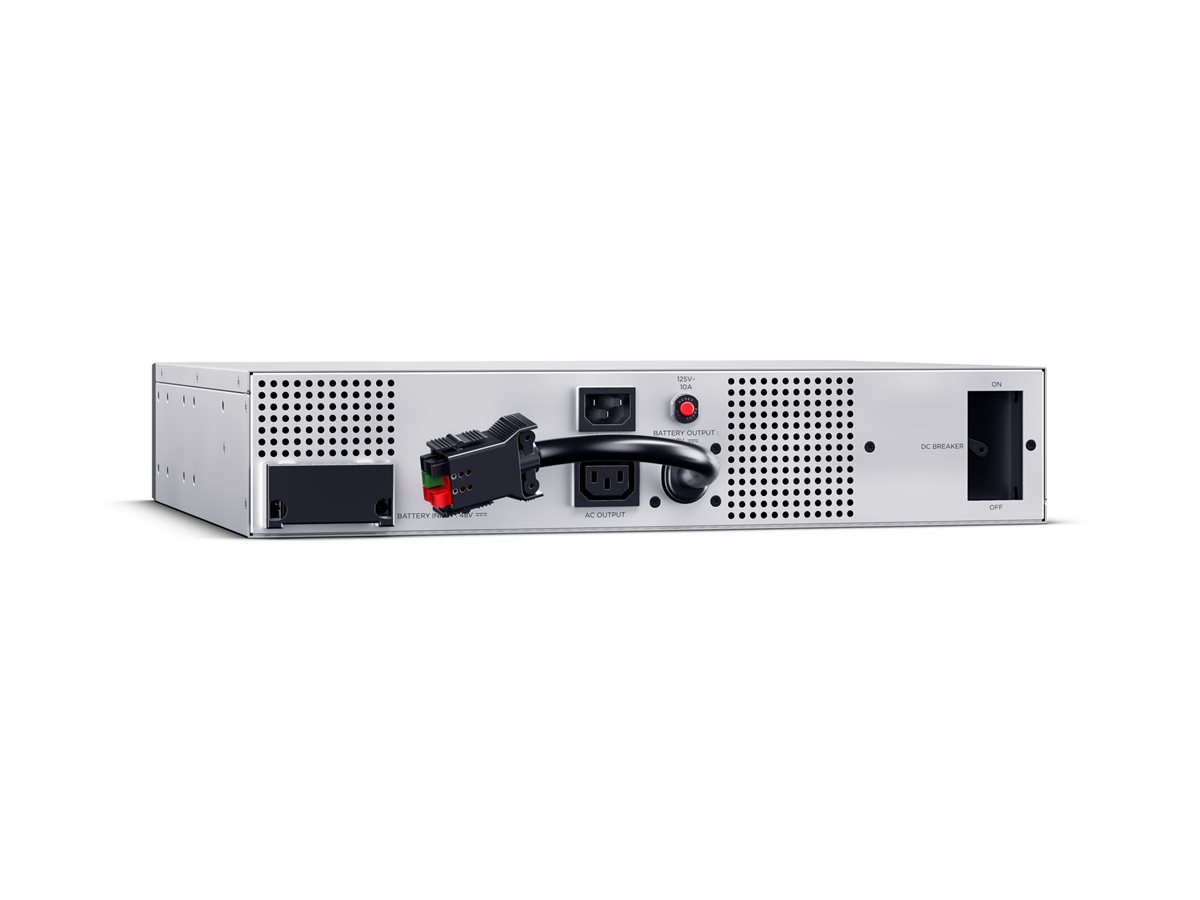

| Power Output Connectors Details | 1 x battery connector - 48 V ¦ 1 x power NEMA 5-15R |
| Output Voltage | DC 48 V |
| Max Electric Current | 70 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 18.3 in |
| Height | 3.4 in |
| Weight | 60.63 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 in |
| Shipping Depth | 22.3 in |
| Shipping Height | 9 in |
| Shipping Weight | 69 lbs |
