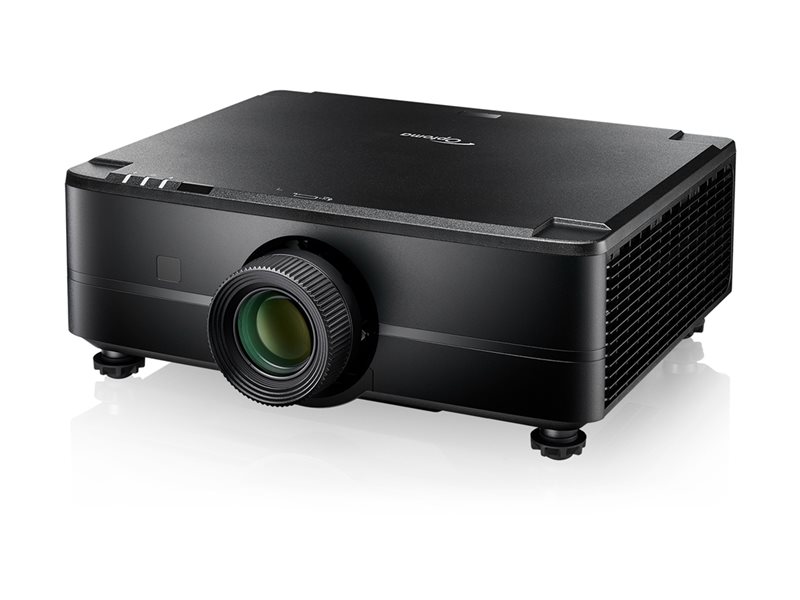

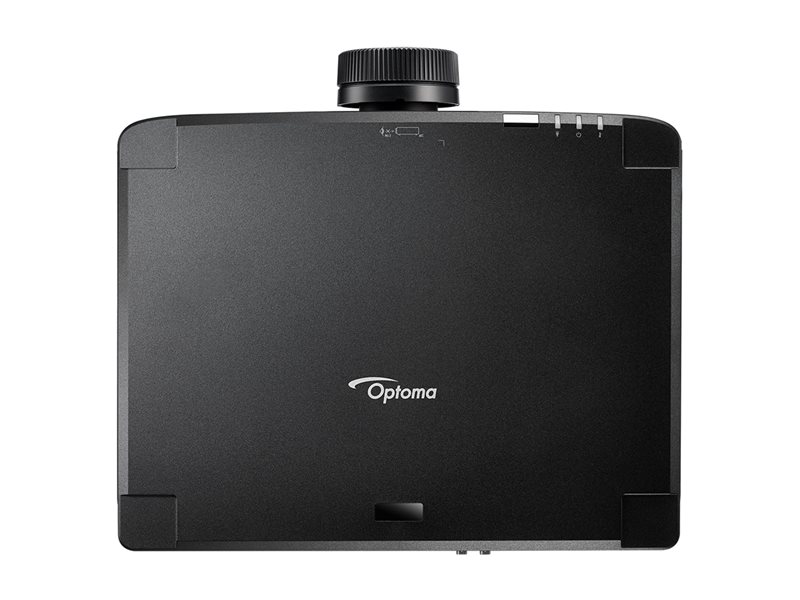

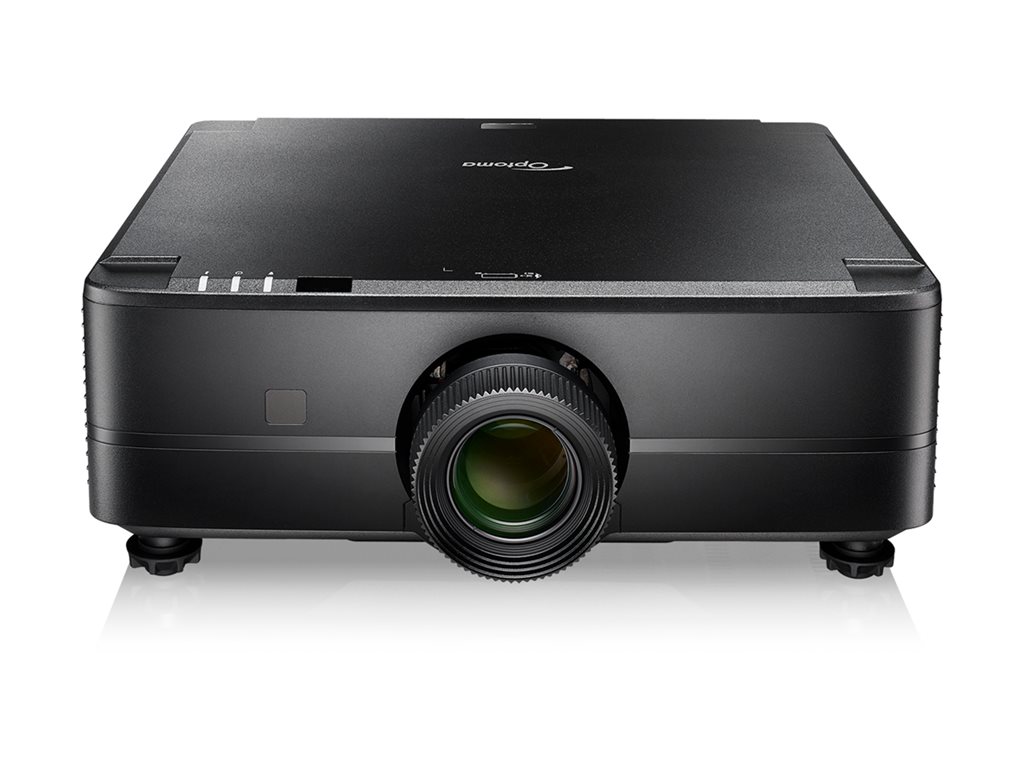

DLP projector - laser - 3D - 9800 lumens - WUXGA (1920 x 1200) - 16:10
| Main Specifications | |
|---|---|
| Product Description | Optoma ProScene ZU920TNL - DLP projector - 3D |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Brightness | 9800 lumens |
| Contrast Ratio | 1100:1 / 3000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens Shift Direction | Vertical, horizontal |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Speakers | Speaker(s) - integrated |
| Power | AC 90-264 V (50/60 Hz) |
| Dimensions (WxDxH) | 19.1 in x 14.8 in x 7.3 in |
| Weight | 27.78 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Expansion / Connectivity | |

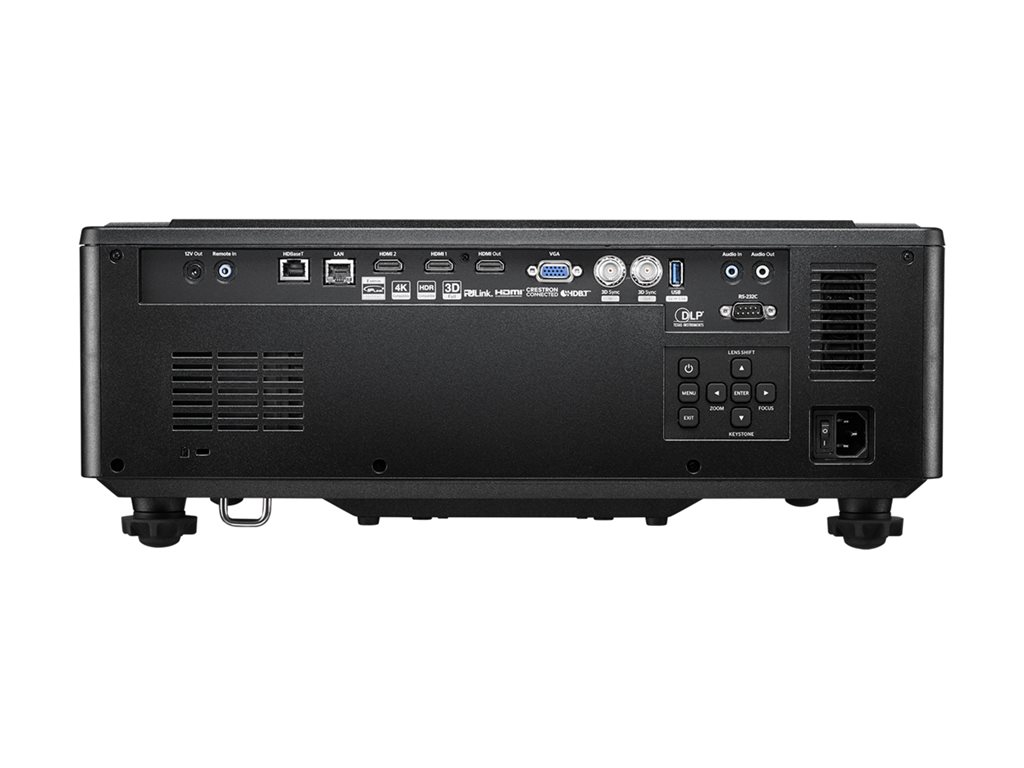

| Interfaces | 1 x HDBaseT input - RJ-45 ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x 3D Sync in ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x 3D Sync out ¦ 1 x USB - 4 pin USB Type A (power only) ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x 12V programmable trigger (management) ¦ 1 x remote control (management) ¦ 1 x network - RJ-45 (management) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Backlit remote control |
| Security Features | Security lock slot (cable lock sold separately), security bar |
| Security Slot Type | Kensington security slot |
| Compliant Standards | IEC 60529 IP5X |
| Power | |
| Power Source | AC |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Environmental Parameters | |
| Sound Emission | 36 dB |
| Sound Emission (Economic Mode) | 27 dB |
| Video Input | |
| Video Interfaces | HDMI, HDBaseT, VGA |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 14.8 in |
| Height | 7.3 in |
| Weight | 27.78 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 39.24 lbs |
| Projector | |
| Brightness | 9800 lumens |
| Contrast Ratio | 1100:1 / 3000000:1 (dynamic) |
| Image Size | 50 in - 300 in |
| Projection Distance | 10.2 in - 9.7 ft |
| Throw Ratio | 2.9 - 5.5:1 |
| Uniformity | 95 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4K (resized) |
| Native Aspect Ratio | 16:10 |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Controls & Adjustments | Keystone correction |
| OSD Languages | English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional) |
| Features | 16:9 aspect ratio support, 4:3 aspect ratio support, DuraCore, Full 3D HDMI Support, 24/7 operation, 360° projection, 4 Corner Correction, High Dynamic Range (HDR), portrait projection, Edge blending, Warping Projection, Colour Management System (CMS), AV mute, Direct Power Off, Constant Brightness Mode, Telnet compatible, AMX Control System, Crestron RoomView, Extron Control System |
| Lens | |
| Focus Type | Powered |
| Zoom Type | Powered |
| Zoom Factor | 1.9x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -15 / +15 |
| Horizontal Keystone Correction | -15 / +15 |
| Lens Shift Type | Powered |
| Lens Shift Direction | Vertical, horizontal |
| Vertical Lens Shift | 55% / 55% |
| Horizontal Lens Shift | 25% / 25% |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Stereo |
| Output Power / Channel | 10 watt |
| Speakers | 2 x mixed channel |
