Video scaler / switcher / audio ambedder/disembedder / audio power amplifier
| Main Specifications | |
|---|---|

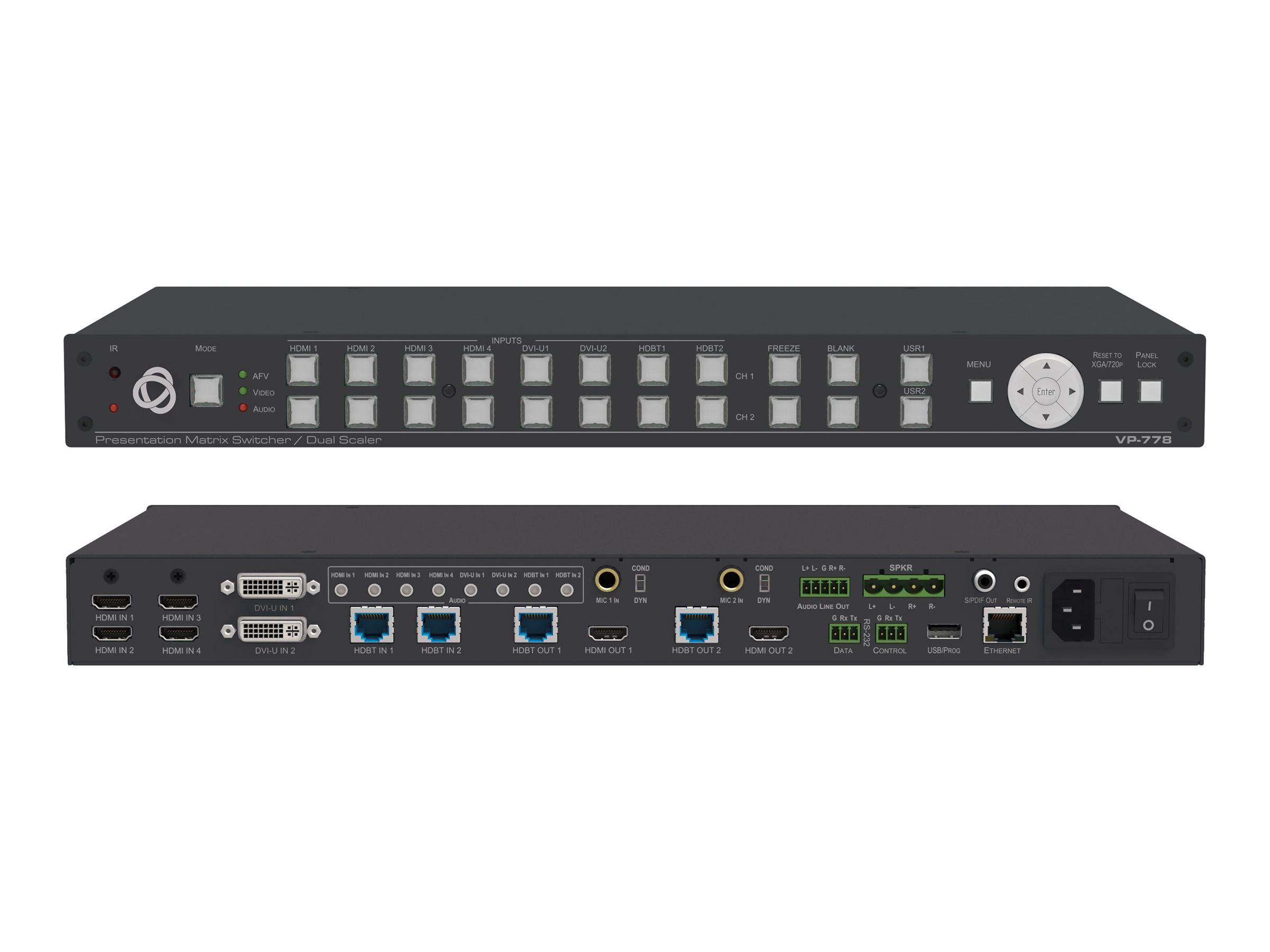

| Product Description | Kramer VP-778 video scaler / switcher / audio ambedder/disembedder / audio power amplifier |
| Type | Video scaler / switcher / audio ambedder/disembedder / audio power amplifier |
| Dimensions (WxDxH) | 17.2 in - 9.3 in - 1.7 in |
| Weight | 5.73 lbs |
| General | |
| Type | Video scaler / switcher / audio ambedder/disembedder / audio power amplifier |
| Width | 17.2 in |
| Depth | 9.3 in |
| Height | 1.7 in |
| Weight | 5.73 lbs |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.6 in |
| Shipping Depth | 13 in |
| Shipping Height | 4.2 in |
| Shipping Weight | 8.38 lbs |
| Kit Content | |
| Kit Content | Rack mount brackets |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (2) x DVI-U input - 24+5 pin DVI ¦ (2) x HDBaseT input - RJ-45 ¦ (2) x HDMI output - 19 pin HDMI Type A ¦ (8) x unbalanced audio input - mini-phone stereo 3.5 mm - stereo ¦ (2) x microphone - phone stereo 6.3 mm ¦ (1) x SPDIF output - RCA ¦ (1) x USB - 4 pin USB type A ¦ (2) x serial - terminal block ¦ Audio line-out - terminal block ¦ Speakers output - terminal block ¦ (2) x HDBaseT output - RJ-45 ¦ (1) x network - RJ-45 ¦ (1) x infrared input - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | 4K30 signal support, picture-in-picture support, audio breakaway, PixPerfect scaling technology, deinterlacer function, test pattern generator, EDID support, built-in 2 x 10 watts audio amplifier, Chroma key, Luma key |
