Multi-window video signal processor
| Main Specifications | |
|---|---|

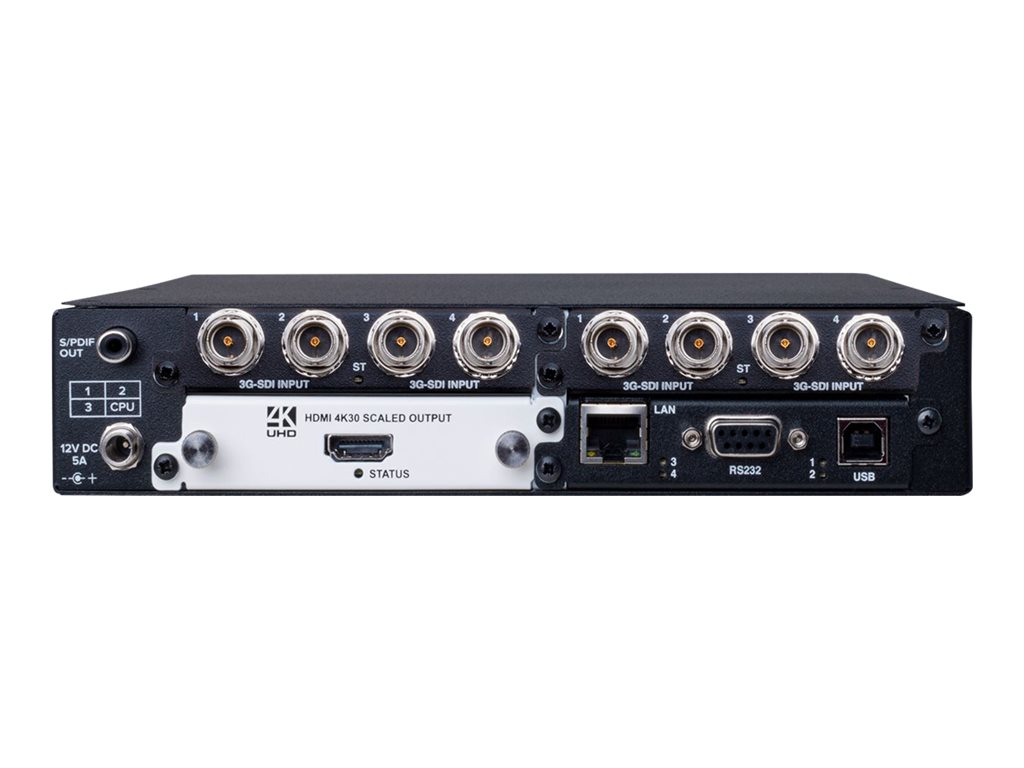

| Product Description | TV One CORIOview MWP-8GS-1Y multi-window video signal processor |
| Type | Multi-window video signal processor |
| Dimensions (WxDxH) | 8.5 in - 9.6 in - 1.7 in |
| Weight | 3.75 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Multi-window video signal processor |
| Width | 8.5 in |
| Depth | 9.6 in |
| Height | 1.7 in |
| Weight | 3.75 lbs |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Terminals | |
| Terminals | (8) x 3G HD-SDI input - BNC ¦ (1) x network - RJ-45 ¦ (1) x USB - 4 pin USB type B ¦ (1) x HDMI output - 19 pin HDMI Type A - 4K ¦ (1) x serial - 9 pin D-Sub (DB-9) - RS-232 ¦ (1) x SPDIF output - RCA |
| Studio & Production Equipment | |
| Features | 4K resolution support, scaler function, audio breakaway, 1080p60 support, HDCP 1.4 compliant |
