Video signal processor
| Main Specifications | |
|---|---|

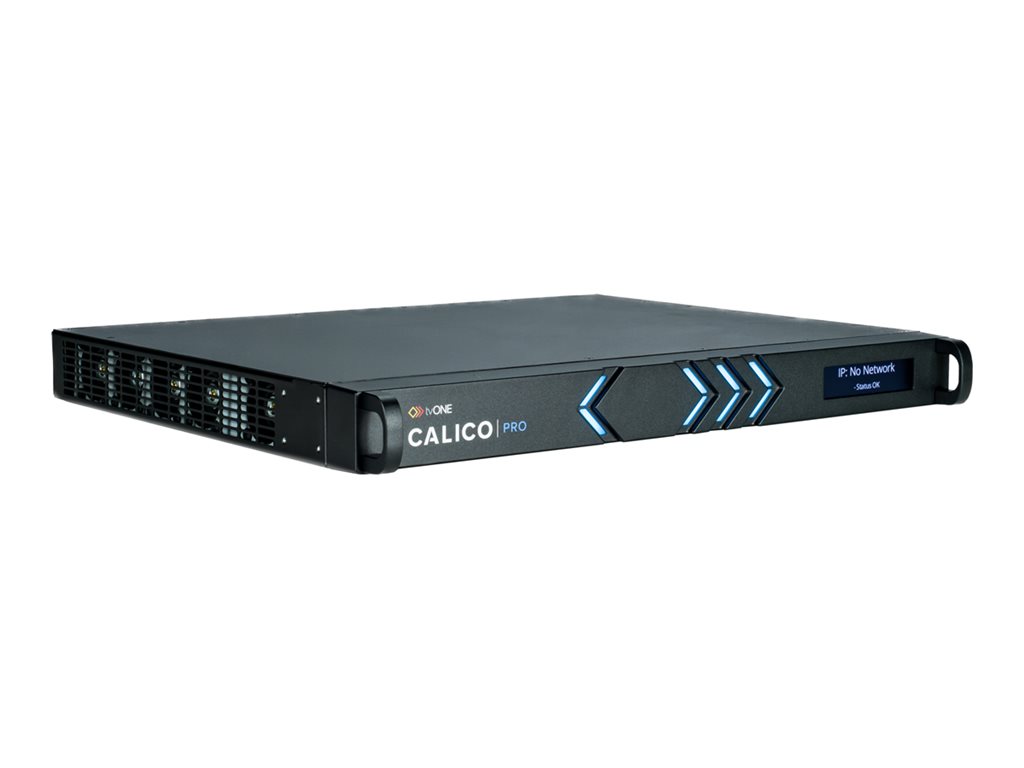

| Product Description | TV One CALICO PRO C7-PRO-1200 video signal processor |
| Type | Video signal processor |
| Dimensions (WxDxH) | 19 in - 15.4 in - 2.2 in |
| Weight | 9.7 lbs |
| Manufacturer Warranty | 5 year limited warranty |
| General | |
| Type | Video signal processor |
| Width | 19 in |
| Depth | 15.4 in |
| Height | 2.2 in |
| Weight | 9.7 lbs |
| Manufacturer Warranty | |
| Warranty | 5 year limited warranty |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 120 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Terminals | |
| Terminals | (6) x HDMI input - 19 pin HDMI Type A ¦ (1) x REF input - BNC ¦ (1) x loop terminal - BNC ¦ (2) x HDMI output - 19 pin HDMI Type A ¦ (1) x NET - RJ-45 ¦ (1) x USB 3.0 - 9 pin USB Type A ¦ (1) x console - Micro-USB Type B |
| Studio & Production Equipment | |
| Features | 1U rack-mountable, 4K60 4:2:2 10 bit signal support, 4K60 4:4:4 8 bit signal support, modular design, LED indicators, HDCP 2.2 compliant, firmware upgradable, HDR (High Dynamic Range) support, HDR10 support, HLG support, 48 kHz sampling rate, EDID support, HTTPS support, built-in OLED display, aluminum front panel, metal enclosure, 24/7 operation, fan cooling, HDCP 1.4 compliant, BMP format support, JPEG format support, FTP support, IPv4 support, HTTP support, TCP/IP support |
