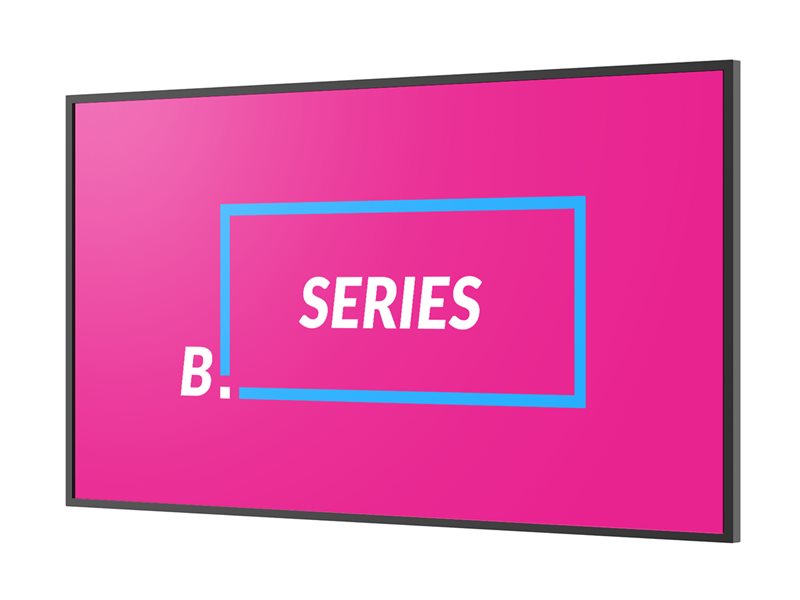

55" Diagonal Class B Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - direct-lit LED
| Main Specifications | |
|---|---|
| Product Description | Avocor AVB-5510 B Series - 55" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2579463 |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN, Wi-Fi |
| LCD Backlight Technology | Direct-lit LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | FUSE remote management |
| Picture Enhancements | 85% Color Gamut NTSC, 90% DCI-P3 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Included Accessories | Remote control |
| Energy Class | Class G |
| Dimensions (WxDxH) - without stand | 48.8 in x 2.7 in x 27.9 in |
| Weight | 30.53 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2579463 |
| Energy Class | Class G |
| Power Consumption SDR (On mode) | 149 kWh/1000h |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Series | B Series |
| Operating System | Android OS 14 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Modes | Landscape mode, portrait mode |
| Picture Enhancements | 85% Color Gamut NTSC, 90% DCI-P3 color gamut |
| Design | Slim Profile, Even Bezel Design |
| Dimensions | Without stand |
| Width | 48.8 in |
| Depth | 2.7 in |
| Height | 27.9 in |
| Weight | 30.53 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | HDMI cable - 10 ft |
| Power | |
| Power Device | Power supply |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct-lit LED |
| Coating | 25% haze |
| Image Contrast Ratio | 4000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 6.5 ms |
| Commercial Features | FUSE remote management |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 8-bit+FRC, OPS Slot, Auto-source-detection, Avocor UiQ |
| Connections | |
| Connector Type | 2 x HDMI input ¦ HDMI output ¦ USB 3.0 ¦ Service ¦ Digital audio output (optical) ¦ Audio line-out ¦ LAN ¦ RS-232 |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 54.7 in |
| Depth (Shipping) | 5.7 in |
| Height (Shipping) | 32.7 in |
| Weight (Shipping) | 40.79 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ac |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A72 Dual-Core + ARM Cortex-A53 Quad-Core - 8 GB - 32 GB |
