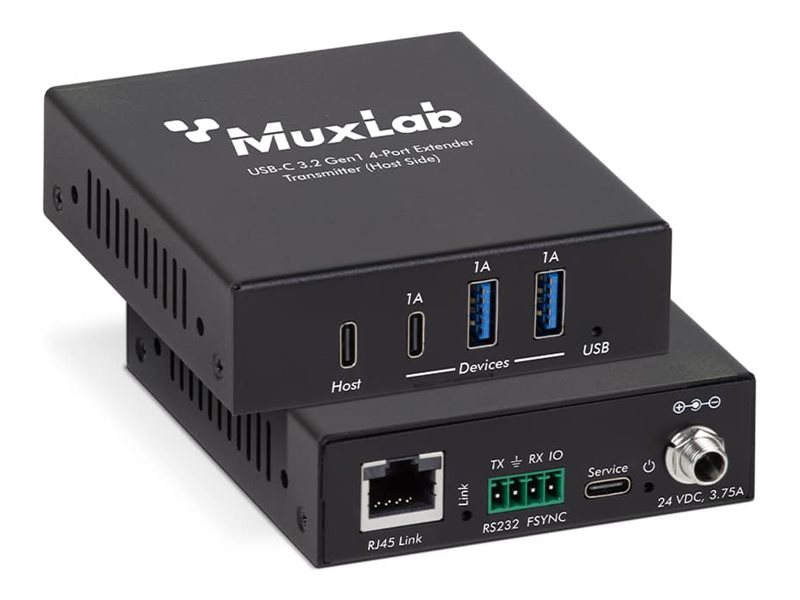

Transmitter and receiver - USB/serial extender - USB 3.2 Gen 1, HDBaseT - over CAT 6a - 4 ports - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | MuxLab - transmitter and receiver - USB/serial extender - USB 3.2 Gen 1, HDBaseT |
| Device Type | USB/serial extender |
| Ports Qty | 4 |
| Form Factor | External |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB 3.2 Gen 1, HDBaseT |
| Transmission Medium | CAT 6a |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB/serial extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB host (transmitter) - Type C ¦ 1 x USB 3.2 Gen 1 (transmitter output) - Type C ¦ 2 x USB 3.2 Gen 1 (transmitter output) - Type A ¦ 1 x HDBaseT output (transmitter) - RJ-45 ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix ¦ 1 x FSYNC (transmitter) - 1 pin Phoenix ¦ 1 x service (transmitter) - USB type C ¦ HDBaseT input (receiver) ¦ 2 x USB 3.2 Gen 1 (receiver output) - Type A ¦ 2 x USB 3.2 Gen 1 (receiver output) - Type C ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x FSYNC (receiver) - 1 pin Phoenix ¦ 1 x service (receiver) - USB type C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, IEC 61000-4-2 |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 1, HDBaseT |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 328 ft |
| Status Indicators | USB |
| Features | 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), metal housing |
| Compliant Standards | USB 3.2 Gen 1, USB 2.0, USB 1.1 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Receiver: 3.3 in x 3.9 in x 1 in / 9.7 oz ¦ Transmitter: 3.3 in x 3.9 in x 1 in / 9.3 oz |
