Document scanner - Contact Image Sensor (CIS) - Duplex - A4/Legal - 600 dpi x 600 dpi - ADF (100 sheets) - USB, Wi-Fi(ac)
| Main Specifications | |
|---|---|

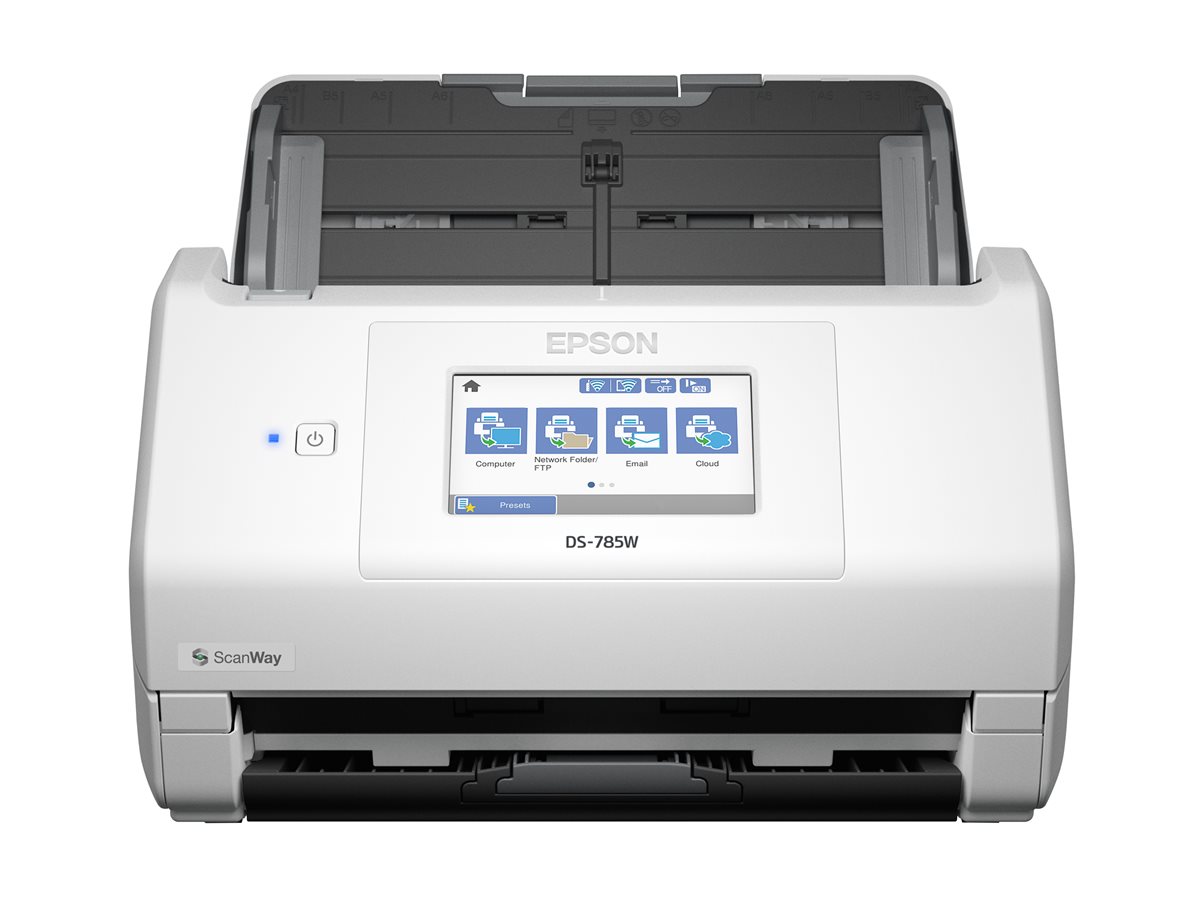

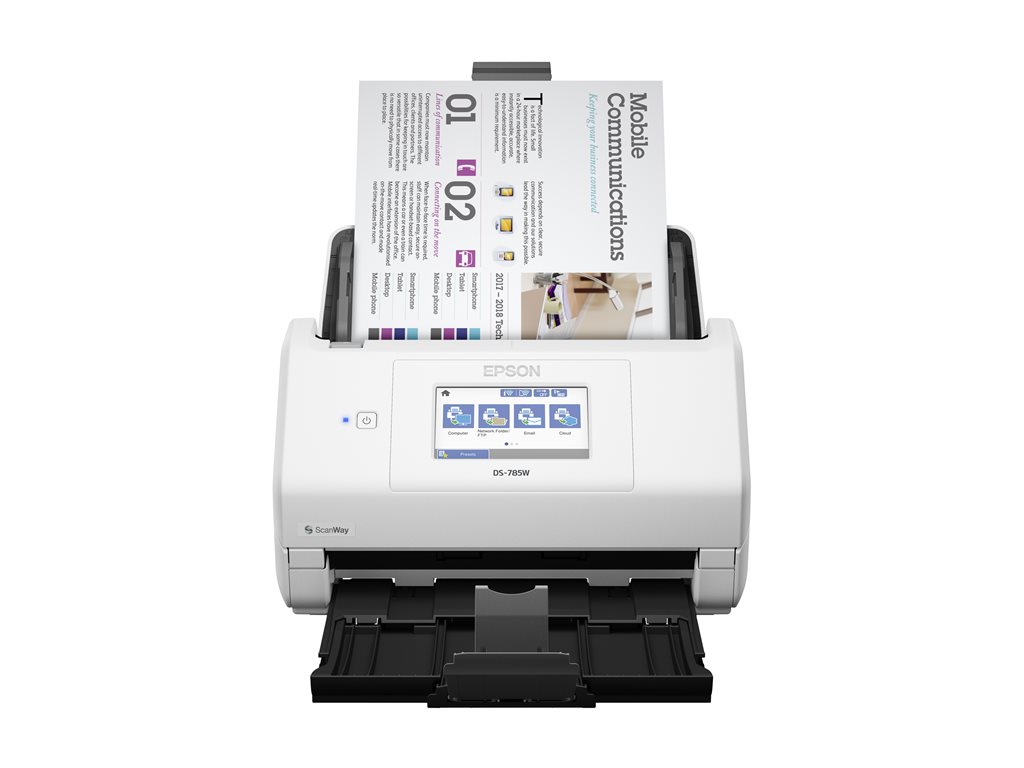

| Product Description | Epson DS-785W - document scanner - desktop - USB, Wi-Fi(ac) |
| Device Type | Document scanner - desktop |
| Interface Type | USB, Wi-Fi(ac) |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Light Source | RGB LED |
| Additional Functions | Scan to PC, scan to network folder, scan to FTP, scan to email, scan to cloud, scan to USB |
| Max Supported Document Size | Legal (8.5 in x 14.02 in)/A4 (8.27 in x 11.69 in) |
| Input Type | Color |
| Grayscale / Color Depth | 10-bit gray / 30-bit color |
| Grayscale / Color Depth (External) | 8-bit (256 gray levels) / 24-bit color |
| Optical Resolution | 600 dpi x 600 dpi |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Max Document Size | 8.5 in x 240 in |
| Automatic Duplexing | Yes |
| Supported Document Type | Plain paper, post card, business card, envelope, plastic card |
| Document Feeder Type | Automatic |
| Feeder Capacity | 100 sheets |
| Power | AC 120/230 V (50/60 Hz) |
| System Requirements | Apple MacOS X 10.9.5 or later, Apple macOS 11 or later, Windows 11 or later, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 or later |
| Dimensions (WxDxH) | 11.7 in x 8.3 in x 8.5 in |
| Weight | 8.16 lbs |
| General | |
| Type | Document scanner - desktop |
| Interface Type | USB, Wi-Fi(ac) |
| Additional Functions | Scan to PC, scan to network folder, scan to FTP, scan to email, scan to cloud, scan to USB |
| Max Supported Document Size | Legal (8.5 in x 14.02 in)/A4 (8.27 in x 11.69 in) |
| Expansion / Connectivity | |
| Interfaces Details | 2 x USB |
| Miscellaneous | |
| Compliant Standards | EMC, FCC Part15 Subpart B Class B (U.S.A.), CAN ICES(B)/NMB(B) |
| Media Handling | |
| Max Document Size | 8.5 in x 240 in |
| Supported Document Type | Plain paper, post card, business card, envelope, plastic card |
| Document Feeder Type | Automatic |
| Feeder Capacity | 100 sheets |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational (Standby) | 15 watt |
| Power Consumption Stand by | 7.4 watt |
| Power Consumption Sleep | 1.4 watt |
| Software / System Requirements | |
| Software Included | EPSON Scan 2, Epson Smart Panel, EPSON Document Capture Pro, EPSON Document Capture |
| OS Required | Apple MacOS X 10.9.5 or later, Apple macOS 11 or later, Windows 11 or later, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 or later |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 15 - 85% (non-condensing) |
| Scanner | |
| Input Type | Color |
| Grayscale Depth | 10-bit gray |
| Grayscale Depth (External) | 8-bit (256 gray levels) |
| Color Depth | 30-bit color |
| Color Depth (External) | 24-bit color |
| Optical Resolution | 600 dpi x 600 dpi |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Scan Mode | Single-pass |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Lamp / Light Source Type | RGB LED |
| Scanner Features | Face-down Feeding |
| Scan File Formats | JPEG, PDF, PDFA, Multi-PDF, TIFF, Multi-TIFF |
| Compliant Standards | TWAIN |
| Dimensions & Weight | |
| Width | 11.7 in |
| Depth | 8.3 in |
| Height | 8.5 in |
| Weight | 8.16 lbs |
