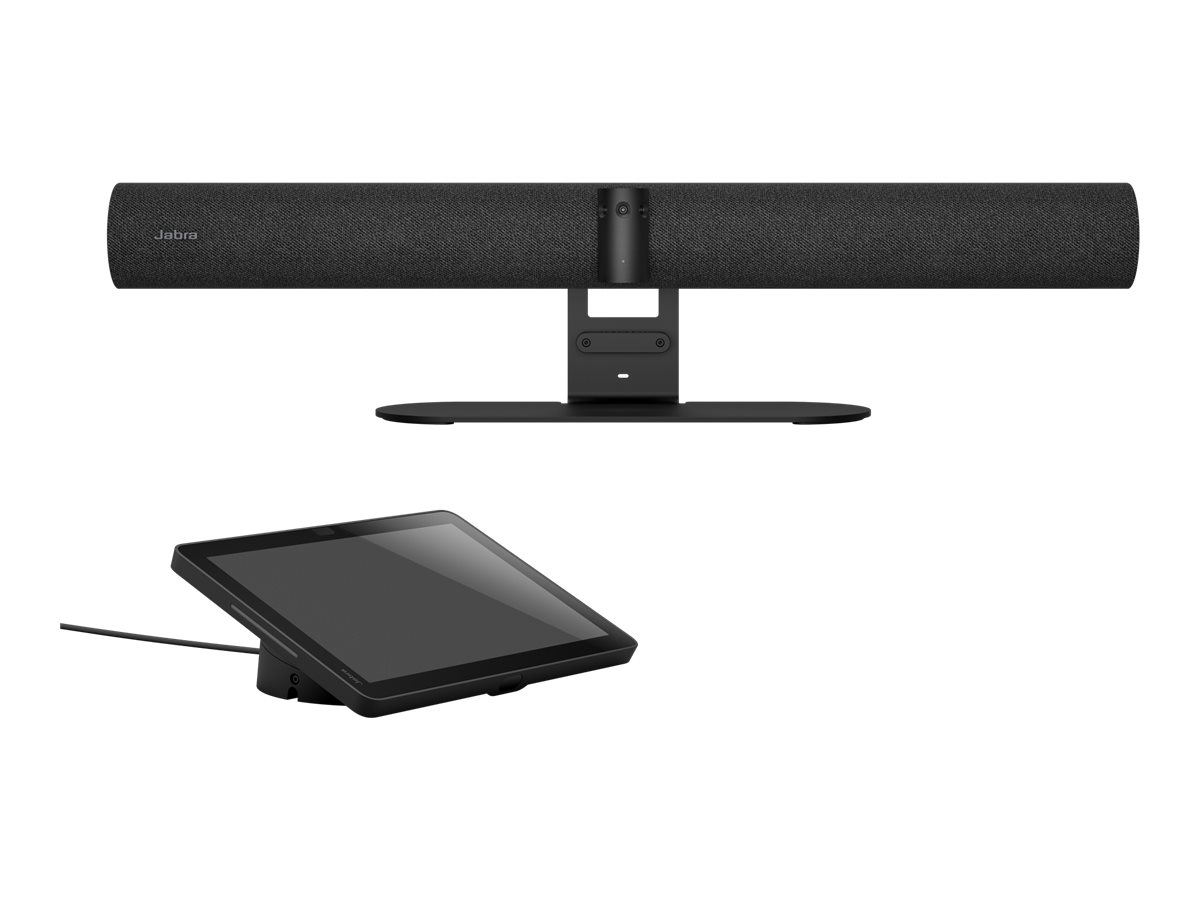

Conference camera (PanaCast 55 VBS video bar, touch controller)
| Main Specifications | |
|---|---|
| Product Description | Jabra PanaCast 55 VBS |
| Device Type | Conference camera |
| Kit Content | PanaCast 55 VBS video bar, touch controller |
| Localization | North America |
| Video Input | Digital video camera - SuperSpeed USB 3.0 |
| Audio Input | 8-microphone array - beamforming |
| Audio Output | Speaker(s) |
| Input Device | 10.1" touchscreen (wired) |
| Networking | Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | AC 100-240 V |
| System Requirements | Android 13 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Conference camera |
| Kit Content | PanaCast 55 VBS video bar, touch controller |
| Network Protocols | HTTPS, IPv4, IPv6 |
| Network Features | IEEE 802.3af |
| Dimensions & Weight Details | Video bar - Width 28.7 in Depth 5.7 in Height 3 in Weight 5 lbs ¦ Control unit - Width 9.8 in Depth 6.1 in Height 3.3 in Weight 33.8 oz |
| Built-in Devices | Microphone array, camera, speaker, CO2 sensor, proximity sensor, temperature sensor, humidity sensor, VOC sensor |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 - HDMI input ¦ 1 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x network - RJ-45 ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 6 ft |
| Included Accessories | Wall mount, power cable, privacy cover with sensor, cable management cover |
| Compliant Standards | IPv4, IPv6 |
| Networking | |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | HTTPs, DHCP, IPv4, IPv6 |
| Features | Automatic Media-Dependent Interface Crossover (MDIX), cable management, content sharing, security slot (Kensington security lock compatible), static IP mode, Simple Certificate Enrollment Protocol (SCEP), BYOD mode |
| Compliant Standards | Bluetooth 5.1, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power | |
| Power Device | Power supply - external |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| OS Required | Android 13 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 15 - 80% |
| Audio Output | |
| Type | Speaker(s) |
| Frequency Response | 80 - 20000 Hz |
| Audio Input | |
| Type | 8-microphone array - integrated |
| Microphone Operation Mode | Beamforming |
| Frequency Response | 100 - 16000 Hz |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wired |
| Features | 1920 x 1200 resolution, landscape orientation, PoE support, security slot (Kensington security lock compatible) |
| Video Input | |
| Type | Digital video camera (color) - desktop / wall mountable |
| Interface Type | SuperSpeed USB 3.0 |
| Digital Video Capture Resolution | 3840 x 1080 |
| Video Modes | 4K |
| Digital Zoom | 6 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Features | 180° field of view (horizontal), 54° field of view (vertical), 2 x 8 megapixels sensors, dual cameras, Intelligent-Zoom, Manual Pan-Tilt-Zoom, LED indicator, Live Streaming, people counting, automatic speaker tracking, firmware upgradable, security slot (Kensington security lock compatible), 11 m microphone pickup range, Virtual Director, Vivid HDR |
| Angular Field Of View (max, degree) | 180 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 41.9 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 6.9 in |
| Shipping Weight | 12.7 lbs |
