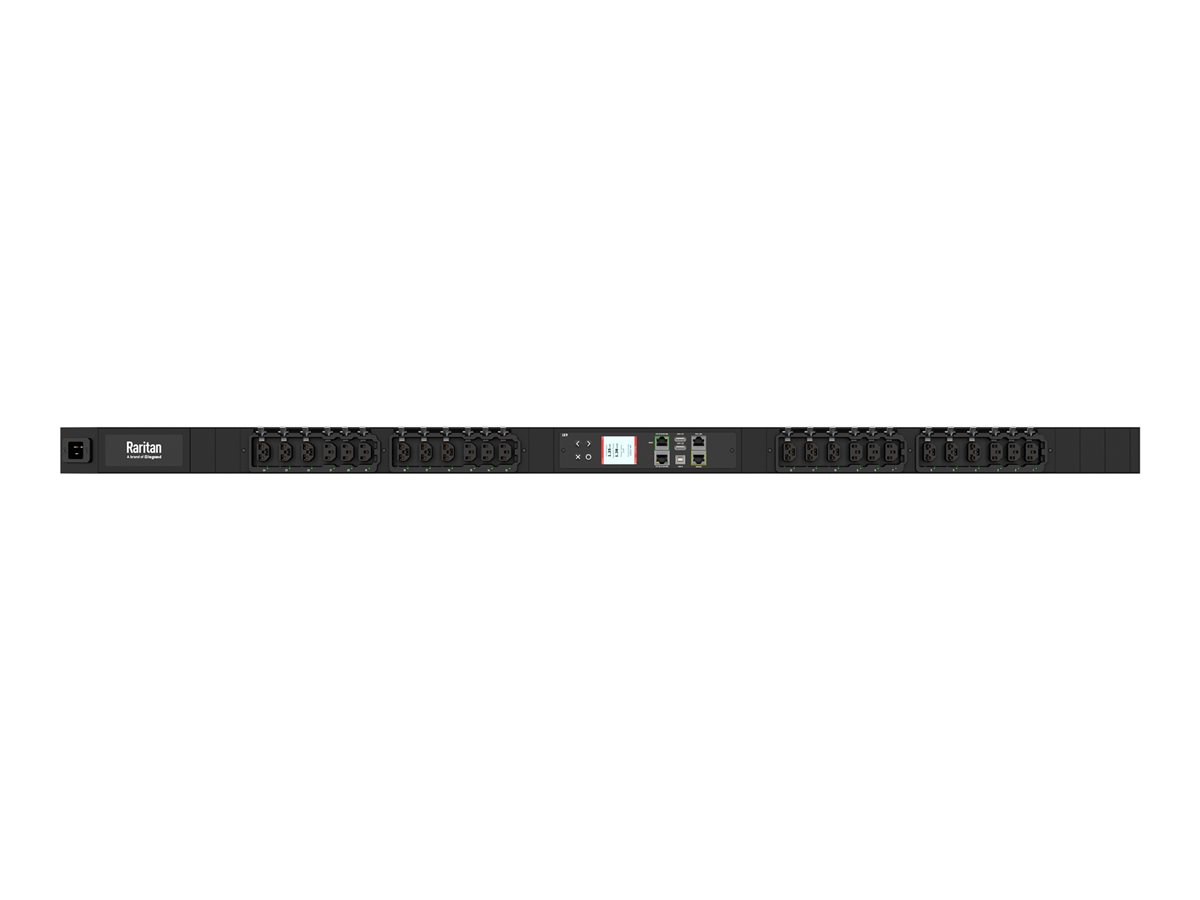

Power distribution unit (rack-mountable) - AC 230 V - 3800 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 Cx) - 0U - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-13A8C-C8E7A0 - power distribution unit - 3800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Weight | 6 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 230 V |
| Output Voltage | AC 100-240 V |
| Power Capacity | 3800 VA |
| Input Connectors | 1 x power IEC 60320 C20 |
| Output connectors | 12 x power IEC 60320 C13 10 A ¦ 12 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Color | Black |
| Dimensions (WxDxH) | 2.2 in x 2.6 in x 51.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x PDU link ¦ 1 x sensor ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Features | Powder-coated, extruded aluminum housing, tool-less button mount, bottom-front feed, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, replaceable controller, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, 16MB SPI Flash, 64MB DDR2 RAM, 16 A circuit breaker, 10kAIC breaker, locking outlets, Raritan SecureLock Ready |
| Compliant Standards | ISO 27001, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 100 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 12 x power IEC 60320 C13 10 A ¦ 12 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 100-240 V |
| Max Electric Current | 16 A |
| Power Capacity | 3800 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.6 in |
| Height | 51.1 in |
| Weight | 6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.8 in |
| Shipping Depth | 9.8 in |
| Shipping Height | 57.2 in |
| Shipping Weight | 10.8 lbs |
