SSD - encrypted - 8 TB - internal - 2.5" - SATA 6Gb/s - buffer: 8 GB - 256-bit AES - TCG Opal Encryption
| Main Specifications | |
|---|---|

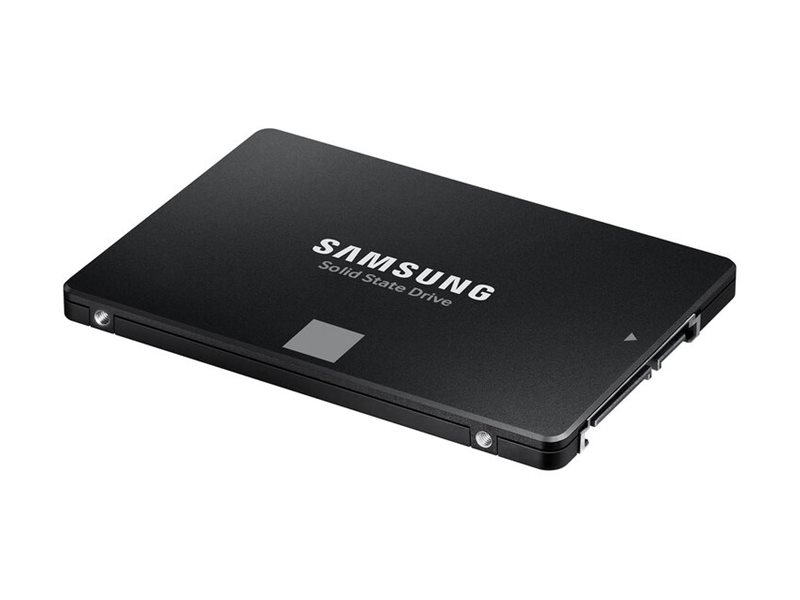

| Product Description | Samsung 870 EVO MZ-77E8T0B - SSD - 8 TB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 8 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 8 GB |
| Features | Samsung V-NAND TLC Technology, TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, TurboWrite Technology, S.M.A.R.T. |
| Dimensions (WxDxH) | 3.9 in x 2.8 in x 0.3 in |
| Weight | 1.69 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 8 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 8 GB |
| Features | Samsung V-NAND TLC Technology, TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, TurboWrite Technology, S.M.A.R.T. |
| Width | 3.9 in |
| Depth | 2.8 in |
| Height | 0.3 in |
| Weight | 1.69 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years / 4800 TBW |
| Miscellaneous | |
| Compliant Standards | IEEE 1667, WWN |
| Power | |
| Power Consumption | 2.2 watt (average) ¦ 2.6 watt (write) ¦ 40 mW (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Performance | |
| SSD Endurance | 4800 TB |
| Internal Data Rate | 560 MBps (read) / 530 MBps (write) |
| 4KB Random Write | 36000 IOPS |
| Maximum 4KB Random Write | 98000 IOPS |
| Maximum 4KB Random Read | 13000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Software & System Requirements | |
| Software Included | Samsung Magician Software, Samsung Data Migration |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
