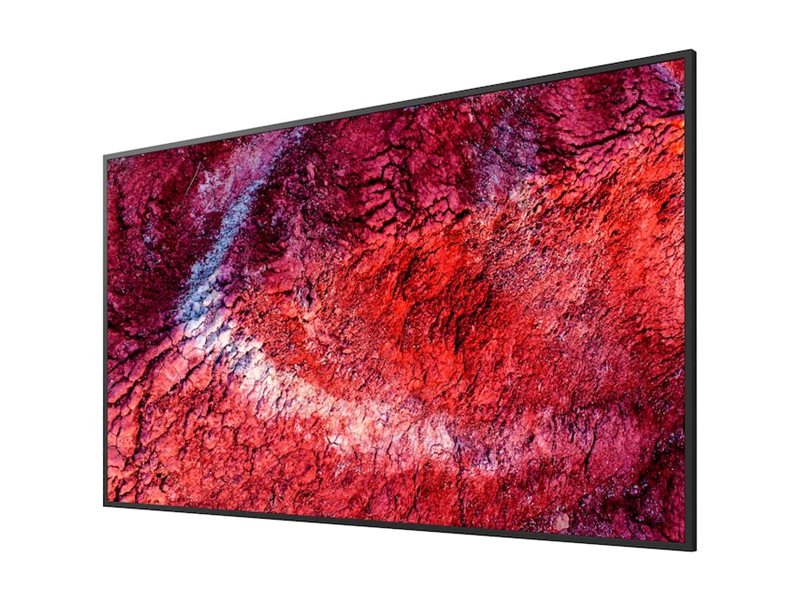

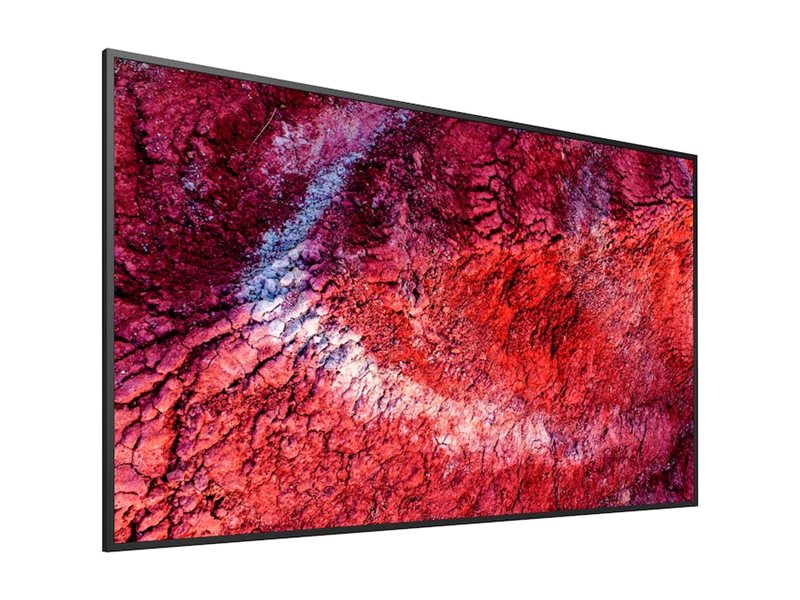

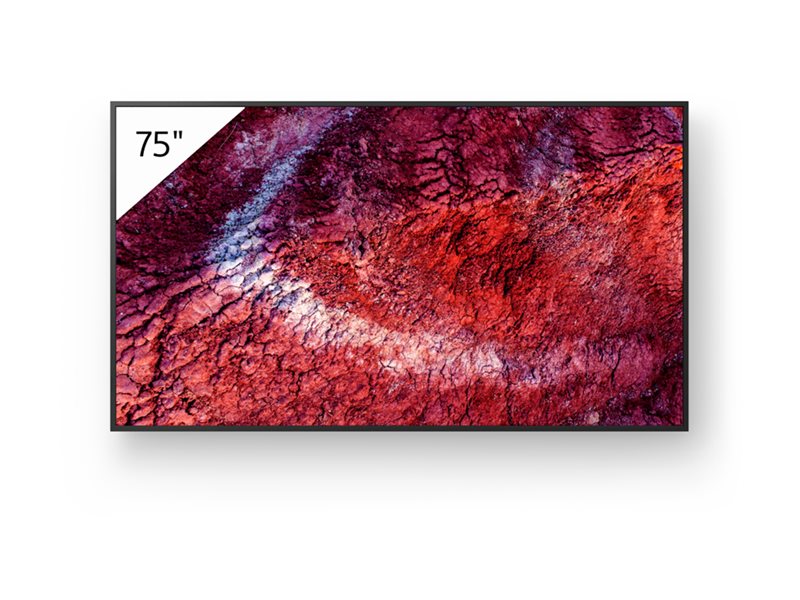

75" Diagonal Class BZ40P Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - HDR - Direct LED
| Main Specifications | |
|---|---|
| Product Description | Sony Bravia Professional Displays FW-75BZ40P BZ40P Series - 75" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2422732 |
| Diagonal Class | 75" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Input Video Formats | 480p, 576p, 720p, 1080i, 1080p, 2160p |
| HDR Format | HDR10 |
| HDR Technology | Hybrid Log-Gamma (HLG) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Technology | IPS |
| LCD Backlight Technology | Direct LED frame dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Real-Time Clock (RTC), HTML5 support |
| Picture Enhancements | 92% Color Gamut |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Voltage | AC 110-240 V |
| Energy Class | Class D |
| Power Consumption Operational | 258 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 66.3 in x 2.8 in x 37.9 in |
| Weight | 64.37 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2422732 |
| Energy Class | Class D |
| Energy Class (HDR) | Class E |
| Power Consumption Operational | 258 watt |
| Power Consumption SDR (On mode) | 84 kWh/1000h |
| Power Consumption HDR (On mode) | 106 kWh/1000h |
| Diagonal Class | 75" |
| Commercial Use | Yes - digital signage |
| Series | BZ40P Series |
| Platform | Android |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | Hybrid Log-Gamma (HLG) |
| Video Processor | XR |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Modes | Portrait mode, Pro Mode, power saving mode, landscape mode |
| Picture Enhancements | 92% Color Gamut |
| Dimensions | Without stand |
| Width | 66.3 in |
| Depth | 2.8 in |
| Height | 37.9 in |
| Weight | 64.37 lbs |
| Miscellaneous | |
| Compliant Standards | CEC, HDCP 2.3, EMC Class B, IP5X |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 110-240 V |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Display | |
| LCD Display Technology | IPS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED - frame dimming |
| Coating | Deep black, anti-glare, 47% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 600000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | Real-Time Clock (RTC), HTML5 support |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Auto Wake, sleep timer, Apple AirPlay support, Dynamic Backlight Control |
| Connections | |

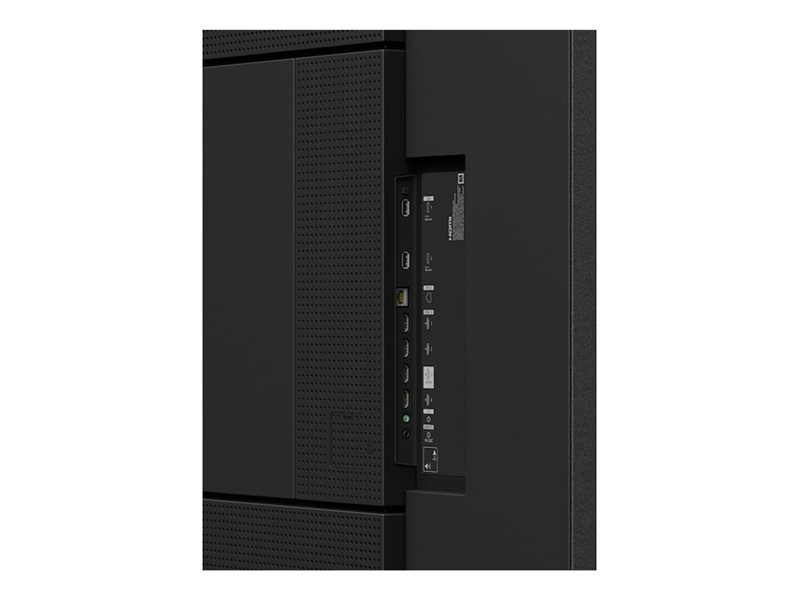

| Connector Type | 4 x HDMI - side ¦ 2 x USB - side ¦ LAN ¦ Headphones ¦ RS-232C |
| Video Features | |
| Input Video Formats | 480p, 576p, 720p, 1080i, 1080p, 2160p |
| Audio System | |
| Output Power / Total | 20 watt |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Connect & Share | IP Control |
| Stands & Mounts | |
| Stand | Included |
| Stand Design | Tabletop |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, HDV, AVCHD, AVC, MPEG-4, XAVCS, HEVC, AVI, Motion-JPEG, MOV, MKV, VP8, WebM, 3GPP, ASF |
| Supported Audio Formats | MP3, WMA, ASF, LPCM, WAV, AAC, FLAC (Free Lossless Audio Codec) |
| Supported Pictures Formats | JPEG |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 32 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
