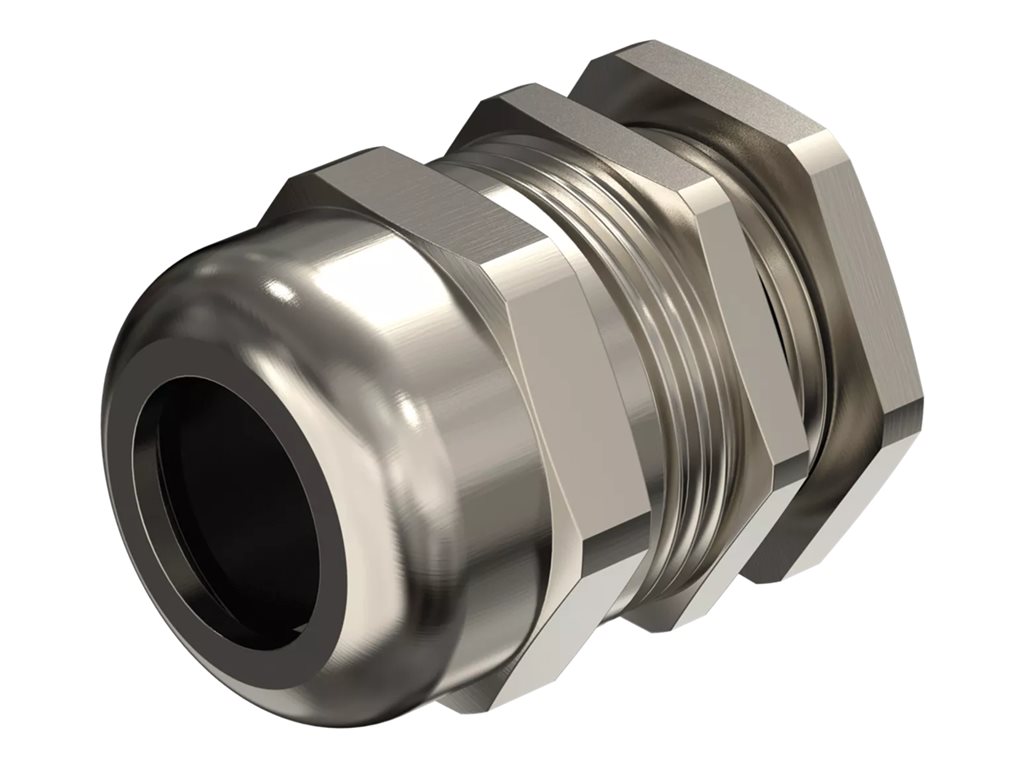

Cable gland - ex e, non-armored - TAA Compliant - for AXIS P1468-XLE; Q19 Series Q1961-XTE
| Main Specifications | |
|---|---|
| Product Description | AXIS TQ1952-E - cable gland - ex e, non-armored - TAA Compliant |
| Product Type | Cable gland |
| Product Material | Nickel plated brass |
| Weight | 1.48 oz |
| Compliant Standards | ATEX Directive, ATEX Groups IIC, ATEX Groups IIIC, ATEX/IECEx, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, IECEx, IECEx Groups IIC, IECEx Groups IIIC, IP66, IP67, IP68 |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Designed For | AXIS P1468-XLE; Q19 Series Q1961-XTE |
| General | |
| Product Type | Cable gland |
| Product Material | Nickel plated brass |
| Weight | 1.48 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | For M20x1.5 threads, for use with non-armored cable, for cable diameter 8 - 13 mm |
| Compliant Standards | ATEX Directive, ATEX Groups IIC, ATEX Groups IIIC, ATEX/IECEx, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, IECEx, IECEx Groups IIC, IECEx Groups IIIC, IP66, IP67, IP68 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Compatibility Information | |
| Designed For | AXIS P1468-XLE ¦ AXIS Q19 Series Q1961-XTE |
