Tiny Core i3 N305 / up to 3.8 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption 2, NVMe - Intel Graphics - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - IGEL Linux - monitor: none - keyboard: US English - eclipse black - Lenovo TopSeller
| Main Specifications | |
|---|---|
| Product Description | Lenovo V100q - tiny Core i3 N305 - 8 GB - SSD 256 GB - US English |
| Type | Personal computer - tiny |
| Localization | Region: United States |
| Processor | Intel Core i3 N305 (up to 3.8 GHz, (8-core) |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 8 GB (installed) / 16 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption 2, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Graphics shared video memory (UMA) |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6 |
| Keyboard | US English |
| Power | (50/60 Hz) |
| OS Provided | IGEL Linux |
| Color | Eclipse black |
| Dimensions (WxDxH) | 7 in x 7.2 in x 1.4 in |
| Weight | 31.39 oz |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 1 year - on-site |
| General | |
| Type | Personal computer |
| Product Form Factor | Tiny |
| Built-in Devices | Speaker |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Eclipse black |
| Localization | Region: United States |
| Expansion / Connectivity | |

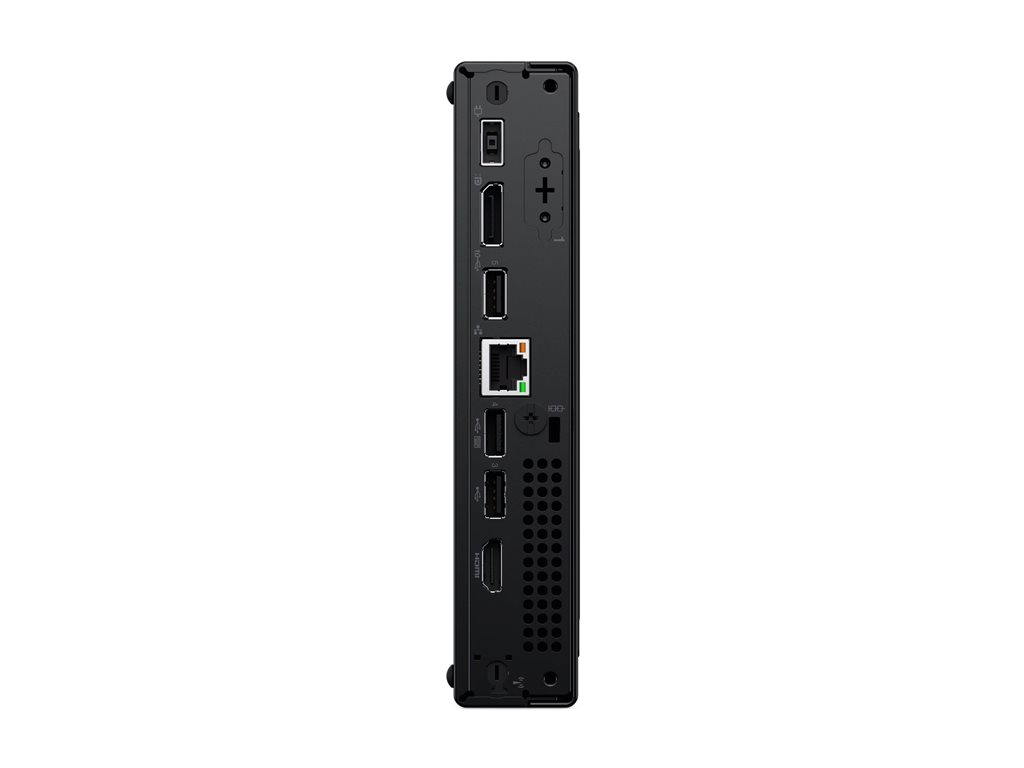

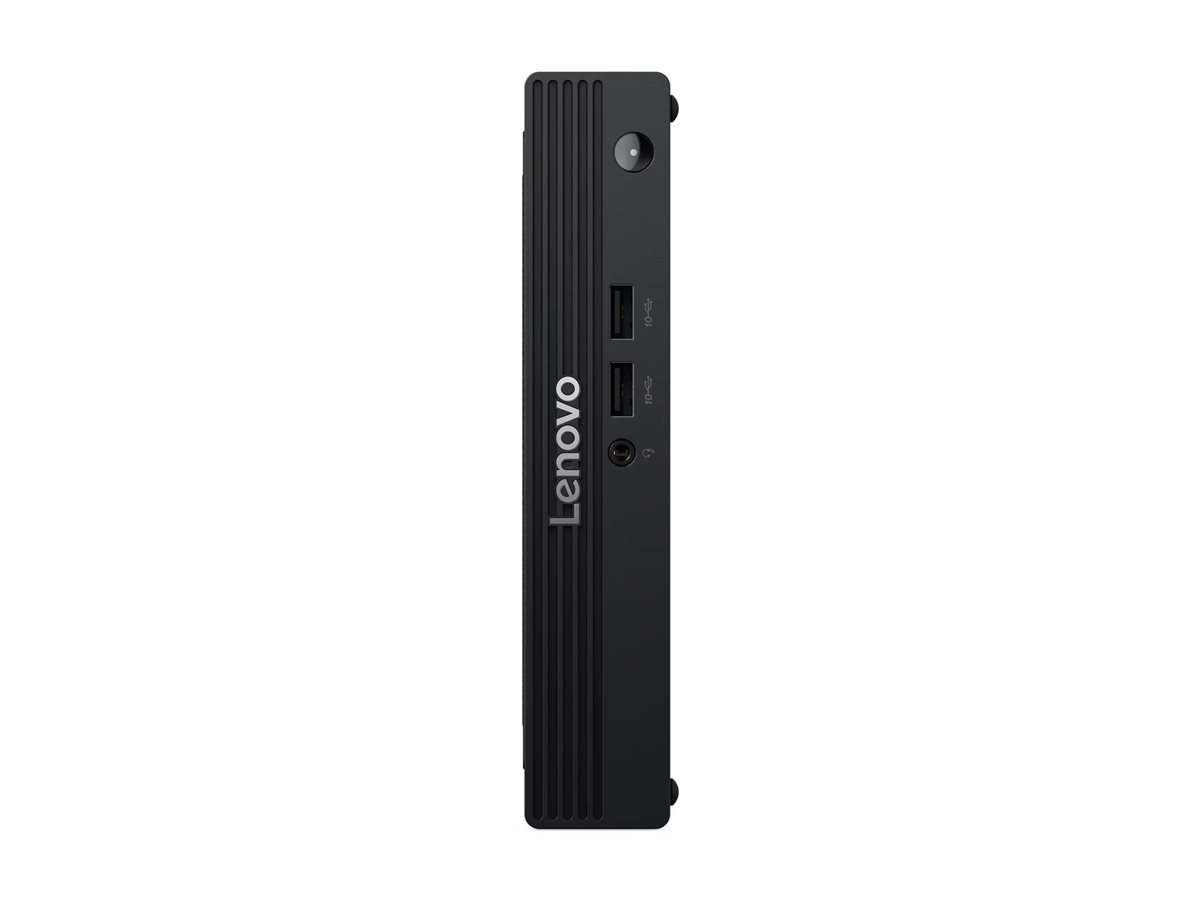

| Interfaces | 3 x USB 3.2 Gen 2 (2 front, 1 rear) ¦ 1 x headphones/microphone (1 front) ¦ 1 x USB 2.0 (1 rear) ¦ 1 x USB 2.0 (1 rear) (supports SmartPower On) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 1 x LAN (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, GREENGUARD, Energy-Related Products (ErP) Lot 3, VOC, Energy-Related Products (ErP) Lot 7 |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 8 GB (installed) / 16 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (total) / 0 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 203 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 watt |
| Efficiency | 89% |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | IGEL Linux |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 7.2 in |
| Height | 1.4 in |
| Weight | 31.39 oz |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | US English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i3 N305 |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 9.0 |
