Label printer - direct thermal / thermal transfer - - 300 dpi - up to 600 inch/min - USB, LAN, RS232 - blue, gray
| Main Specifications | |
|---|---|

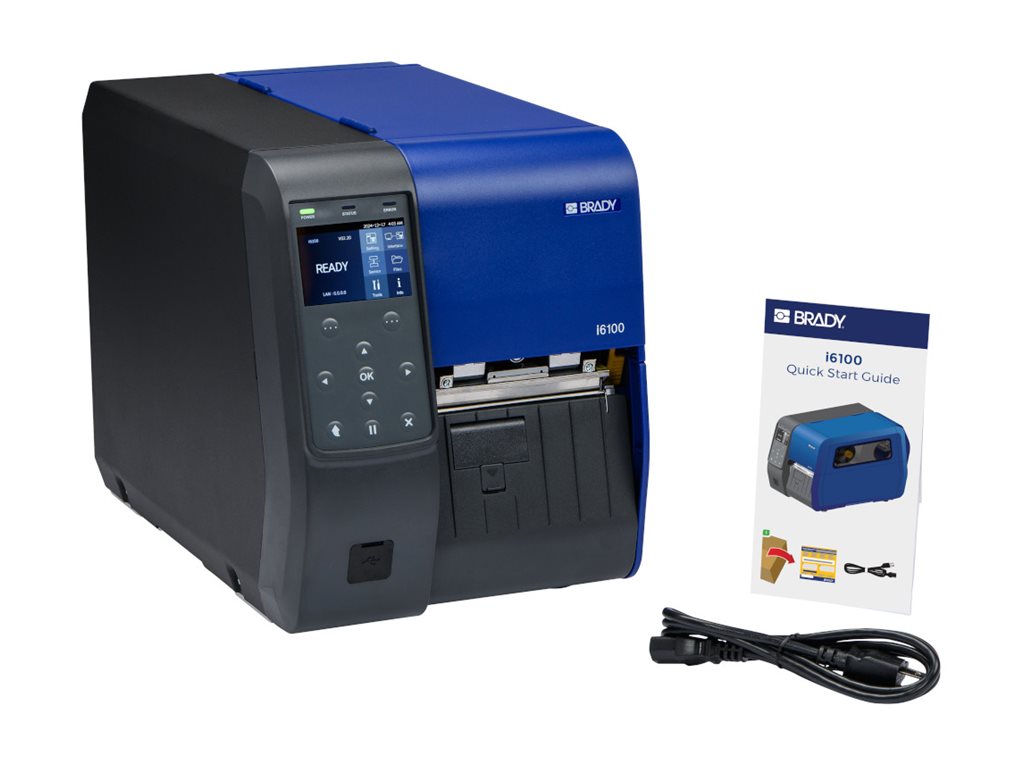

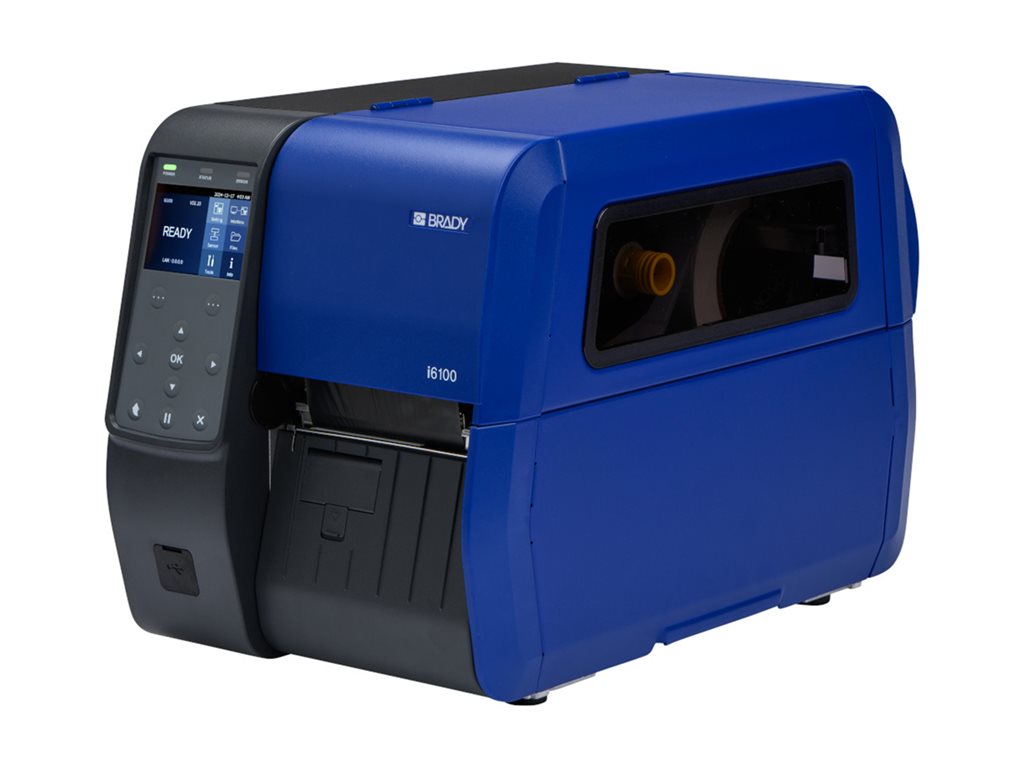

| Product Description | Brady i6100 - label printer - B/W - direct thermal / thermal transfer |
| Printer Type | Label printer - direct thermal / thermal transfer - B/W |
| Weight | 30.86 lbs |
| Localization | United States |
| Max Media Size | Roll (8 in) |
| Max Media Size (Custom) | 8 in |
| Max Resolution (B&W) | 300 dpi |
| Interface | USB, LAN, RS232 |
| RAM Installed (Max) | 512 MB |
| Flash Memory Installed (Max) | 512 MB |
| Language Simulation | ZPL |
| Barcodes | Aztec, Code 49, Composite Codes, Data Matrix, Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, Postnet, CODABLOCK, LOGMARS, IATA 2 of 5, Intelligent Mail Barcode, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5 |
| Media Type | Polyolefin labels, thermal label, continuous labels, labels, die-cut component labels |
| Features | Gap sensor, Black Mark sensor, notch sensor, open head sensor, reflective media sensor, ribbon end sensor, see-through sensor |
| Power | AC 100-240 V |
| Battery | Lithium manganese |
| System Requirements | Windows 10, Windows 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
| Enclosure Color | Blue, gray |
| Manufacturer Warranty | 5-year warranty |
| Dimensions (WxDxH) | 10.6 in x 19.3 in x 12.8 in |
| General | |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Enclosure Color | Blue, gray |
| Localization | United States |
| Expansion / Connectivity | |
| Connections | USB ¦ LAN ¦ RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Printer | |
| Built-in Devices | LCD display |
| Connectivity Technology | Wired |
| Interface | USB, LAN, RS232 |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL |
| Features | Gap sensor, Black Mark sensor, notch sensor, open head sensor, reflective media sensor, ribbon end sensor, see-through sensor |
| Barcodes | Aztec, Code 49, Composite Codes, Data Matrix, Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, Postnet, CODABLOCK, LOGMARS, IATA 2 of 5, Intelligent Mail Barcode, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5 |
| RAM | |
| RAM Installed (Max) | 512 MB |
| Media Handling | |
| Media Type | Polyolefin labels, thermal label, continuous labels, labels, die-cut component labels |
| Max Media Size | Roll (8 in) |
| Max Media Size (Custom) | 8 in |
| Media Sizes | Roll (8 in) |
| Max Printing Width | 4.16 in |
| Max Printing Length | 8 ft |
| Roll Core Diameter | 3 in |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Software / System Requirements | |
| OS Required | Windows 10, Windows 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Battery | |
| Type | Lithium manganese |
| Flash Memory | |
| Flash Memory | 512 MB |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 19.3 in |
| Height | 12.8 in |
| Weight | 30.86 lbs |
