KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - KVM / audio / USB switch - 4 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Performance | Data transfer rate: 5 Gbps |
| Features | Picture in Picture function, quad view, Pushbutton/Hotkey switching, seamless switching, 4:4:4 chroma subsampling support, aluminum/steel housing, mouse roaming, video mode switch, wide screen supported, 4K60Hz support |
| Compliant Standards | USB 3.2 Gen 1 |
| Power | AC 100-240 V 1 A |
| Dimensions (WxDxH) | 8.7 in x 5.1 in x 1.6 in |
| Weight | 2.31 lbs |
| Color | Black |
| System Requirements | Apple MacOS, Linux, Windows |
| Localization | Australia, New Zealand, North America, United Kingdom, Europe |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Data transfer rate: 5 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Picture in Picture function, quad view, Pushbutton/Hotkey switching, seamless switching, 4:4:4 chroma subsampling support, aluminum/steel housing, mouse roaming, video mode switch, wide screen supported, 4K60Hz support, Auto Scan mode |
| Compliant Standards | USB 3.2 Gen 1 |
| Status Indicators | Port status, host, status |
| Expansion / Connectivity | |

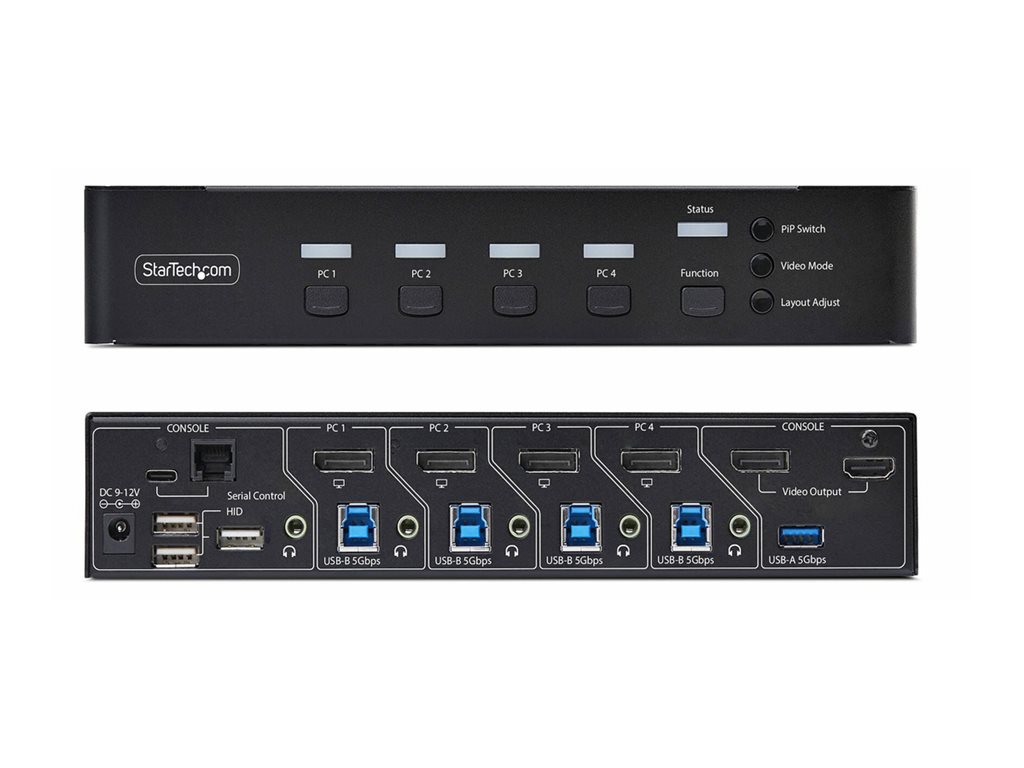

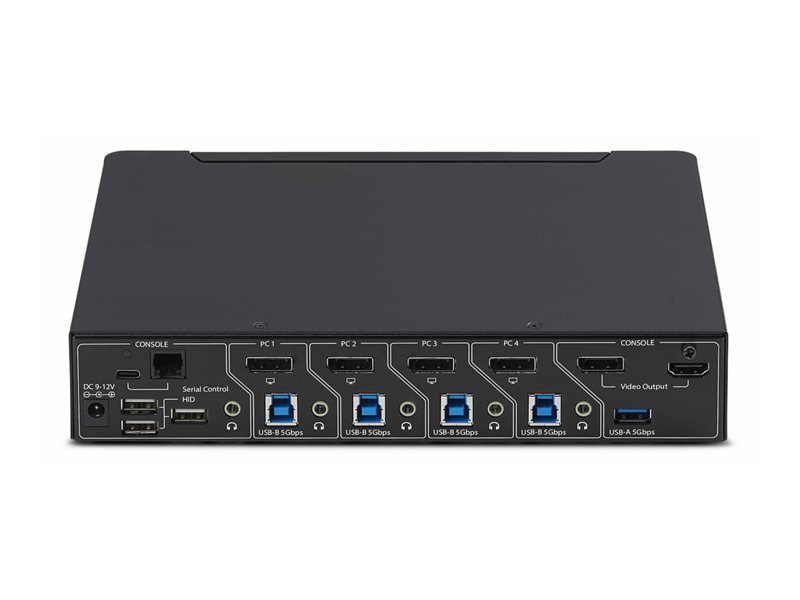

| Interfaces | 3 x USB 2.0 Type A console ¦ 1 x USB 3.2 Gen 1 Type A console ¦ 1 x audio output phone stereo 3.5 mm ¦ 1 x DisplayPort output console ¦ 1 x HDMI output console ¦ 1 x USB 2.0 Type C ¦ 1 x serial RJ-11 ¦ 4 x DisplayPort input host ¦ 4 x USB 3.2 Gen 1 input Type B host ¦ 4 x audio input phone stereo 3.5 mm host |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | Rubber feet set |
| MTBF | 130,000 hours |
| Compliant Standards | FCC, RoHS, WEEE, DisplayPort 1.2 |
| TAA Compliant | Yes |
| Localization | Australia, New Zealand, North America, United Kingdom, Europe |
| Power | |

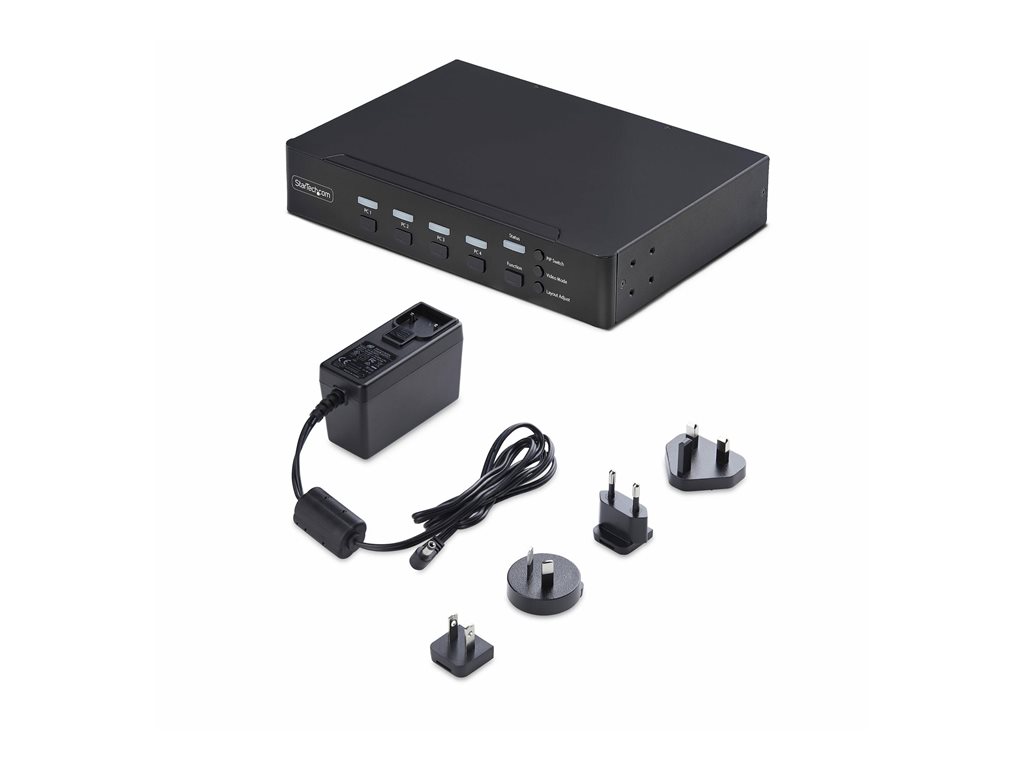

| Power Device | External power adapter |
| Power Provided | DC 12 V - 3 A |
| Voltage Required | AC 100-240 V |
| Electric Current Required | 1 A |
| Power Consumption Operational | 36 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 5.1 in |
| Height | 1.6 in |
| Weight | 2.31 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.4 in |
| Shipping Depth | 9.3 in |
| Shipping Height | 3 in |
| Shipping Weight | 3.53 lbs |
