Video conferencing device - power adapter included
| Main Specifications | |
|---|---|

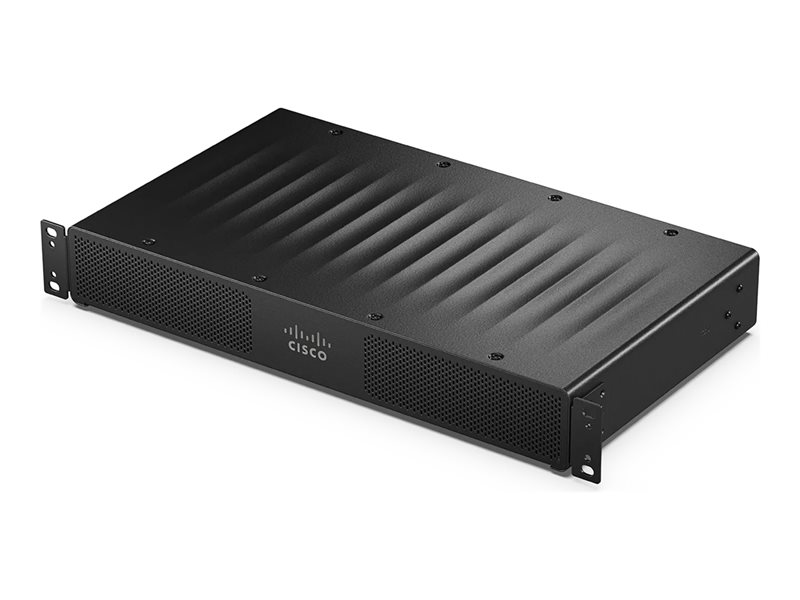

| Product Description | Cisco Webex Codec Pro G2 - video conferencing device - power adapter included |
| Device Type | Video conferencing device |
| VoIP Protocols | H.323, SIP |
| Codec | H.264, H.265, H.263, G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
| Dimensions (WxDxH) | 17.1 in x 9.9 in x 2.6 in |
| Weight | 6.17 lbs |
| Video Input | HDMI input, USB, 10Gb Ethernet, Ethernet 1000 |
| Video Output | Codec board |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | AC 100-240 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video conferencing device |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
| Video Codecs | H.264, H.265, H.263 |
| Security | H.235 v3, 128-bit AES, 256-bit AES, WPA3TM, WPA3-Enterprise |
| Network Protocols | NTP, DHCP, IEEE 802.1Q, SSH, HTTP, HTTPS |
| Width | 17.1 in |
| Depth | 9.9 in |
| Height | 2.6 in |
| Weight | 6.17 lbs |
| Built-in Devices | Status LED, reset switch |
| Expansion / Connectivity | |
| Interfaces | 2 x antenna - Wi-Fi ¦ 8 x network - Ethernet 1000Base-T (PoE++) - RJ-45 ¦ 1 x network - 10Gb Ethernet - RJ-45 ¦ 1 x network - Ethernet - RJ-45 ¦ 3 x audio / video - HDMI output ¦ 5 x audio / video - HDMI input ¦ 2 x audio out ¦ 4 x audio in ¦ 1 x USB-C 3.0 ¦ 2 x USB-A 3.0 ¦ 1 - GPIO - 4 pin Euroblock ¦ 1 x USB - Micro-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 1 year ¦ Limited warranty - advance parts replacement - 10 days |
| Miscellaneous | |
| Compliant Standards | HDCP 2.3, RoHS, FCC, WEEE, Directive 2014/53/EU, Directive 2014/35/EU, Directive 2011/65/EU, Directive 2002/96/EU, NRTL, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPv6, NTP, IPv4 |
| Features | 120W PoE power budget, AV Over IP, 8K resolution support, 5K resolution support, Quality of Service (QoS), DiffServ support, SRTP support, administrator's password, SSH support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Capacity | Number of IP cameras: up to 5 |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH |
| Video Input | |
| Interface Type | HDMI input, USB, 10Gb Ethernet, Ethernet 1000 |
| Digital Video Capture Resolution | 1920 x 1080, 3840 x 2160 |
| Video Modes | 5K, 8K |
| Features | Multi Camera Control, AI Engine |
| Video Output | |
| Type | Codec board |
| Supported Display Graphics | HDTV (1920x1080), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
