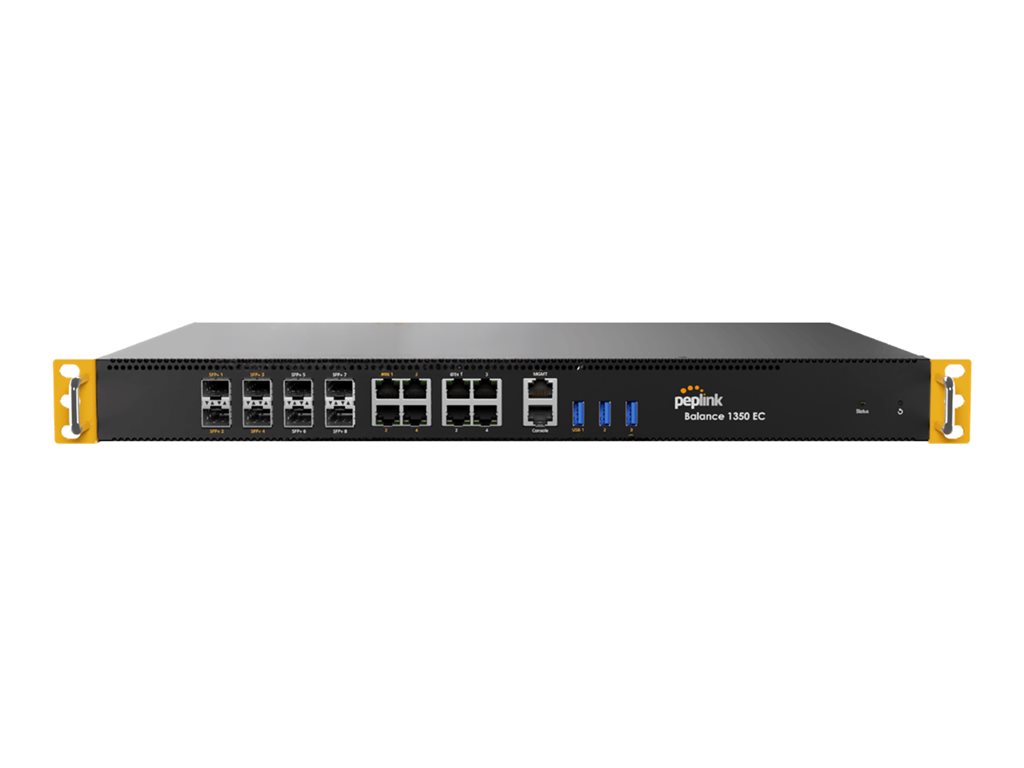

Router 1GbE - WAN ports: 8 - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | PePLink Balance 1350 EC - router - rack-mountable - TAA Compliant |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| WAN Ports Qty | 8 |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Throughput: 25 Gbps ¦ VPN throughput: 2 Gbps |
| Capacity | Recommended users: 5000 - 10000 ¦ Number of PepVPN/SpeedFusion Peers: 1000 ¦ Maximum number of access points: 500 |
| Network / Transport Protocol | PPPoE, DHCP, DNS, HTTP, IPv6, DDNS, PPTP, L2TP, OpenVPN, IPSec |
| Routing Protocol | Static IP routing, GRE, BGP, RIP-2, OSPFv2, Bounjour |
| Remote Management Protocol | Syslog, CLI, SNMP 1, SNMP 3, SNMP 2c |
| VoIP Protocols | SIP ALG, H.323 |
| Features | DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, DoS attack prevention, site-site IPsec VPN, hot failover, PSK, dynamic routing, OpenVPN server, GRE VPN tunnels, Advanced QoS, NAT support, port forwarding, Captive Portal, DNS support, CLI management, InControl Cloud Management, e-mail notification, ground points, drop-in mode, High Availability |
| Compliant Standards | UPnP, IEEE 802.3ad (LACP) |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.2 in x 11.8 in x 1.7 in |
| Weight | 12.04 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Throughput: 25 Gbps ¦ VPN throughput: 2 Gbps |
| Capacity | Recommended users: 5000 - 10000 ¦ Number of PepVPN/SpeedFusion Peers: 1000 ¦ Maximum number of access points: 500 |
| Network / Transport Protocol | PPPoE, DHCP, DNS, HTTP, IPv6, DDNS, PPTP, L2TP, OpenVPN, IPSec |
| Routing Protocol | Static IP routing, GRE, BGP, RIP-2, OSPFv2, Bounjour |
| Remote Management Protocol | Syslog, CLI, SNMP 1, SNMP 3, SNMP 2c |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | X.509 certificates, LDAP, RADIUS, Active Directory |
| Features | DHCP server, DHCP reservation, DNS proxy, VLAN support, load balancing, DoS attack prevention, site-site IPsec VPN, hot failover, PSK, dynamic routing, OpenVPN server, GRE VPN tunnels, Advanced QoS, NAT support, port forwarding, Captive Portal, DNS support, CLI management, InControl Cloud Management, e-mail notification, ground points, drop-in mode, High Availability |
| Compliant Standards | UPnP, IEEE 802.3ad (LACP), FCC, RoHS |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 4 x 10Gb Ethernet - SFP+ ¦ WAN / LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 4 x 10Gb Ethernet - SFP+ ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 3 x 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Rubber feet set |
| Cables Included | 2 x power cable |

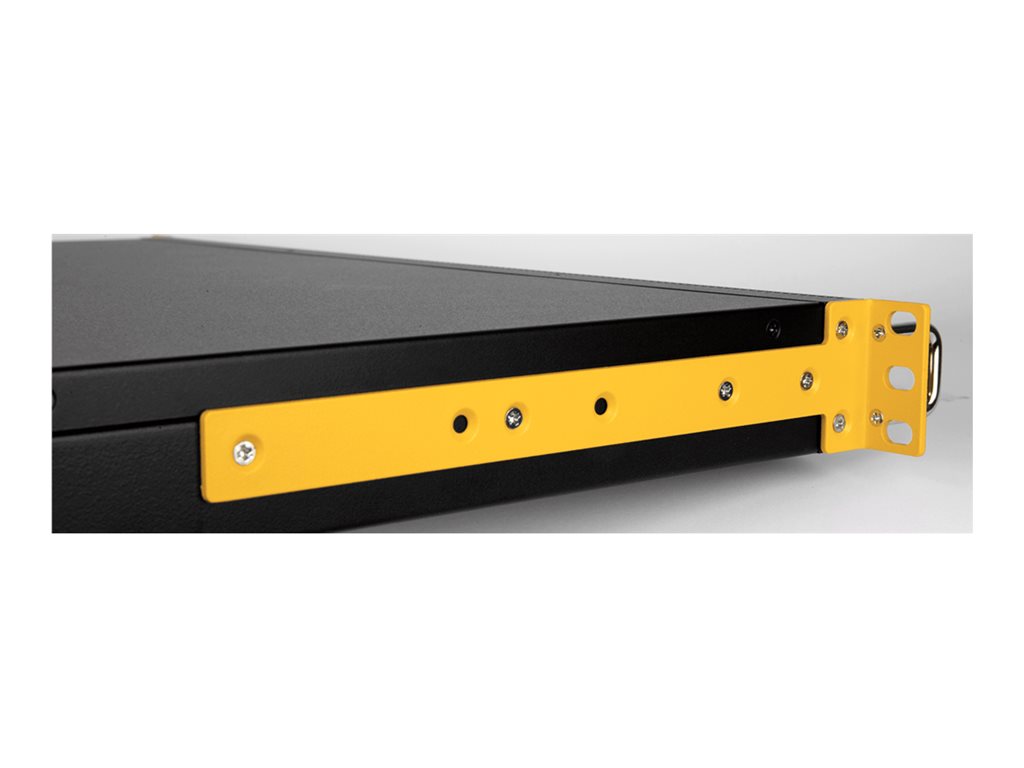

| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Power | |

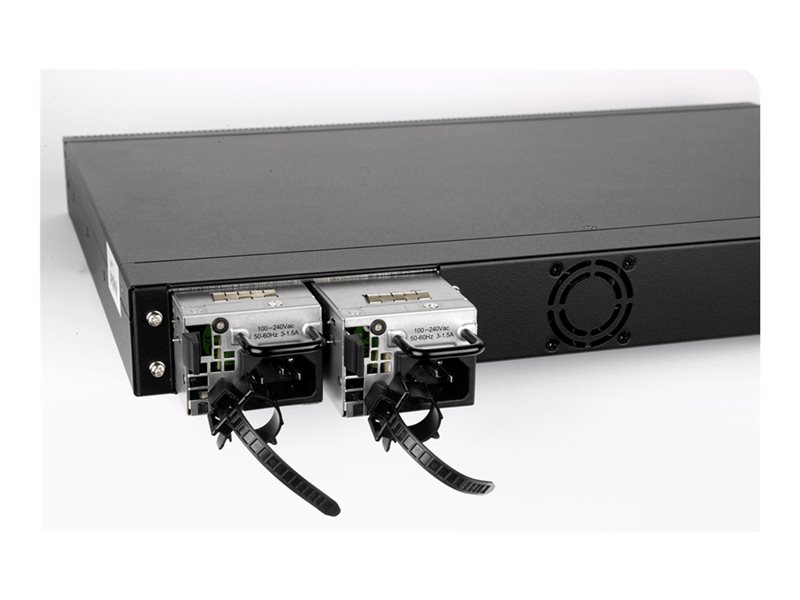

| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 12.04 lbs |
| IP Telephony | |
| VoIP Protocols | SIP ALG, H.323 |
