Antenna - cellular, Wi-Fi, navigation - surface mountable, pole mount, magnetic mountable, vehicle roof mountable
| Main Specifications | |
|---|---|

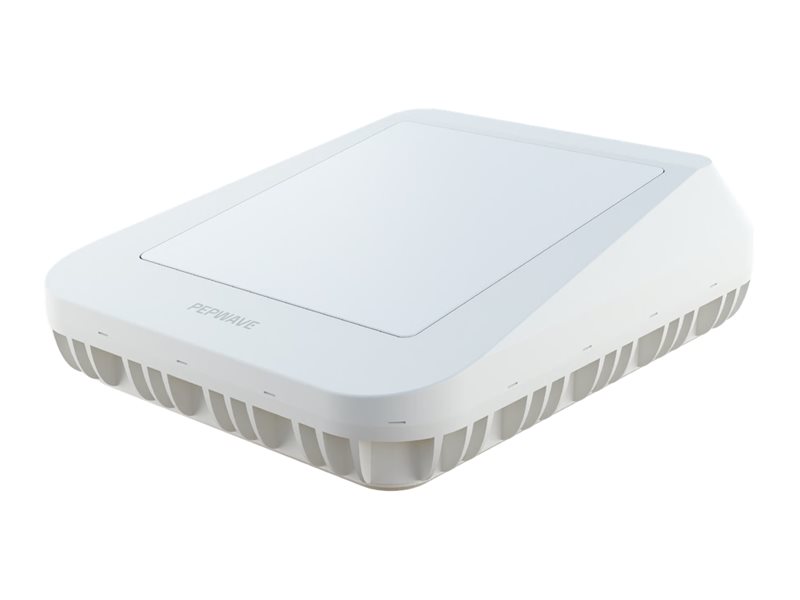

| Product Description | Peplink MAX S - antenna |
| Device Type | Antenna - active (GPS) |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Surface mountable, pole mount, magnetic mountable, vehicle roof mountable |
| Dimensions (WxDxH) | 14.5 in x 17.6 in x 5.3 in |
| Compatibility | Wi-Fi, 5G, LTE, GNSS |
| Frequency Range | 617 - 960 MHz, 1410 - 2700 MHz, 3300 - 4400 MHz, 5000 - 6000 MHz, 2400 - 2500 MHz, 1575 - 1602 MHz |
| Amplifier | 27dB |
| Features | VSWR < 3, linear polarization, IP67, RoHS, REACH, UL 746C |
| General | |
| Product Type | Antenna - active (GPS) |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Surface mountable, pole mount, magnetic mountable, vehicle roof mountable |
| Width | 14.5 in |
| Depth | 17.6 in |
| Height | 5.3 in |
| Product Material | UV-stabilized polycarbonate, aluminum base |
| Miscellaneous | |
| Cables Included | 1 x Power over Ethernet (PoE) cable - 3 ft ¦ 1 x network cable - 7.9 in ¦ 1 x power cable - 3.9 in |
| Included Accessories | 3M double sided adhesive, 2 protective caps, 2 port plugs, cable connector, screws, cable gland, L-type mounting bracket |
| Power | |
| Power Device | Power adapter / PoE |
| Voltage Required | 3.3 V |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 in |
| Shipping Depth | 18 in |
| Shipping Height | 7.3 in |
| Antenna | |
| Compatibility | Wi-Fi, 5G, LTE, GNSS |
| Frequency Range | 617 - 960 MHz, 1410 - 2700 MHz, 3300 - 4400 MHz, 5000 - 6000 MHz, 2400 - 2500 MHz, 1575 - 1602 MHz |
| Impedance | 50 Ohm |
| Antenna Amplifier Gain | 27dB |
| Max Power | 10 Watt |
| Features | VSWR < 3, linear polarization, IP67, RoHS, REACH, UL 746C |
| Mounting Kit | Included |
| Connector Provided | |
| Type | 4 x cellular antenna - SMA (male) ¦ 2 x Wi-Fi antenna - RP-SMA (male) ¦ 1 x GPS antenna - SMA (male) |
