Antenna - cellular, Wi-Fi, navigation - surface mountable, pole mount
| Main Specifications | |
|---|---|

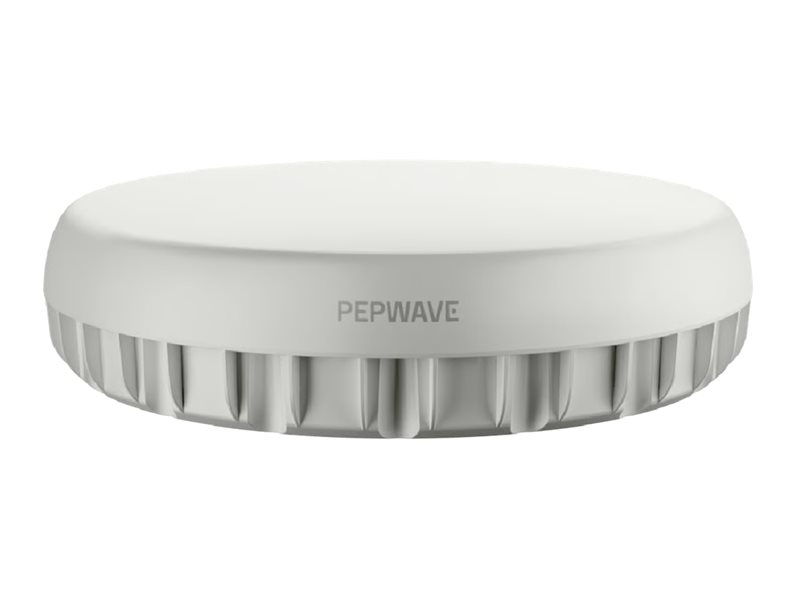

| Product Description | Peplink MAX Duo - antenna |
| Device Type | Antenna - active (GPS) |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Surface mountable, pole mount |
| Dimensions (WxDxH) | 16.8 in x 16.8 in x 4.8 in |
| Color | White |
| Compatibility | Wi-Fi, 5G, LTE, GNSS |
| Frequency Range | 600 - 6000 MHz, 617 - 960 MHz, 1410 - 2700 MHz, 3300 - 4400 MHz, 5000 - 6000 MHz, 2400 - 2500 MHz, 1575 - 1602 MHz |
| Amplifier | 27dB |
| Features | IP67, rugged, waterproof, flame retardant, UV resistant, MIL-STD-810F, VSWR < 2.5, RoHS, REACH, UL 746C |
| General | |
| Product Type | Antenna - active (GPS) |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Surface mountable, pole mount |
| Width | 16.8 in |
| Depth | 16.8 in |
| Height | 4.8 in |
| Color | White |
| Product Material | UV-stabilized polycarbonate |
| Miscellaneous | |
| Cables Included | 1 x network cable - 9.8 in ¦ 1 x network cable - 1.2 ft |
| Included Accessories | L-type mounting bracket, screws, 2 protective caps, 3M double sided adhesive, cable gland |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 in |
| Shipping Depth | 25.5 in |
| Shipping Height | 16.5 in |
| Antenna | |
| Compatibility | Wi-Fi, 5G, LTE, GNSS |
| Frequency Range | 600 - 6000 MHz, 617 - 960 MHz, 1410 - 2700 MHz, 3300 - 4400 MHz, 5000 - 6000 MHz, 2400 - 2500 MHz, 1575 - 1602 MHz |
| Impedance | 50 Ohm |
| Antenna Amplifier Gain | 27dB |
| Max Power | 10 Watt |
| Features | IP67, rugged, waterproof, flame retardant, UV resistant, MIL-STD-810F, VSWR < 2.5, RoHS, REACH, UL 746C |
| Mounting Kit | Included |
| Connector Provided | |
| Type | 5 x cellular antenna - SMA (male) ¦ 2 x Wi-Fi antenna - RP-SMA (male) ¦ 1 x GPS antenna - SMA (male) |
