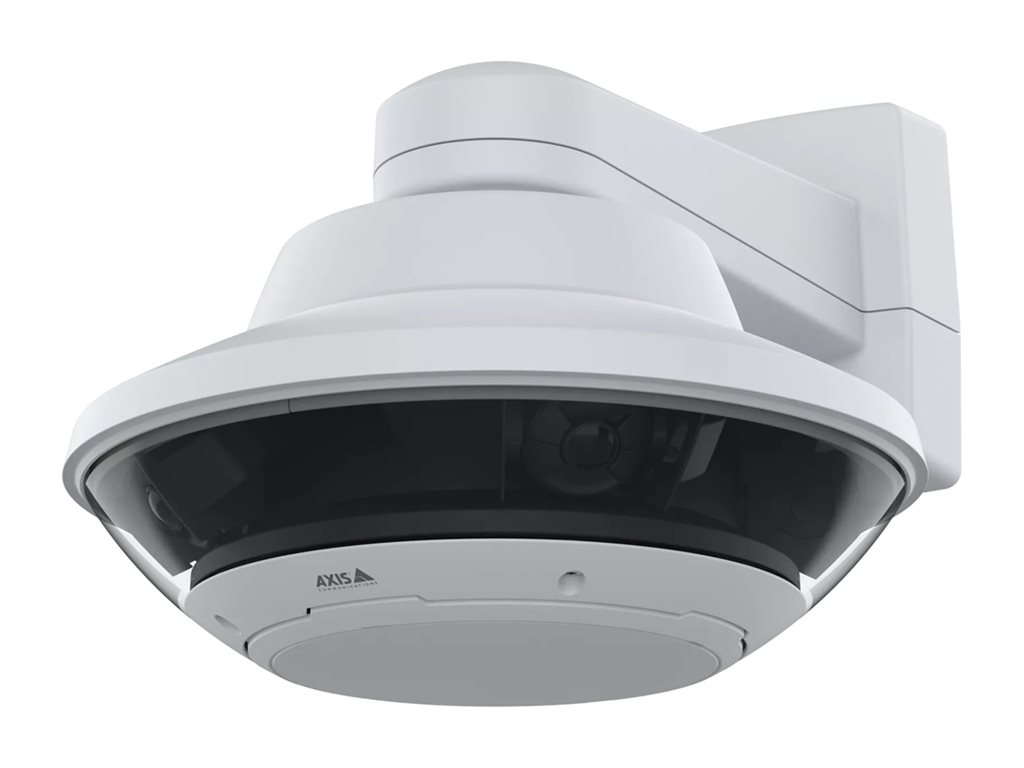

Panoramic camera - PTZ - dome - outdoor - vandal / weatherproof - color (Day&Night) - 4 x 5 MP - 2592 x 1944 - H.264, H.265 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS Q60 Series Q6020-E - panoramic camera - dome - TAA Compliant |
| Device Type | Panoramic camera - pan / tilt / zoom - dome - outdoor - vandal / weatherproof |
| Color | NCS S 1002-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/1.7" - 4 x 5 MP |
| Minimum Illumination | 0.06 lux - color ¦ 0.03 lux - B&W |
| Focal Length | 3.7 mm |
| Focus Adjustment | Automatic |
| Features | Wide Dynamic Range (WDR), Lightfighter technology, remote focus, Zipstream technology, deep learning processing unit (DLPU), AXIS Object Analytics, Metadata, Axis Edge Vault |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -58 °F - 131 °F |
| General | |
| Device Type | Panoramic camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Localization | Argentina, Australia, China, Europe, India, United Kingdom |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Color | NCS S 1002-B |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 131 °F |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Minimum Illumination | 0.06 lux - color ¦ 0.03 lux - B&W |
| Digital Video Capture Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Features | Wide Dynamic Range (WDR), Lightfighter technology, remote focus, Zipstream technology, deep learning processing unit (DLPU), AXIS Object Analytics, Metadata, Axis Edge Vault |
| Lens Construction | |
| Focal Length | 3.7 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 360 |
| Vertical Field of View (degree) | 84 |
| Image Sensor | |
| Type | 4 x 5 MP PS CMOS 1/1.7" |
