Network surveillance camera - PTZ - outdoor - vandal / weatherproof - color (Day&Night) - 3840 x 2160 - 4K - auto iris - motorized - GbE - H.264B, H.264M, H.264H, H.265, MJPEG - High PoE Class 6
| Main Specifications | |
|---|---|

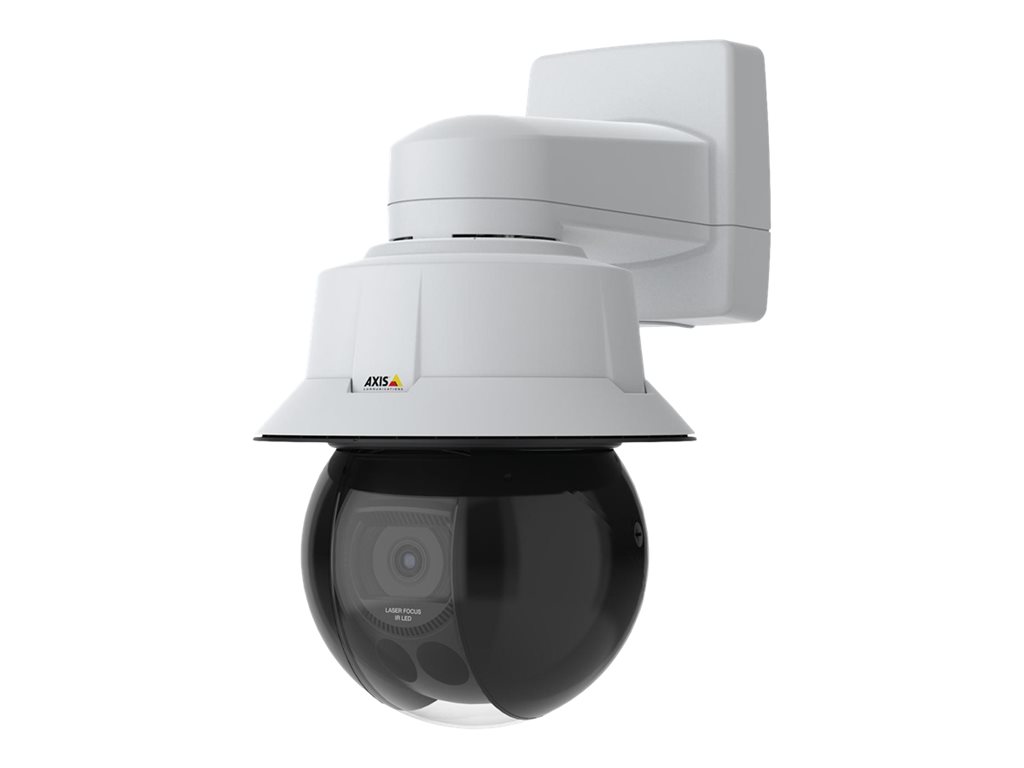

| Product Description | AXIS Q6318-LE 50 Hz - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Dimensions (WxDxH) | 7.6 in x 7.6 in x 10.3 in |
| Weight | 10.58 lbs |
| Color | White, NCS S 1002-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 31 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K |
| Optical Sensor Type | PS CMOS - 1/2" |
| Minimum Illumination | 0.11 lux - color - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0 lux - IR ¦ 0.25 lux - color - F1.36 - 50 IRE ¦ 0.009 lux - B&W - F1.36 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 6.91 mm - 214.64 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.36-4.6 - auto iris (P-Iris) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +20 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | AC 100-240 V, High PoE Class 6 |
| Features | Laser focus, infrared-cut filter, 300 preset positions, adjustable zoom speed, control queue, guard tour, Machine learning processing unit (MLPU), Nadir flip, on-screen directional indicator, quick-zoom, set new pan 0°, speed dry, tour recording, Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), low latency mode, video streaming indicator, Electronic Image Stabilizer (EIS), Forensic WDR, Privacy Mask Function, centralized certificate management, IP address filtering, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Advanced Gatekeeper, autotracking 2, orientation aid PTZ, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, memory card encryption, password protection, secure boot, secure keystore, signed firmware, signed video, Sharpdome technology, OptimizedIR, Trusted Platform Module (TPM), aluminum housing |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | 122 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7.6 in |
| Depth | 7.6 in |
| Height | 10.3 in |
| Weight | 10.58 lbs |
| Localization | European Union |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | IP66-rated RJ45 connector kit, template, paint paper |
| Compliant Standards | EAL 4+, FIPS 140-2 Level 2, IEEE 802.1x, IEEE 802.1ar, TLS v1.2, TLS v1.3, X.509, PVC-free, AES-256, EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN 62471, IEC 60825-1 Class 1, IS 13252, IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 method B, NIST SP500-267 |
| Color | White, NCS S 1002-B |
| Power | |
| Power Requirements | High PoE Class 6 |
| Power Device | Power injector - external AC 100-240 V 17 Watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS OSDI Zones, Windows decoder 1-user license |
| Environmental Parameters | |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Digital Zoom | 12 |
| Exposure Range | 1/5 sec - 1/8500 sec |
| Minimum Illumination | 0.11 lux - color - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0 lux - IR ¦ 0.25 lux - color - F1.36 - 50 IRE ¦ 0.009 lux - B&W - F1.36 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 656 ft |
| Digital Video Capture Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Laser focus, infrared-cut filter, 300 preset positions, adjustable zoom speed, control queue, guard tour, Machine learning processing unit (MLPU), Nadir flip, on-screen directional indicator, quick-zoom, set new pan 0°, speed dry, tour recording, Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), low latency mode, video streaming indicator, Electronic Image Stabilizer (EIS), Forensic WDR, Privacy Mask Function, centralized certificate management, IP address filtering, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Advanced Gatekeeper, autotracking 2, orientation aid PTZ, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, memory card encryption, password protection, secure boot, secure keystore, signed firmware, signed video, Sharpdome technology, OptimizedIR, Trusted Platform Module (TPM), aluminum housing |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | F/1.36-4.6 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.3 - 58.5 |
| Vertical Field of View (degree) | 1.4 - 34.9 |
| Image Sensor | |
| Type | PS CMOS 1/2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SSH, NTCIP, LLDP, MQTT, Syslog, Zeroconf |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Tilting | |
| Range (degree) | -90 to +20 |
| Speed (degree/sec) | Up to 500 |
