Network surveillance camera - PTZ - outdoor - dust resistant / water resistant / vandal resistant - color (Day&Night) - 1920 x 1080 - 1080p - auto iris - motorized - GbE - H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG - High PoE Class 8
| Main Specifications | |
|---|---|

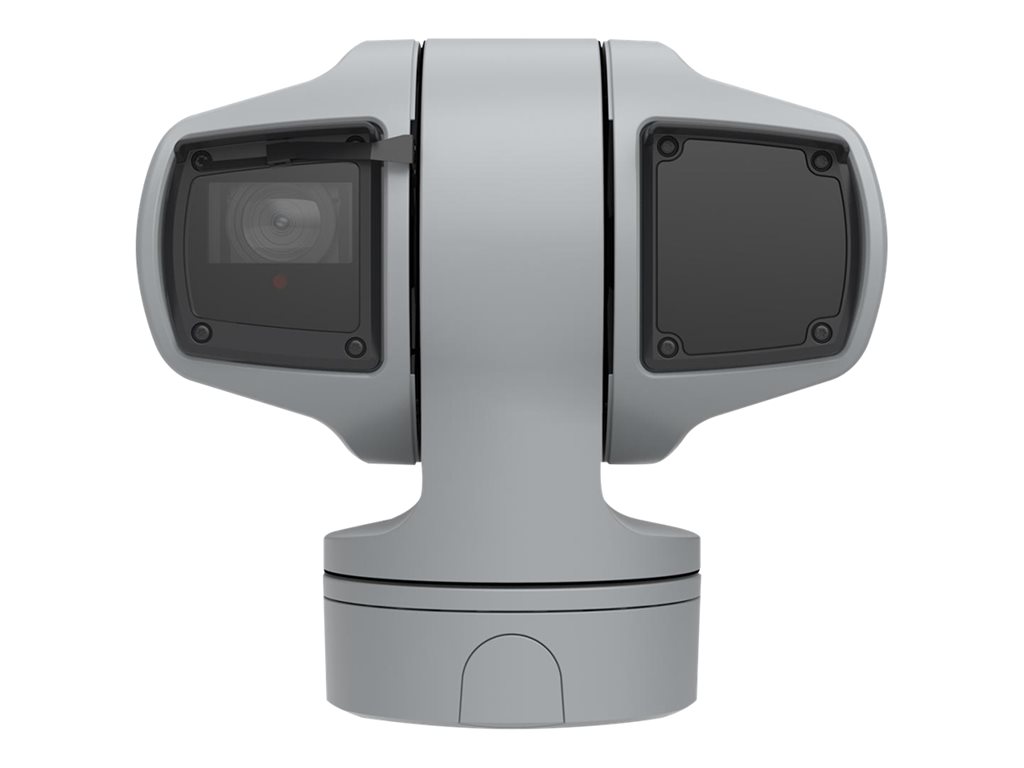

| Product Description | AXIS Q62 Series Q6225-LE 50 Hz - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - dust resistant / water resistant / vandal resistant |
| Dimensions (WxDxH) | 13 in x 8.3 in x 12.3 in |
| Weight | 19.18 lbs |
| Color | Urban gray, NCS S 5502-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 31 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 50 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | PS CMOS - 1/2" |
| Minimum Illumination | 0.05 lux - color - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0.08 lux - color - F1.36 - 50 IRE ¦ 0.008 lux - B&W - F1.36 - 50 IRE ¦ 0 lux - IR - F1.36 - 30 IRE ¦ 0 lux - IR - F1.36 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 6.91 mm - 214.64 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.36-4.6 - auto iris (P-Iris) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | High PoE Class 8 |
| Features | OptimizedIR, electronic image stabilization, Zipstream technology, infrared-cut filter, 300 preset positions, control queue, focus recall, guard tour, Machine learning processing unit (MLPU), tour recording, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), compression, color control, brightness control, sharpness control, white balance, exposure control, exposure zone, defogging, Forensic WDR, polygon privacy mask, IP address filtering, HTTPs encryption, user access log, centralized certificate management, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, e-mail alerts, text overlay, Pixel Counter Support, human detection, Vehicle Detection, Line Crossing Detection, AXIS Object Analytics, secure boot, Lightfinder 2.0 technology, TPM 2.0 module, autotracking 2 |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -67 °F - 122 °F; 10 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 13 in |
| Depth | 8.3 in |
| Height | 12.3 in |
| Weight | 19.18 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | IK10 bumper, AXIS High PoE Midspan (1 port), RJ45 push-pull connector |
| Compliant Standards | MIL-STD-810G military testing, NEMA TS-2, IEEE 802.1x, Common Criteria EAL4+, AES-256, FIPS 140-2 Level 2, IEEE 802.1ar, TLS v1.3, TLS v1.2, X.509, IEC/EN 60529 IP66, IEC/EN 60529 IP68, NEMA250 Type 4X, IEC/EN 62262 IK10, PVC-free, IEEE 802.3bt, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, AS/NZS CISPR 32 Class A, RCM, KS C 9832 Class A, KS C 9835, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, EN 60950-1, GS, UL, cUL, FCC, CB |
| Color | Urban gray, NCS S 5502-B |
| Power | |
| Power Requirements | High PoE Class 8 |
| Power Device | 25 watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license, AXIS Camera Station |
| Environmental Parameters | |
| Min Operating Temperature | -67 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - dust resistant / water resistant / vandal resistant |
| Digital Video Format | H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1/2 sec - 1/111000 sec |
| Minimum Illumination | 0.05 lux - color - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0.08 lux - color - F1.36 - 50 IRE ¦ 0.008 lux - B&W - F1.36 - 50 IRE ¦ 0 lux - IR - F1.36 - 30 IRE ¦ 0 lux - IR - F1.36 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 1310 ft |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Frame Rate (max) | 50 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | OptimizedIR, electronic image stabilization, Zipstream technology, infrared-cut filter, 300 preset positions, control queue, focus recall, guard tour, Machine learning processing unit (MLPU), tour recording, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), compression, color control, brightness control, sharpness control, white balance, exposure control, exposure zone, defogging, Forensic WDR, polygon privacy mask, IP address filtering, HTTPs encryption, user access log, centralized certificate management, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, e-mail alerts, text overlay, Pixel Counter Support, human detection, Vehicle Detection, Line Crossing Detection, AXIS Object Analytics, secure boot, Lightfinder 2.0 technology, TPM 2.0 module, autotracking 2 |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | F/1.36-4.6 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.2 - 63.8 |
| Vertical Field of View (degree) | 1.3 - 37 |
| Image Sensor | |
| Type | PS CMOS 1/2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT, Zeroconf, Syslog |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 150 |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 150 |
