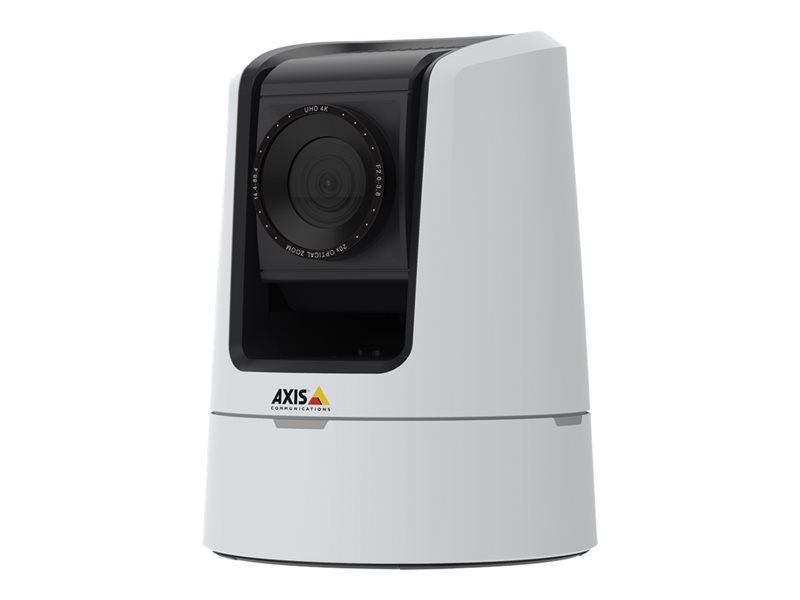

Network surveillance camera - PTZ - color (Day&Night) - 8 MP - 3840 x 2160 - motorized - audio - HDMI, HD-SDI, 3G-SDI - GbE - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 - DC 11 - 13 V
| Main Specifications | |
|---|---|
| Product Description | AXIS V5938 50 Hz - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Audio | Yes: two-way audio capability |
| Camera Mount Type | Wall mount, ceiling mount |
| Dimensions (WxDxH) | 5.4 in x 5.4 in x 7.1 in |
| Weight | 3.31 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - PAL |
| Optical Zoom | 20 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 50 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080i, 1080p, 2160p, 4K |
| Optical Sensor Type | PS CMOS - 1/2.5" - 8 MP |
| Minimum Illumination | 0.7 lux - color - F2.0 - 30 IRE ¦ 1 lux - color - F2.0 - 50 IRE ¦ 0.06 lux - B&W - F2.0 - 30 IRE ¦ 0.1 lux - B&W - F2.0 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/2.0-3.8 (DC) |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -20 to +90 |
| Interfaces | HDMI, HD-SDI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RS-232, VISCA |
| Voltage | DC 11 - 13 V |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, Wide Dynamic Range (WDR), Video Motion Detector (VMD), Highlight Compensation (HLC), 256 preset positions, Electronic Image Stabilizer (EIS), notification picture to E-mail, notification picture to FTP, password protection, Variable Bitrate (VBR), Audio Detection, noise reduction, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, infrared-cut filter, IP address filtering, auto tracking 2.0, multiple stream encoding, signed firmware, secure boot, Adaptive Bitrate (ABR), day/night threshold, defogging, text overlay, 180° image rotation |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 10 - 85% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 5.4 in |
| Depth | 5.4 in |
| Height | 7.1 in |
| Weight | 3.31 lbs |
| Localization | Europe |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ 3G-SDI output - BNC ¦ HDMI output ¦ Audio line-in/microphone - 3 pin XLR x 2 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ Serial RS-232 (Visca) |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Ceiling mount kits, wall mount kit, terminal block connectors |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEEE 802.1x, CAD ICES-3(A)/NMB3(A), NIST SP500-267 |
| Color | White |
| Power | |
| Power Requirements | DC 11 - 13 V |
| Power Device | Power adapter - external 17.5 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, Camstreamer (3 months trial) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Format | PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080i, 1080p, 2160p, 4K |
| Digital Zoom | 12 |
| Minimum Illumination | 0.7 lux - color - F2.0 - 30 IRE ¦ 1 lux - color - F2.0 - 50 IRE ¦ 0.06 lux - B&W - F2.0 - 30 IRE ¦ 0.1 lux - B&W - F2.0 - 50 IRE |
| Video Capture | 3840 x 2160 @ 25 fps ¦ 1920 x 1080 @ 50 fps ¦ 1280 x 720 @ 50 fps |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, Wide Dynamic Range (WDR), Video Motion Detector (VMD), Highlight Compensation (HLC), 256 preset positions, Electronic Image Stabilizer (EIS), notification picture to E-mail, notification picture to FTP, password protection, Variable Bitrate (VBR), Audio Detection, noise reduction, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, infrared-cut filter, IP address filtering, auto tracking 2.0, multiple stream encoding, signed firmware, secure boot, Adaptive Bitrate (ABR), day/night threshold, defogging, text overlay, 180° image rotation |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 (DC) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
| Vertical Field of View (degree) | 2.3 - 39.5 |
| Image Sensor | |
| Type | 8 MP PS CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI, HD-SDI, 3G-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, EAP, SFTP, SIP, LLDP, MQTT |
| Control Interface | RS-232, VISCA |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 100 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 90 |
