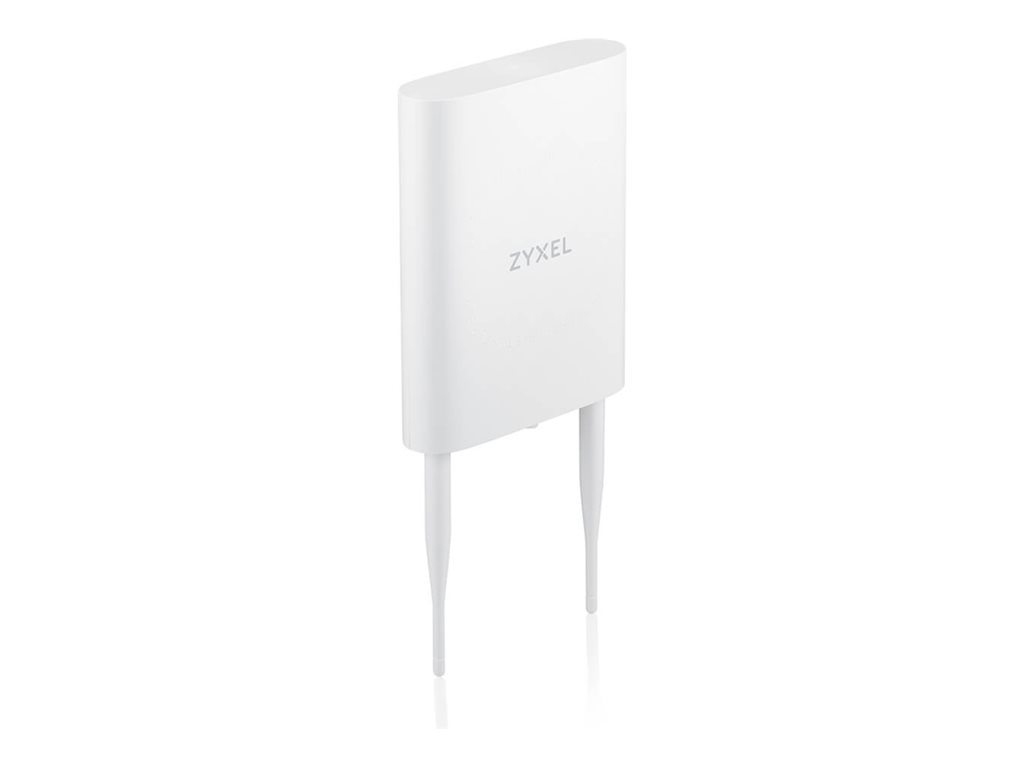

Wireless access point - BE5100, 4-stream, dual-radio, NebulaFlex, outdoor - Wi-Fi 7 - Wi-Fi 7 - 2.4 GHz, 5 GHz - cloud-managed - wall mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel NWA55BE - wireless access point - BE5100, 4-stream, dual-radio, NebulaFlex, outdoor - Wi-Fi 7 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | Wall mountable |
| Processor | 1 x Qualcomm |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 4324 Mbps ¦ Bandwidth: 20 / 40 / 80 / 160 / 240 MHz |
| Included Accessories | Mounting screws, PoE injector |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 12.1 in x 5.4 in x 2 in |
| Weight | 20.3 oz |
| General | |
| Device Type | Wireless access point |
| Width | 12.1 in |
| Depth | 5.4 in |
| Height | 2 in |
| Weight | 20.3 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T (PoE) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting screws, PoE injector |
| MTBF | 631,165 years |
| Compliant Standards | FCC Part 15 C, FCC Part 15 E, FCC Part 2.1091, ETSI EN 300 328, EN 301 893, EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002, FCC Part 15 B, EN 301 489-1, EN 301 489-17, EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3, EN60601-1-2, BSMI CNS 15936, EN 62368-1, IEC 62368-1, BSMI CNS 15598-1, ETSI |
| Networking | |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 5.1 Gbps |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | IPv6 |
| Remote Management Protocol | CLI, WEB |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 4324 Mbps ¦ Bandwidth: 20 / 40 / 80 / 160 / 240 MHz |
| Wi-Fi Rating | BE5100 |
| Features | NebulaFLEX support, MU-MIMO technology, band steering, WDS/Mesh, Fast Roaming, Dynamic Channel Selection (DCS), Advanced Cellular Coexistence (ACC), MAC address filtering, L2-isolation, rogue AP detection, Unscheduled Automatic Power Save Delivery (U-APSD), VLAN support, Wi-Fi Multimedia (WMM) support, standalone use, firmware upgradable |
| Encryption Algorithm | WPA, WPA2, WPA3, WEP |
| Compliant Standards | IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Qualcomm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.7 in |
| Shipping Depth | 7.4 in |
| Shipping Height | 2.3 in |
| Shipping Weight | 34.72 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
