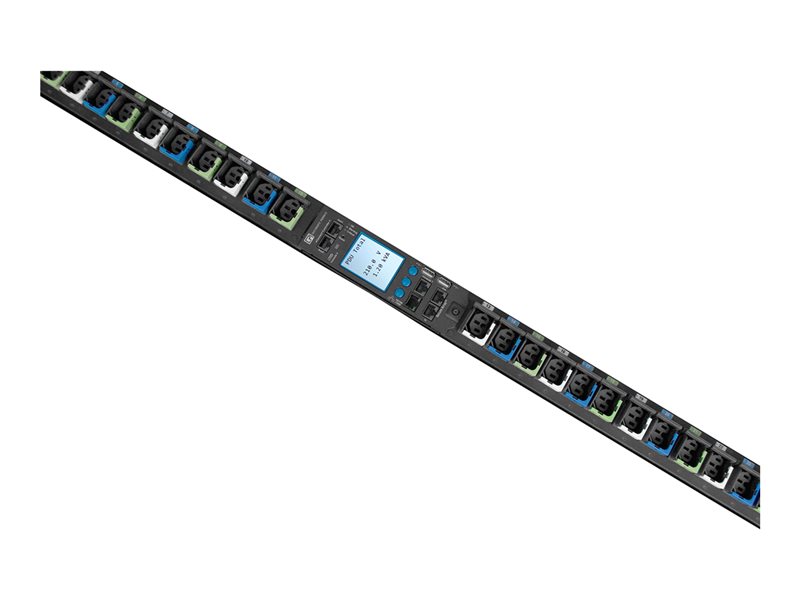

Power distribution unit (rack-mountable) - AC 220-240/380-415 V - 23 kW - 3-phase - Ethernet 10/100/1000, USB, serial - input: IEC 60309 3P+E - output connectors: 42 (36 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 10 ft cord - Worldwide - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI Monitored eConnect EA-3024-C - power distribution unit - 23 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Localization | Worldwide |
| Input Wiring | 3-phase |
| Input Voltage | AC 220-240/380-415 V |
| Output Voltage | AC 220/240 V |
| Power Capacity | 23 kW |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RESTful API, CLI, LDAP, RADIUS, HTTPS, SSH |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | Worldwide |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 2 x AUX - RJ-45 ¦ 2 x sensor ¦ 2 x Secure Array - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, environmental sensor, tool-less mounting, password security, Secure Array technology, locking outlets, replaceable controller, LCD display, electronic lock integration ready, magnetic hydraulic breaker, simplified load balancing, environmental sensor ready, grounded, LED indicators, color-coded labels, voltage monitoring, monitored, current meter, power measuring, Zero Touch Provisioning (ZTP) |
| Compliant Standards | IEEE 802.1x, IEC 62368, UL 62368, UL 489, IP67, RoHS, NEMKO, FCC Part 15 A, EN55022 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RESTful API, CLI, LDAP, RADIUS, HTTPS, SSH |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 220-240/380-415 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 220/240 V 50/60 Hz |
| Max Electric Current | 32 A |
| Power Capacity | 23 kW |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.2 in |
| Shipping Depth | 2.3 in |
| Shipping Height | 71.9 in |
