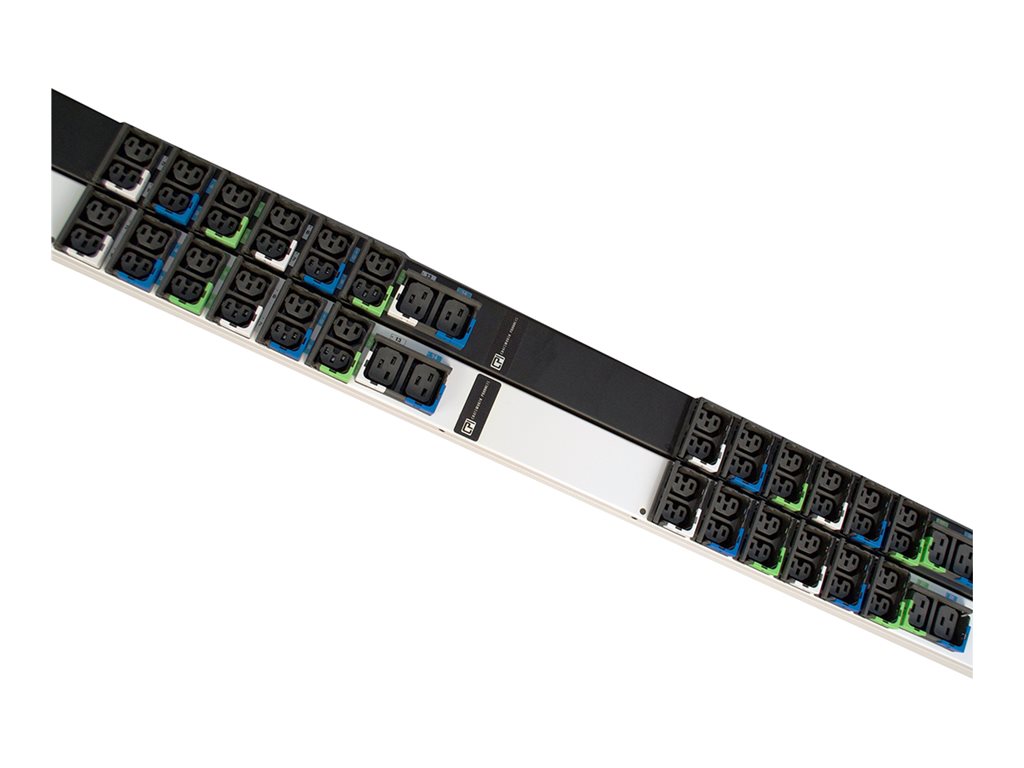

Redundancy Pack - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - 1-phase - input: NEMA L6-20P - output connectors: 24 (IEC 60320 C13/C15) - 42U - 10 ft cord - black, glacier white - TAA Compliant (pack of 2)
| Main Specifications | |
|---|---|
| Product Description | CPI Basic eConnect E0-1003-CE - Redundancy Pack - power distribution unit - 3.3 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Packaged Quantity | 2 (specifications are for single item) |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Power Capacity | 3.3 kW |
| Input Connectors | Power NEMA L6-20P |
| Output connectors | 24 x power IEC 60320 C13/C15 |
| Included Accessories | 2 x toolless mounting buttons, rack mount brackets |
| Color | Black, glacier white |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 2.3 in x 71.9 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Black, glacier white |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x toolless mounting buttons, rack mount brackets |
| Cables Included | Power cable 10 ft |
| Features | Tool-less mounting, indoor use, low-profile design |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L6-20P |
| Power Output Connectors Details | 24 x power IEC 60320 C13/C15 |
| Max Electric Current | 20 A |
| Power Capacity | 3.3 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.3 in |
| Height | 71.9 in |
