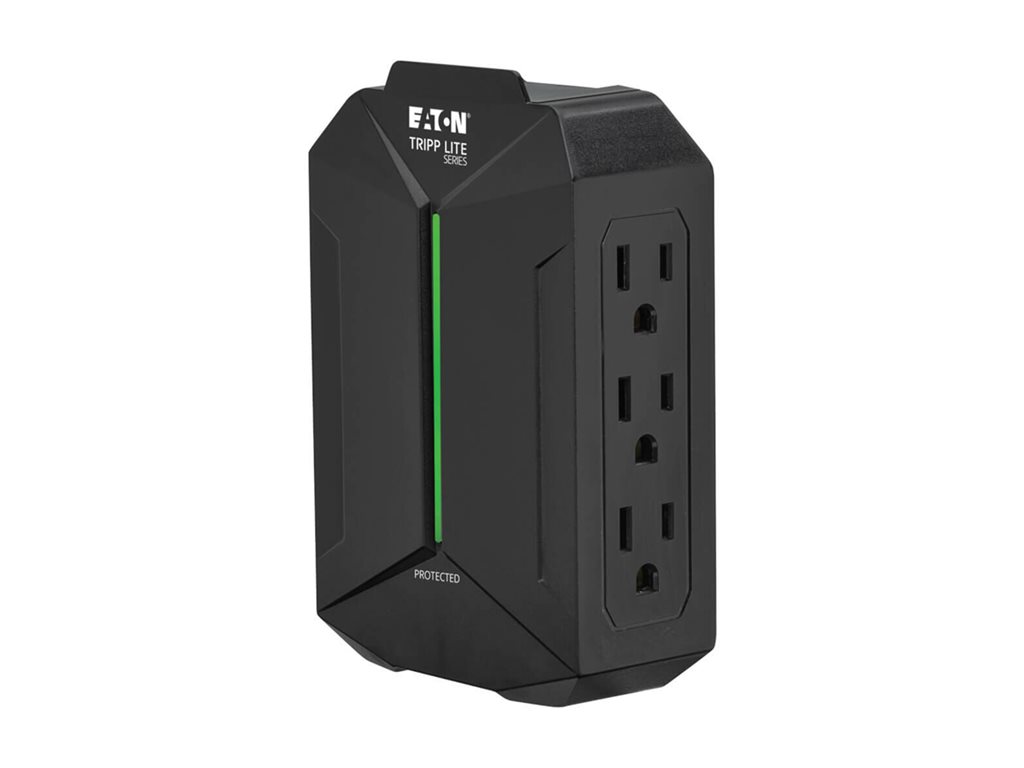

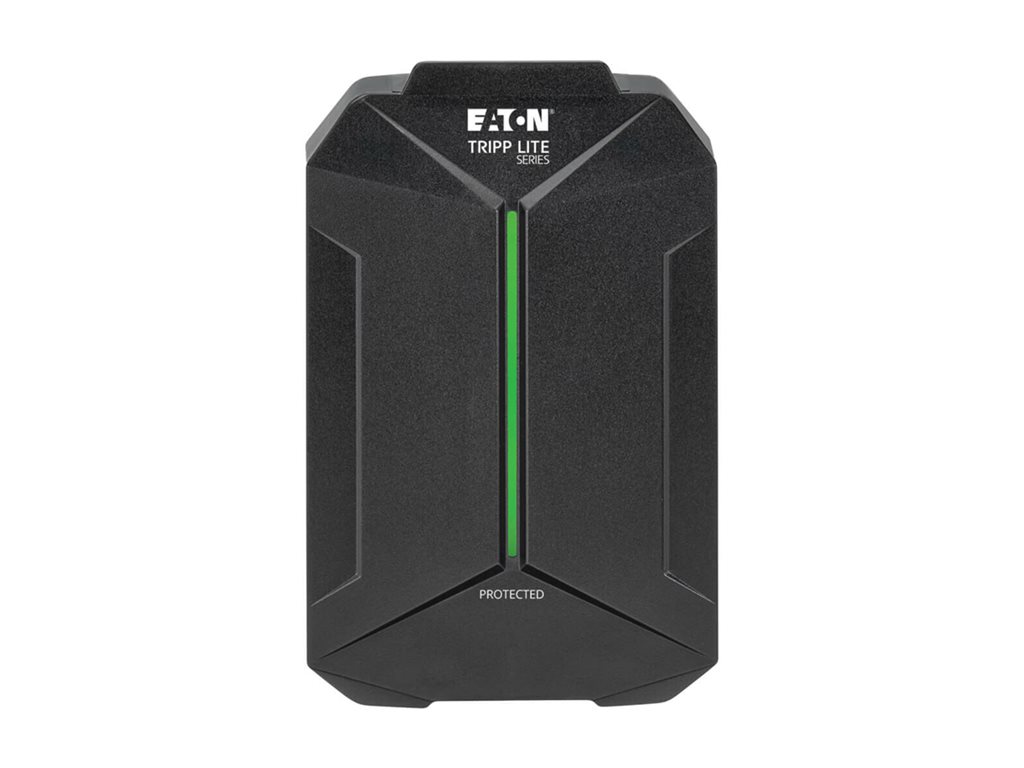

Surge protector - Direct Plug-In - 15 A - AC 120 V - 1875 Watt - output connectors: 6 - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - surge protector - Direct Plug-In - 1875 Watt |
| Device Type | Surge protector - external |
| Weight | 9.13 oz |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1875 Watt |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 6 x power NEMA 5-15R (surge) |
| Color | Black |
| Dimensions (WxDxH) | 3.6 in x 2.8 in x 5.6 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Surge protector - external |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Insurance - lifetime |
| Miscellaneous | |
| Equipment Protection Value | 20000 US Dollars |
| Features | Diagnostic LED, RFI filtering, EMI filtering, plastic housing, single mode connected L-N protection mode, overload protection |
| Compliant Standards | ANSI / IEEE 587 C62.41, CAN/CSA-C22.2 No. 269.3, CAN/CSA C22.2 No. 42, UL 1449 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Provided | 60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 6 x power NEMA 5-15R (surge) |
| Output Voltage | AC 120 V 60 Hz |
| Max Electric Current | 15 A |
| Power Capacity | 1875 Watt |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Surge Energy Rating | 490 Joules |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 2.8 in |
| Height | 5.6 in |
| Weight | 9.13 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.8 in |
| Shipping Depth | 2.9 in |
| Shipping Height | 7.3 in |
| Shipping Weight | 11.67 oz |
