USB extender - USB 3.0 - over CAT 6a/7/8 - 4 ports - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - USB extender - USB 3.0 - TAA Compliant |
| Device Type | USB extender |
| Ports Qty | 4 |
| Form Factor | Desktop / surface-mountable |
| Localization | Australia, Japan, New Zealand, North America, United Kingdom, Europe |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB 3.0 |
| Transmission Medium | CAT 6a/7/8 |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| Dimensions (WxDxH) | 5.9 in x 3.9 in x 0.8 in |
| Weight | 12.34 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB extender |
| Form Factor | Desktop / surface-mountable |
| Color | Black |
| Localization | Australia, Japan, New Zealand, North America, United Kingdom, Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.0 (local unit) - Type B female ¦ 1 x RS-232 (local unit) - 4 pin terminal block ¦ 1 x Ethernet (local unit) - RJ-45 ¦ 1 x USB (local unit) - micro-USB Type B ¦ 4 x USB 3.0 (remote unit) - Type A female ¦ 1 x RS-232 (remote unit) - terminal block ¦ 1 x Ethernet (remote unit) - RJ-45 ¦ 1 x USB (remote unit) - micro-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

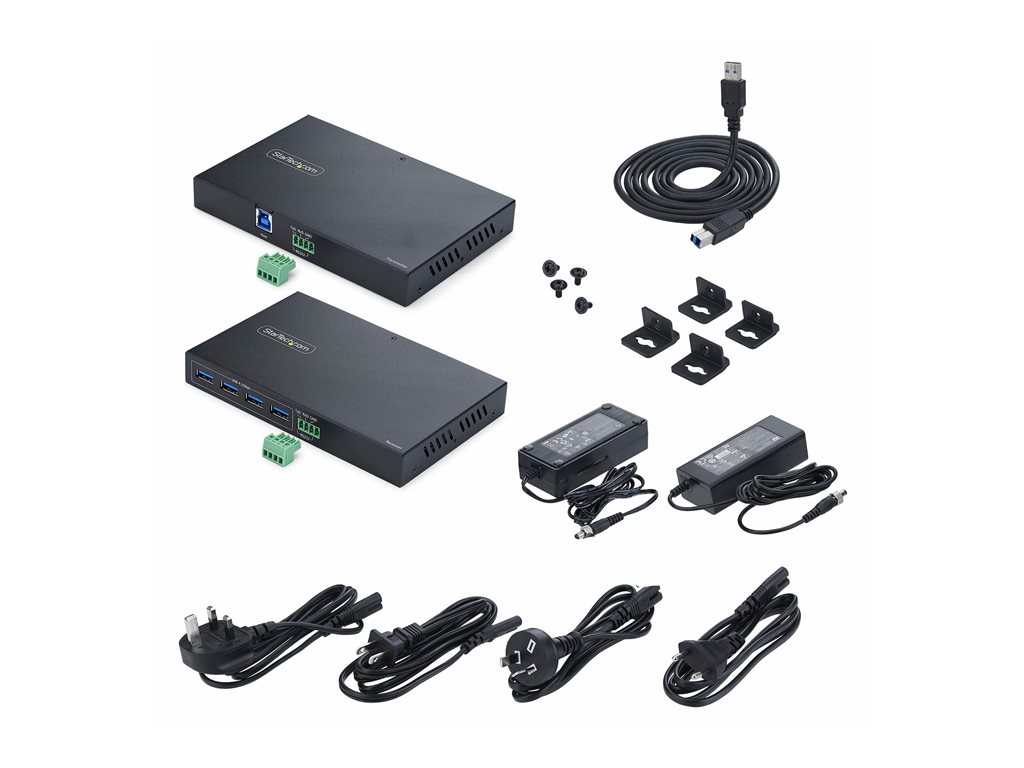

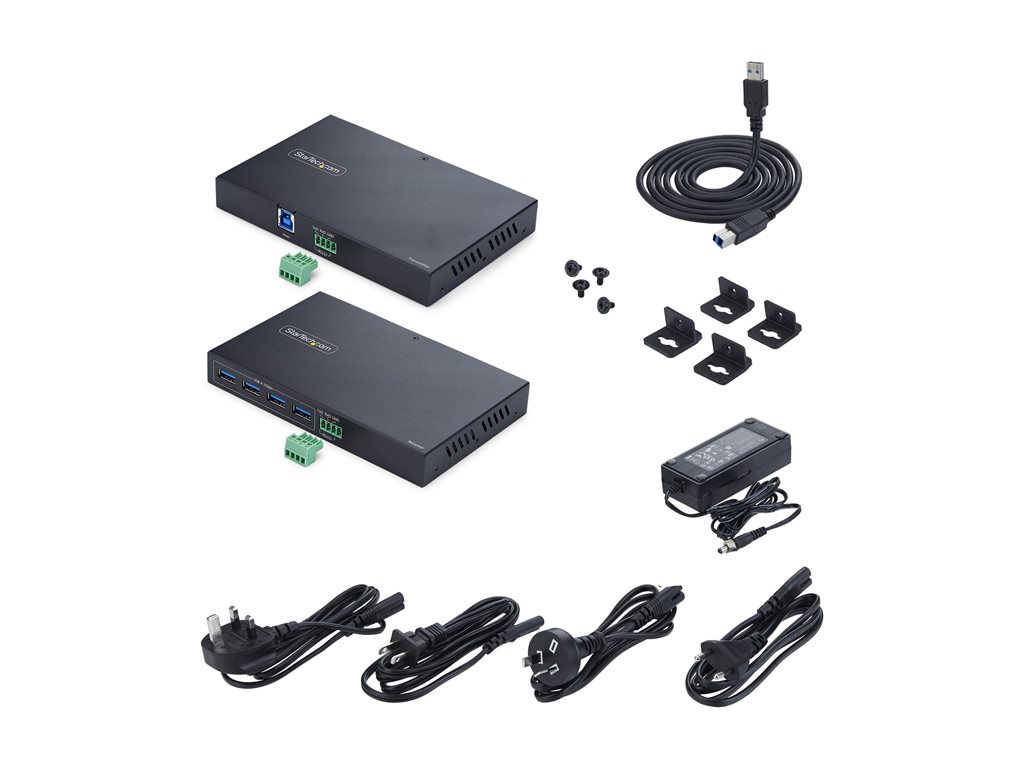

| Included Accessories | Mounting kit, 2 terminal blocks, power adapter |
| Cables Included | 1 x USB-A to USB-B cable - 6 ft |
| Compliant Standards | Plug and Play |
| TAA Compliant | Yes |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, host, link |
| Features | Rugged, metal housing, power over cable (PoC), Point-to-Point (PtP) link mode, steel housing, VS6320 chipset, RS-232 passthrough |
| Compliant Standards | USB 3.0, USB 3.2 Gen 1 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 60 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 3.9 in |
| Height | 0.8 in |
| Weight | 12.34 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.8 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 3.1 in |
| Shipping Weight | 2.65 lbs |
