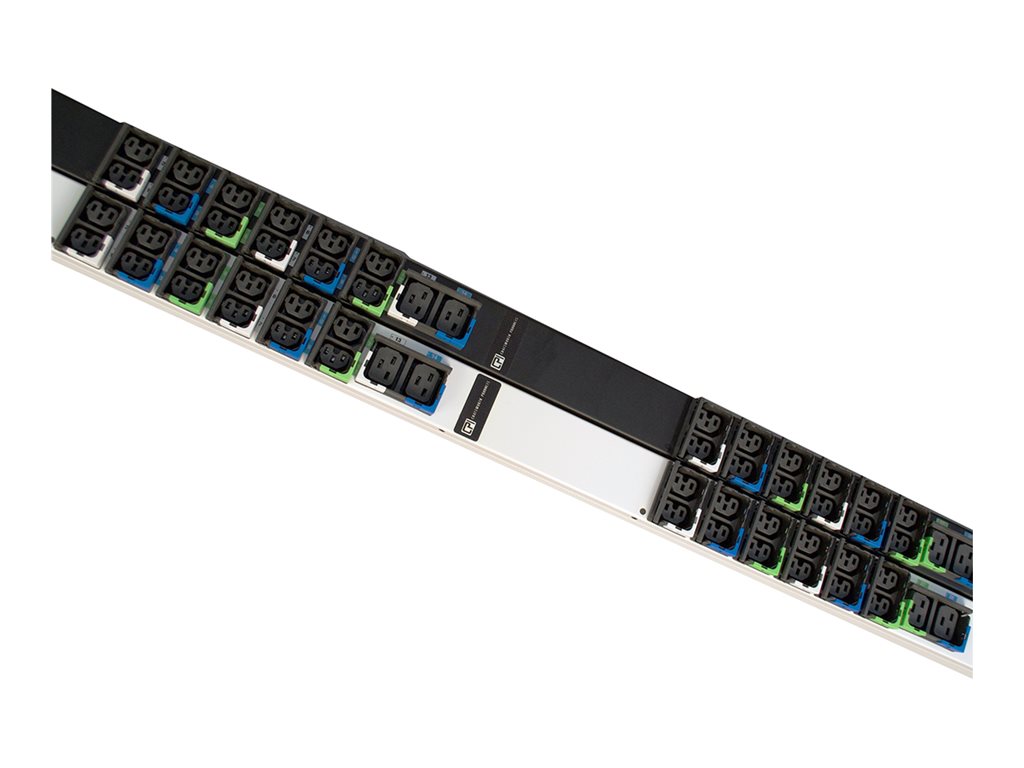

Power distribution unit (rack-mountable) - vertical - AC 208 V - 14.4 kW - 3-phase - input: CS8365 - output connectors: 42 (36 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 10 ft cord - North America - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI Basic eConnect E0-1019-C - power distribution unit - vertical - 14.4 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Localization | North America |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Power Capacity | 14.4 kW |
| Input Connectors | 1 x power CS8365 |
| Output connectors | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, tool-less mounting, for indoor use, magnetic hydraulic breaker, locking outlets |
| Compliant Standards | UL, IEC 62368, cULus, UL 489, cUL, FCC Part 15 A, EN55022, RoHS |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365 |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Max Electric Current | 50 A |
| Power Capacity | 14.4 kW |
| Circuit Protection | Circuit breaker |
