Video conferencing kit - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Jabra PanaCast Room Kit - video conferencing kit - power adapter included |
| Device Type | Video conferencing kit |

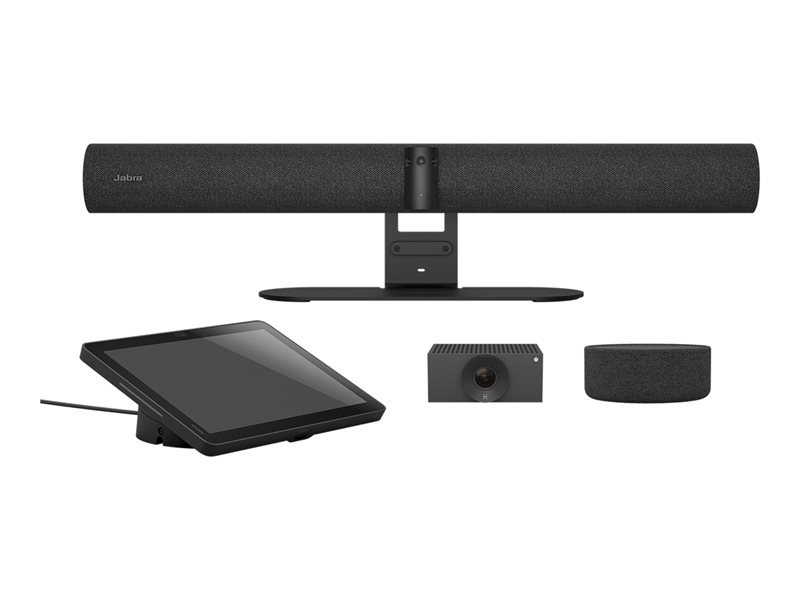

| Kit Content | PanaCast 55 VBS video bar, Jabra Control IP, PanaCast SpeakerMic, Jabra Cam L1 |
| Localization | North America |
| Display | 10.1" 1920 x 1200 |
| Video Input | Digital camera - SuperSpeed USB 3.0, USB, Ethernet |
| Audio Input | 8-microphone array - beamforming |
| Audio Output | Speakers with subwoofer - stereo |
| Input Device | 10.1" touchscreen (wired) |
| Networking | Network adapter - Bluetooth 5.1, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3af |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | PanaCast 55 VBS video bar, Jabra Control IP, PanaCast SpeakerMic, Jabra Cam L1 |
| Dimensions & Weight Details | Video bar - Width 28.7 in Depth 5.7 in Height 3 in Weight 5 lbs ¦ Touch screen - Width 9.8 in Depth 6.1 in Height 3.3 in Weight 33.8 oz ¦ Speaker - Width 5.4 in Depth 5.4 in Height 2.2 in Weight 22 oz ¦ Camera - Width 3.5 in Depth 4.8 in Height 2.1 in Weight 21.2 oz |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 2 x audio / video - HDMI output ¦ 1 x audio / video - AUX port ¦ 1 x USB - Type A ¦ 2 x USB - Type C ¦ 1 x network - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 6 ft |
| Mounting Kit | Included |
| Included Accessories | Wall mount, cable cover, privacy cover with sensor, power cable |
| Compliant Standards | Plug and Play |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Bluetooth 5.1, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3af |
| Network / Transport Protocol | IPv4, IPv6, HTTPs |
| Features | DHCP support, auto-uplink (auto MDI/MDI-X), static IP address support, BYOD mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, USB 2.0, USB 3.0 |
| Power | |
| Power Device | Power supply - external |
| Software / System Requirements | |
| Software Included | Microsoft Teams Rooms, Zoom Rooms |
| Audio Output | |
| Type | Speakers with subwoofer |
| Sound Output Mode | Stereo |
| Frequency Response | 80 - 20000 Hz |
| Audio Input | |
| Type | 8-microphone array |
| Microphone Operation Mode | Beamforming |
| Frequency Response | 100 - 16000 Hz |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wired |
| Display | |
| Diagonal Size | 10.1" |
| Native Resolution | 1920 x 1200 |
| Monitor Features | One-Touch, Kensington Security Slot |
| Video Input | |
| Type | Digital camera (color) - desktop / wall mountable |
| Interface Type | SuperSpeed USB 3.0, USB, Ethernet |
| Digital Video Capture Resolution | 3840 x 1080 |
| Video Modes | 4K |
| Digital Zoom | 6 |
| Camera Mechanical Design | Fixed |
| Features | LED indicator, panoramic 4K resolution support, Intelligent-Zoom, High Dynamic Range (HDR), security slot (Kensington security lock compatible), People Counter, privacy cover, 180° field of view (horizontal), 54° field of view (vertical), multi-streaming, Microsoft MDEP compatible, onboard ai |
