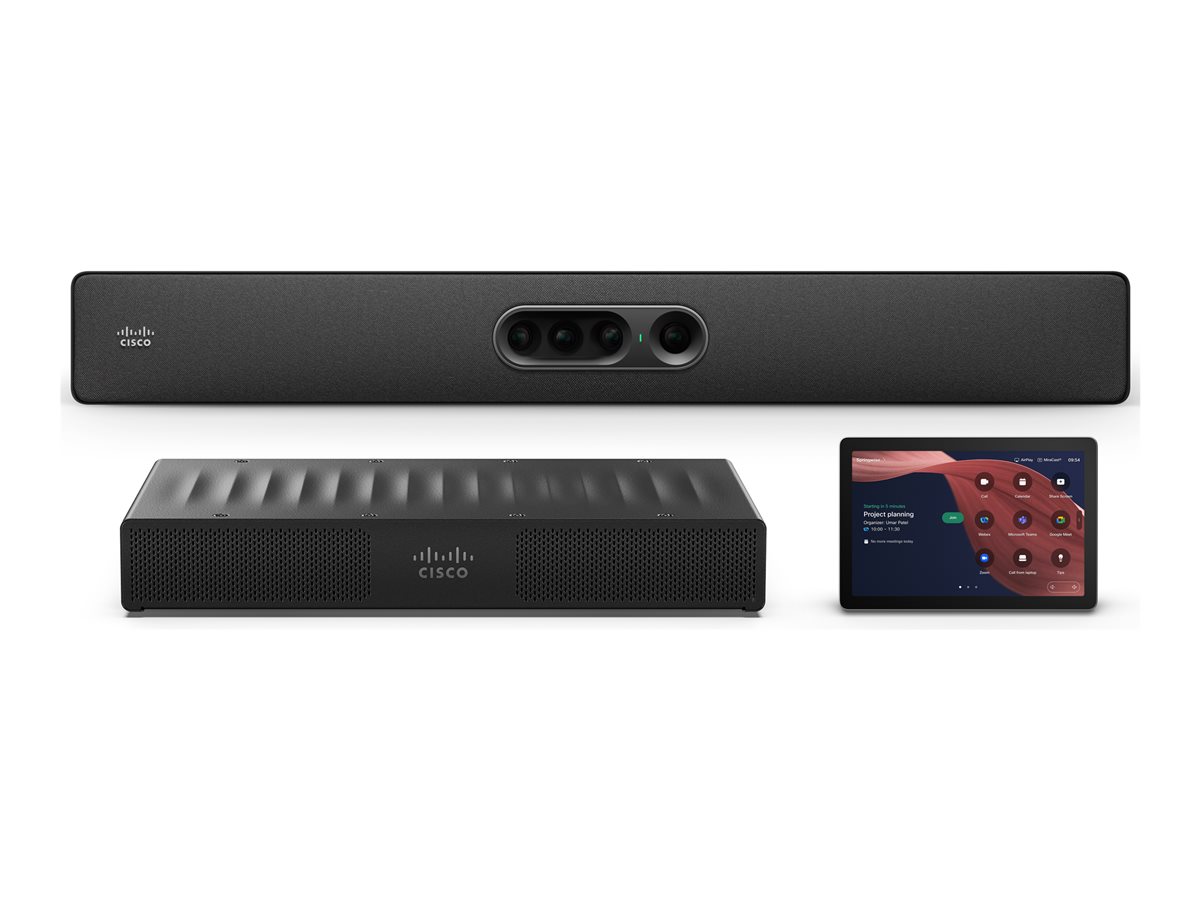

Video conferencing kit (Cisco Webex Codec Pro G2, Cisco Webex Quad Camera, Cisco Webex Room Navigator) - Certified for Microsoft Teams Rooms - carbon black - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Cisco Webex Room Kit Pro G2 - video conferencing kit - power adapter included |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec Pro G2, Cisco Webex Quad Camera, Cisco Webex Room Navigator |
| VoIP Protocols | H.323, SIP |
| Codec | H.263, H.264, H.265, G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Input | Digital video camera - HDMI, USB, 1Gb Ethernet, 10Gb Ethernet |
| Video Output | Codec board - 3840 x 2160 |
| Audio Input | 8-microphone array |
| Audio Output | Speaker(s) |
| Input Device | 10" touchscreen (wired) |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Power | AC 100-240 V (50/60 Hz) |
| Software Certification | Certified for Microsoft Teams Rooms |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec Pro G2, Cisco Webex Quad Camera, Cisco Webex Room Navigator |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Codecs | H.263, H.264, H.265 |
| Quality of Service | Differentiated Services (DiffServ), IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment | DHCP |
| Security | H.235 v3, 128-bit AES, 256-bit AES, WPA3TM, WPA3-Enterprise |
| Network Protocols | NTP, DHCP, IPv4, IPv6, SSH |
| Dimensions & Weight Details | Codec - Width 17.1 in Depth 9.9 in Height 2.6 in Weight 6.2 lbs ¦ Camera - Width 37.4 in Depth 4.1 in Height 4.7 in Weight 10.6 lbs ¦ Touch controller - Width 9.5 in Depth 2.8 in Height 6.4 in Weight 22.2 oz |
| Enclosure Color | Carbon black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C - 24 pin USB-C ¦ 5 x display / video - HDMI input - 19 pin HDMI Type A ¦ 5 x display / video - HDMI output - 19 pin HDMI Type A ¦ 8 x network - Ethernet 1000Base-T (PoE++) - RJ-45 ¦ 1 x network - 10Gb Ethernet - RJ-45 ¦ 3 x audio / video - HDMI output ¦ 2 x USB - Type A ¦ 2 x audio out ¦ 3 x audio out - HDMI ¦ 1 x audio out - USB - Type A ¦ 1 x audio out - USB - Type C ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB - Micro-USB Type B ¦ 1 - GPIO - 4 pin Euroblock ¦ 1 x network - 10/100/1G Ethernet - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 1 year ¦ Limited warranty - advance parts replacement - 10 days |
| Miscellaneous | |
| Software Certification | Certified for Microsoft Teams Rooms |
| Compliant Standards | HDCP 2.3, RoHS, FCC, WEEE, Directive 2014/53/EU, Directive 2014/35/EU, Directive 2011/65/EU, Directive 2002/96/EU, NRTL, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | NTP, DHCP, IPv4, IPv6 |
| Features | Cisco Expressway technology, DisplayPort Alternate mode, Quality of Service (QoS), URI Dialing, 802.1x authentication, password protection, Certificate Authority Proxy Function (CAPF), Manufacturer-Installed Certificates (MIC), Locally Significant Certificates (LSC), AV Over IP, 2x2 MIMO technology, Class of Service (CoS), flow control, DiffServ support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.11a, X.509 |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | RoomOS 26.5 or later |
| Audio Output | |
| Type | Speaker(s) |
| Frequency Response | 100 - 20000 Hz |
| Audio Input | |
| Type | 8-microphone array - integrated |
| Input Device | |
| Type | 10" touchscreen |
| Connectivity Technology | Wired |
| Features | 1920 x 1200 resolution, PoE support, LCD screen |
| Video Input | |
| Type | Digital video camera (color) - wall mountable |
| Interface Type | HDMI, USB, 1Gb Ethernet, 10Gb Ethernet |
| Digital Video Capture Resolution | 1920 x 1080, 3840 x 2160, 5056 x 3888 |
| Video Modes | 5K, 8K |
| Optical Zoom | 5 |
| Digital Zoom | 7 |
| Camera Mechanical Design | Multi-sensor |
| Features | WebRTC compatible, machine intelligent switching, 1/1.7 CMOS image sensor type, 60 frame per second, F 2.0 lens aperture, 50° horizontal field of view (tele), 83° field of view (horizontal), Auto Focus, brightness control, focus distance 1 m to infinity, white balance, group view mode, speaker view mode, frames mode, Multi Camera Control, Acoustic Echo Cancellation (AEC), AI-powered, Automatic Gain Control (AGC), full duplex audio, self-hear, Ultrasound technology, presenter tracking, Microsoft MDEP compatible, AI Engine |
| Video Output | |
| Type | Codec board - rack-mountable |
| Max External Resolution | 3840 x 2160 |
| Supported Display Graphics | HDTV (1920x1080), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
