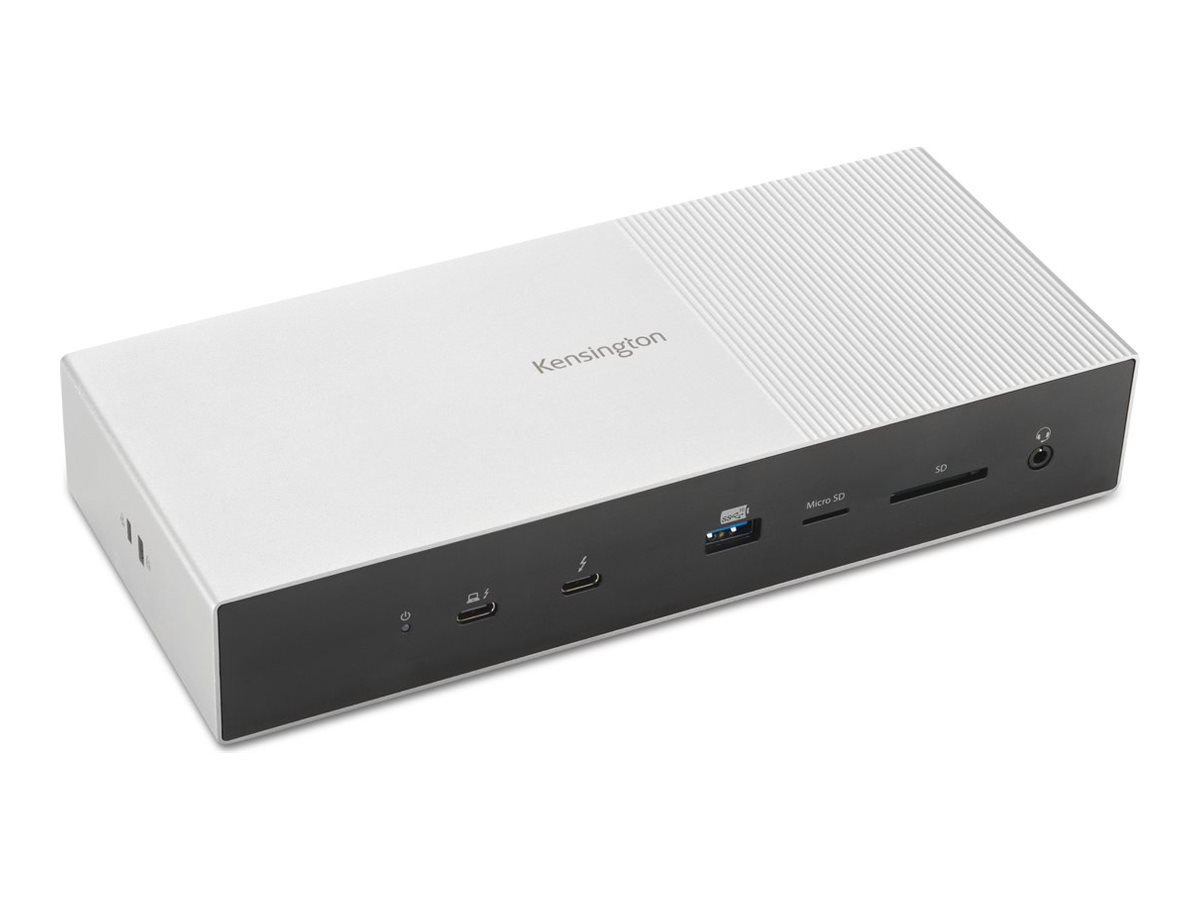

Docking station - Thunderbolt 5 - 3 x Thunderbolt 5 - 1GbE, 2.5GbE - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Kensington SD5005T5 EQ - docking station - Thunderbolt 5 - 3 x Thunderbolt 5 - 1GbE, 2.5GbE - TAA Compliant |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 5 |
| Video Interfaces | 3 x Thunderbolt 5 |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD UHS-II Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 3 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-T/1000Base-T/2500Base-T - RJ-45 ¦ 1 x USB-C with Power Delivery 3.1 (140 W) - 24 pin USB-C ¦ 3 x Thunderbolt 5 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Fast charging, DockWorks, 80 Gbps Thunderbolt bandwidth, up to 120 Gbps Thunderbolt bandwidth (boost mode), Kensington security slot, security lock slot (cable lock sold separately), 100% recycled aluminum, up to 10Gbps data transfer, triple display support, Zero Footprint Mounting |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | Plug and Play, FSC |
| TAA Compliant | Yes |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Dual Display) ¦ 4K - 144 Hz (Triple Display) ¦ 8K - 60 Hz (Single Display) ¦ 1080P - 540 Hz (Single Display) |
| System Requirements | |
| OS Required | Windows 11 (version 23H2) or later |
