Label printer - direct thermal - - 203 dpi - up to 359.1 inch/min - USB 2.0, USB host, Bluetooth 5.3, Wi-Fi(ax)
| Main Specifications | |
|---|---|

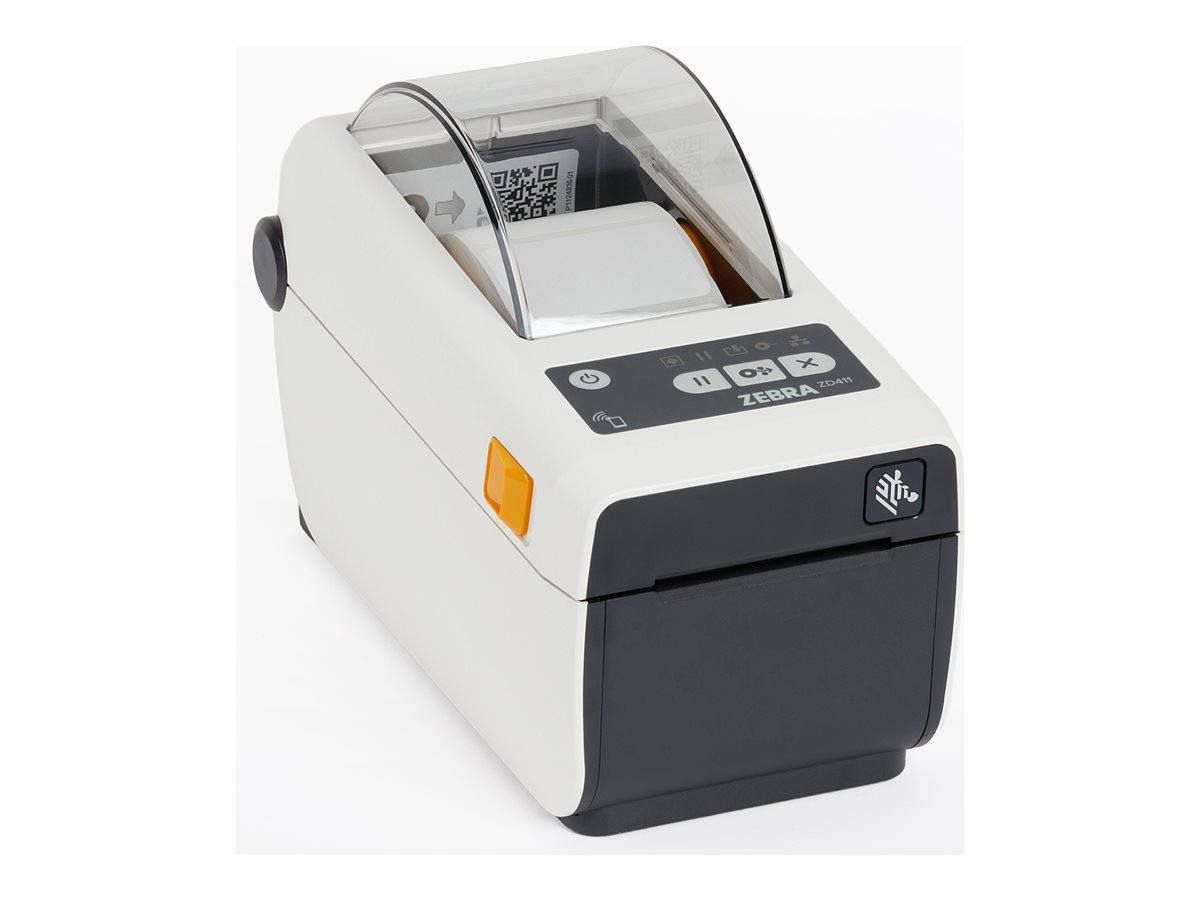

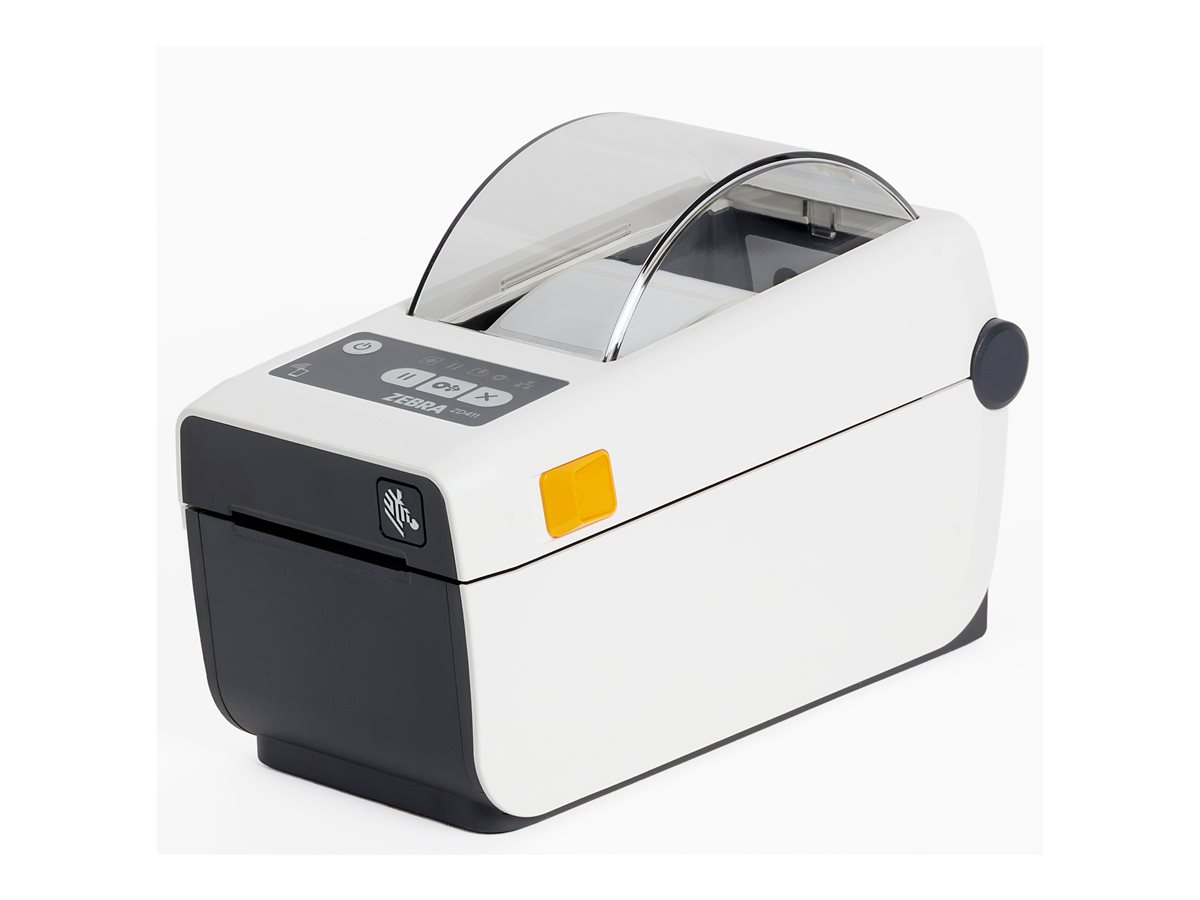

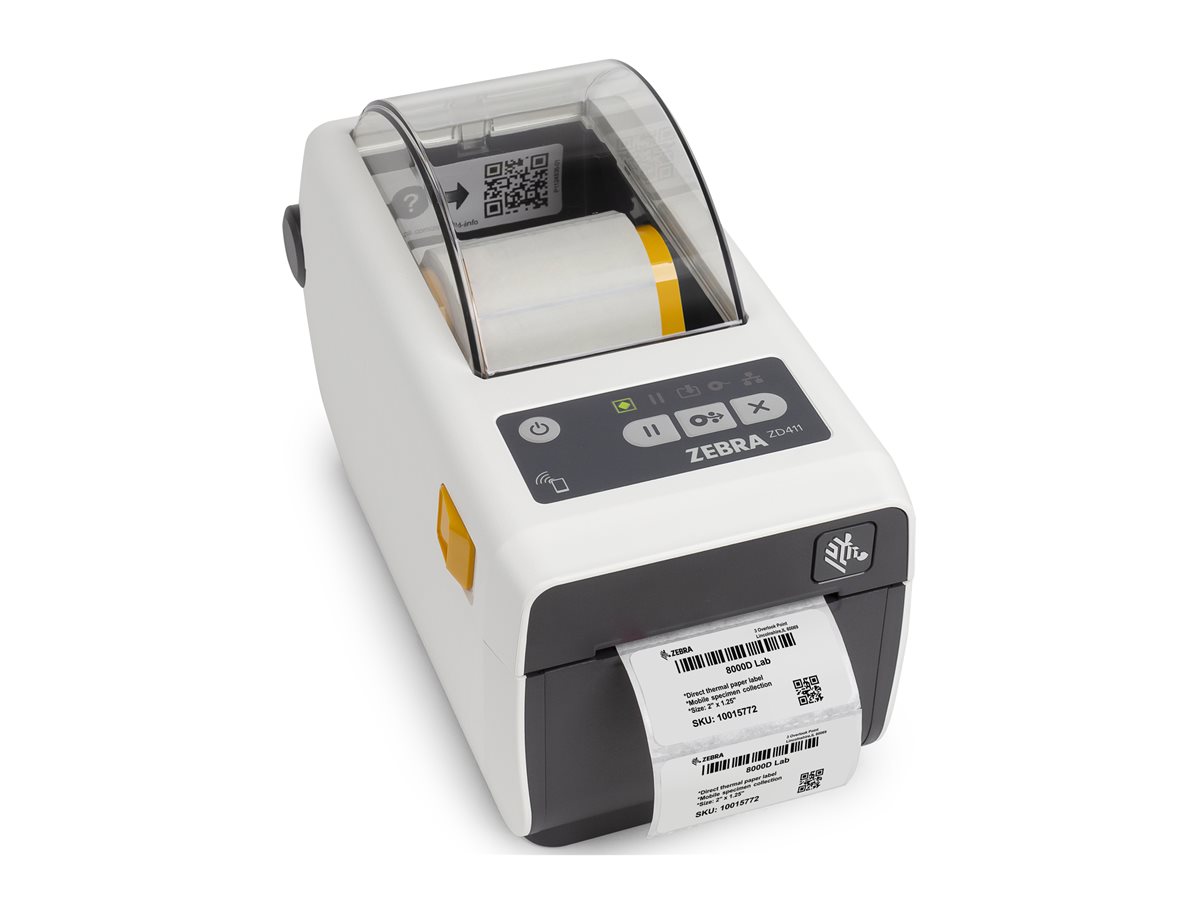

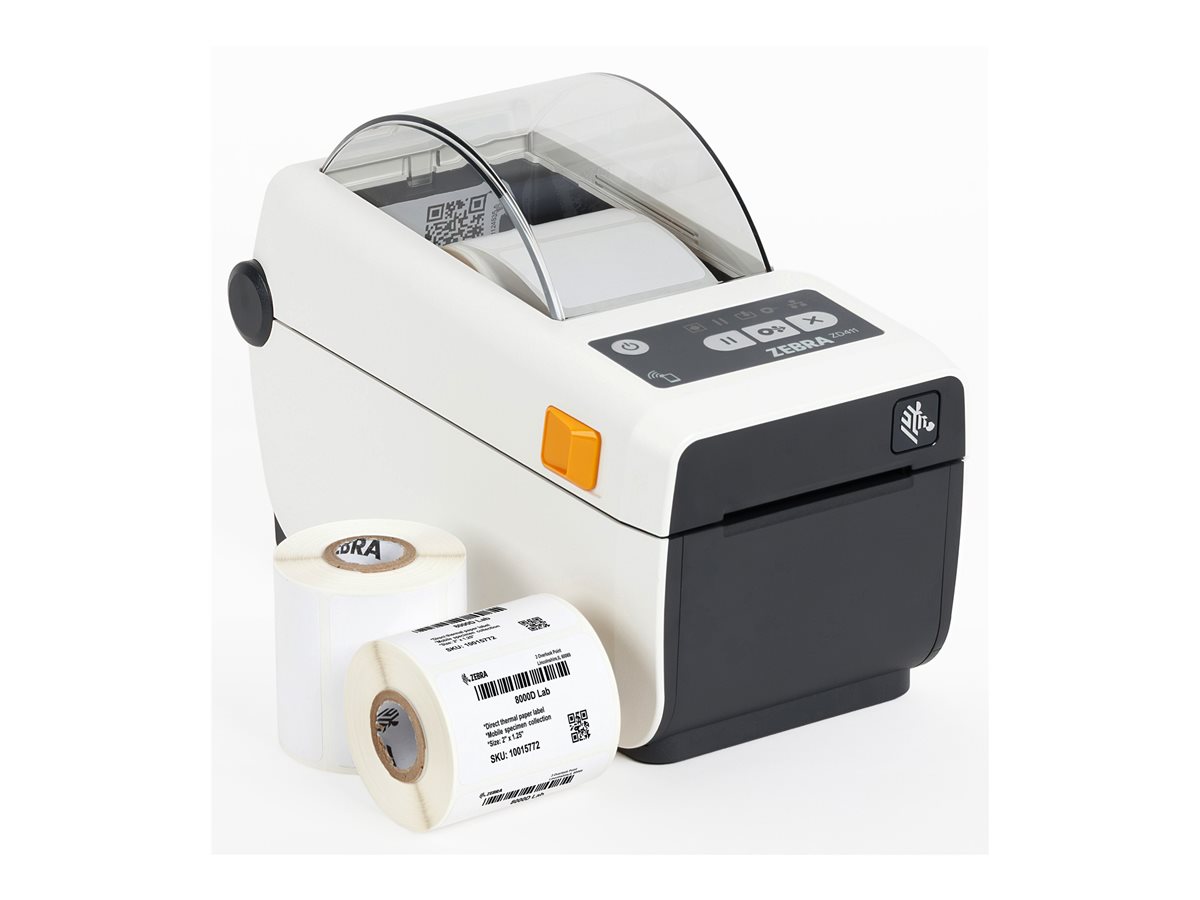

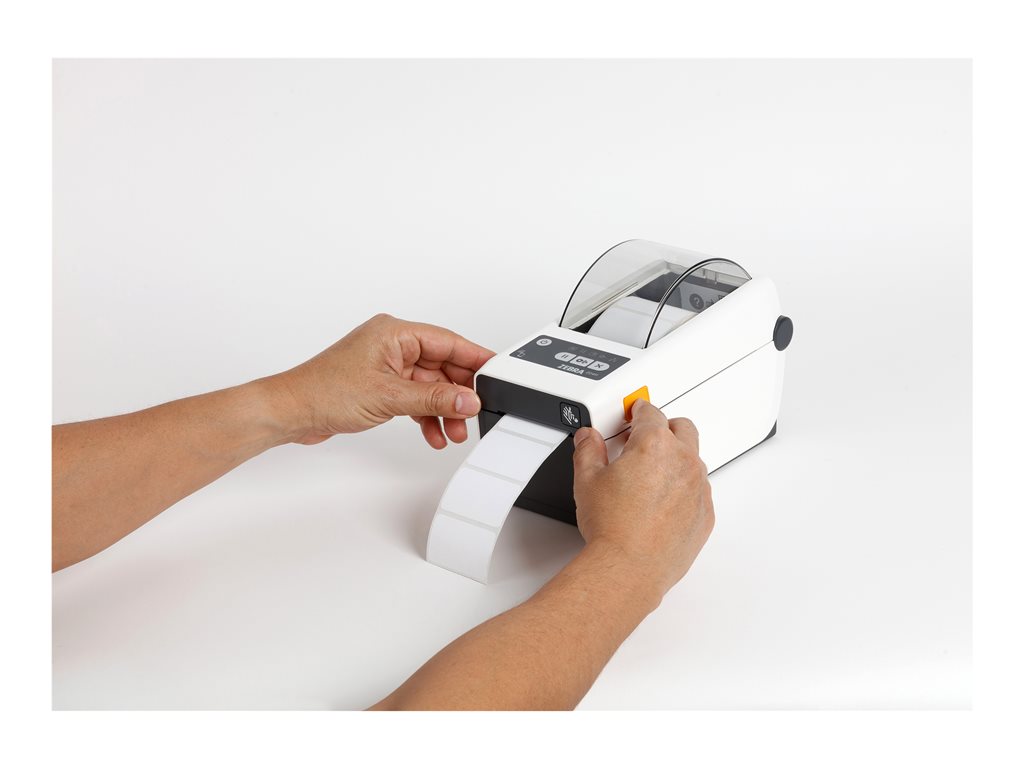

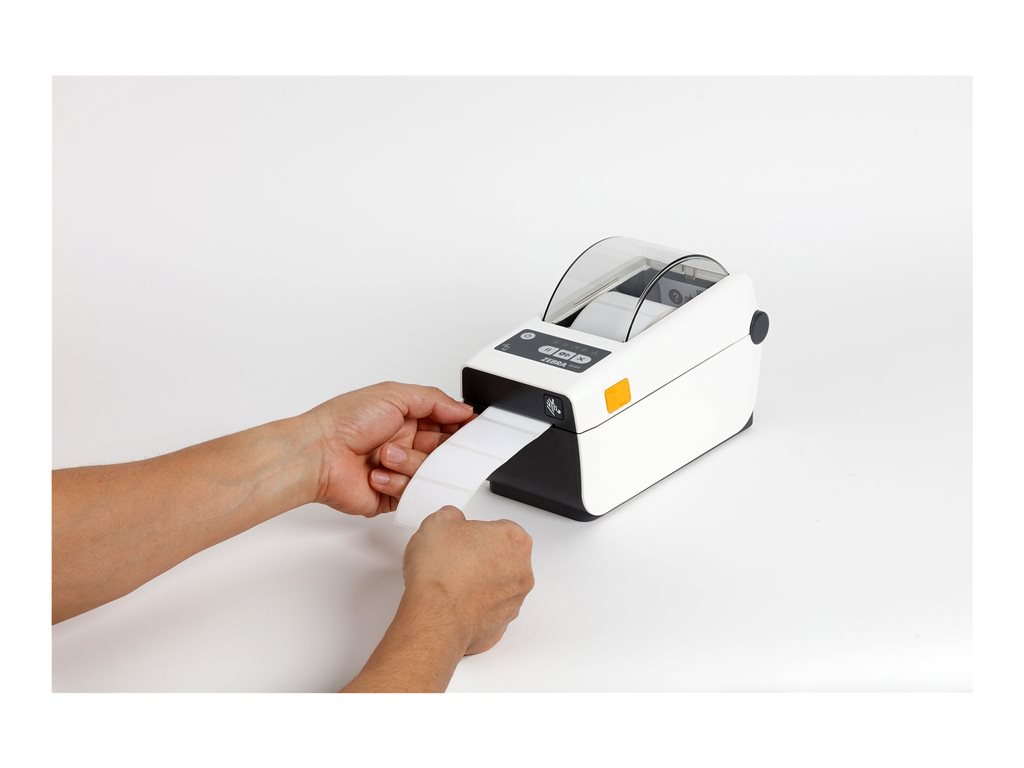

| Product Description | Zebra ZD411 - label printer - B/W - direct thermal |
| Printer Type | Label printer - direct thermal - B/W |
| Weight | 2.2 lbs |
| Max Media Size | Roll (2.2 in) |
| Min Media Size (Custom) | 0.25 in x 0.25 in |
| Max Media Size (Custom) | 2.35 in x 39 in |
| Print Speed | Up to 359.1 inch/min - B/W |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB 2.0, USB host, Bluetooth 5.3, Wi-Fi(ax) |
| RAM Installed (Max) | 256 MB DDR3 SDRAM |
| Flash Memory Installed (Max) | 512 MB |
| Language Simulation | ZPL II, EPL2, ZPL, EPL, PDF Direct, Extensible Mark-up Language (XML), ZBI |
| Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT 128, UPC-A, UPC-E, EAN-8, EAN-13, UPC-2, UPC-5, Plessey, Postnet, Standard 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar, CODABLOCK, PDF417, Code 49, Data Matrix, MaxiCode, QR code, MicroPDF417, Aztec code |
| Media Type | Fanfold labels, die cut labels, continuous labels, tag stock, receipt paper, wristbands |
| Features | Realtime clock, transmissive/gap sensor |
| Power | AC 100-240 V |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 4.5 in x 8.7 in x 5.9 in |
| General | |
| Printer Type | Label printer - direct thermal - monochrome |
| Image Color Disclaimer | The displayed product image may be a different color |
| Expansion / Connectivity | |

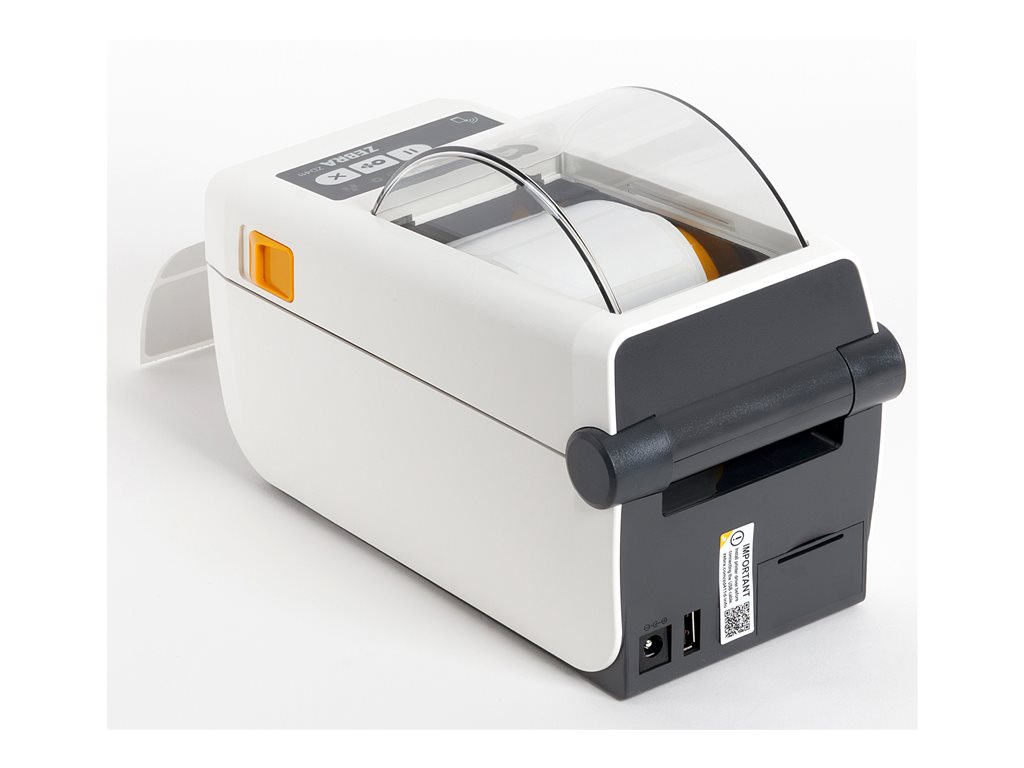

| Connections | 1 x USB 2.0 ¦ 1 x USB host |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Printer setup mobile app via BLE connection, UV-resistant, easy-to-clean surface |
| Compliant Standards | IEC 60950-1, EN55022 Class B, EN55024, EN 61000-3-2, EN61000-3-3, FCC Class B certified, ICES-003, FCC Part 15.209, RSS-247, EN 300 328, EN 301 893, EN 62311, cTUVus, VCCI, C-Tick, S Mark, CCC, CU, BSMI, KCC, SABS, INMETRO, BIS, NOM, FCC Part 15.247 |
| Printer | |
| Print Speed | Up to 359.1 inch/min - B/W - 203 dpi |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, USB host, Bluetooth 5.3, Wi-Fi(ax) |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL II, EPL2, ZPL, EPL, PDF Direct, Extensible Mark-up Language (XML), ZBI |
| Features | Realtime clock, transmissive/gap sensor |
| Fonts Included | 16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2 |
| Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT 128, UPC-A, UPC-E, EAN-8, EAN-13, UPC-2, UPC-5, Plessey, Postnet, Standard 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar, CODABLOCK, PDF417, Code 49, Data Matrix, MaxiCode, QR code, MicroPDF417, Aztec code |
| RAM | |
| RAM Installed (Max) | 256 MB |
| Technology / Form Factor | DDR3 SDRAM |
| Media Handling | |
| Media Type | Fanfold labels, die cut labels, continuous labels, tag stock, receipt paper, wristbands |
| Max Media Size | Roll (2.2 in) |
| Min Media Size (Custom) | 0.25 in x 0.25 in |
| Max Media Size (Custom) | 2.35 in x 39 in |
| Media Sizes | Roll (2.2 in) |
| Max Printing Width | 2.2 in |
| Media Thickness Range | 0.06 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 5 in |
| Roll Core Diameter | 1 in, 0.5 in, 1.5 in, 2 in, 3 in |
| Media Feeders | 1 x manual - 1 roll - Roll (2.2 in) |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Link-OS |
| Environmental Parameters | |
| Min Operating Temperature | 39.9 °F |
| Max Operating Temperature | 105.8 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Flash Memory | |
| Flash Memory | 512 MB |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 8.7 in |
| Height | 5.9 in |
| Weight | 2.2 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
