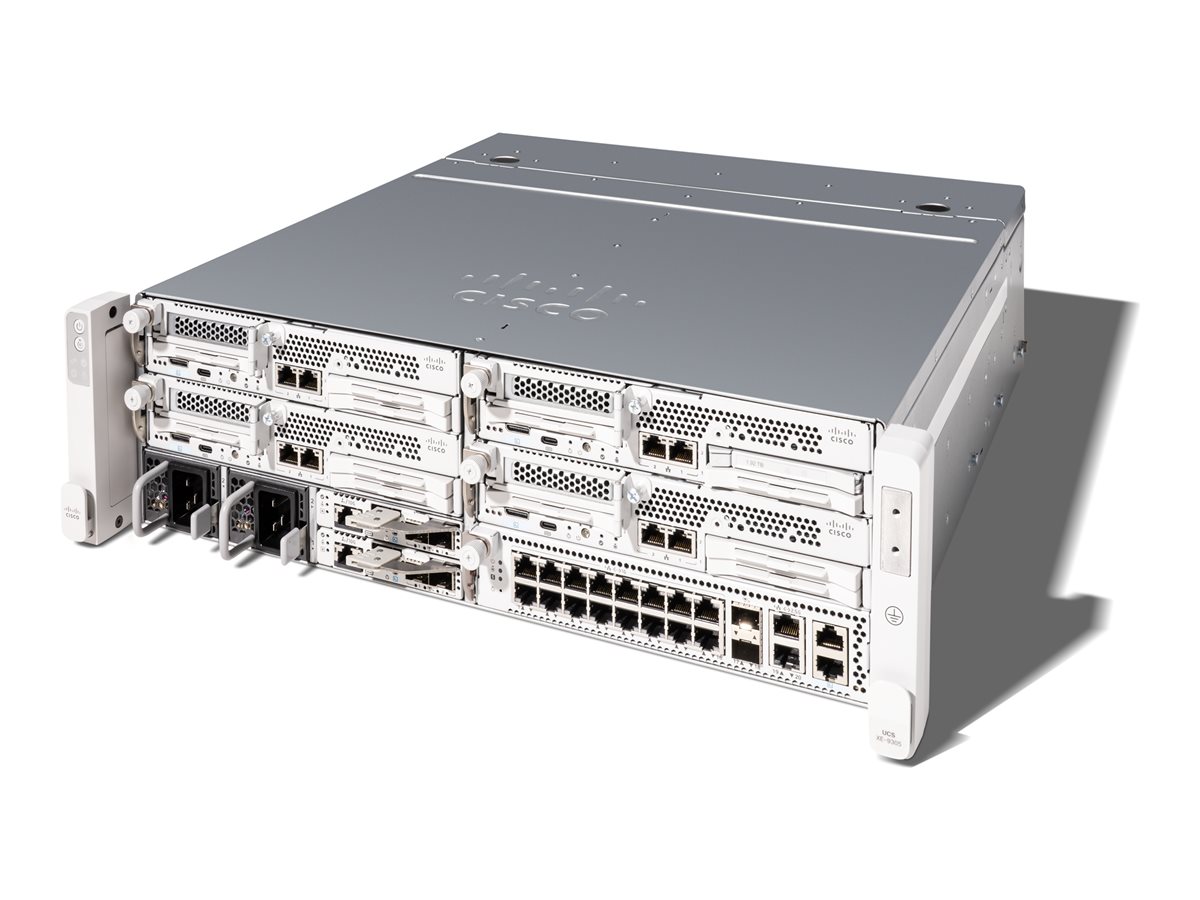

Rack-mountable 3U - up to 5 blades - power supply - hot-plug 2400 watt - for UCS XE130c M8
| Main Specifications | |
|---|---|
| Product Description | Cisco Compute Hyperconverged with Nutanix XE9305 - rack-mountable - 3U - up to 5 blades |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 3U |
| Supported Blades Qty | Up to 5 |
| Built-in Devices | RFID/NFC reader, 2 x Chassis Management Controller (CMC) |
| Power Device | Power supply - hot-plug 2400 watt |
| Power Redundancy | Yes |
| Voltage Required | (47 - 63 Hz) |
| Dimensions (WxDxH) | 17.3 in x 18 in x 5.1 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | UCS XE130c M8 |
| General | |
| Form Factor | Rack-mountable - 3U |
| Supported Blades Qty | Up to 5 |
| Built-in Devices | RFID/NFC reader, 2 x Chassis Management Controller (CMC) |
| Cooling System | 80 mm fan x 5 / hot-swap |
| Expansion / Connectivity | |
| Expansion Slots | 1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | 2004/108/EC, 47 CFR Part 15 Class A, AS/NZS 60950-1, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, Directive 2006/108/EC, EN 60950-1, GB 4943, IEC 60950-1, UL 60950-1, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN 61000-3-3, KN22 Class A, CNS 13438 Class A, EN 61000-6-1, CISPR 24, EN 300386, EN50082-1, EN55024, KN 61000-4, WEEE |
| Power | |
| Power Device | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+N |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Voltage Required | (47 - 63 Hz) |
| Power Provided | 2400 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Sound Emission | 40 dBA |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18 in |
| Height | 5.1 in |
| Compatibility Information | |
| Designed For | Cisco UCS XE130c M8 |
