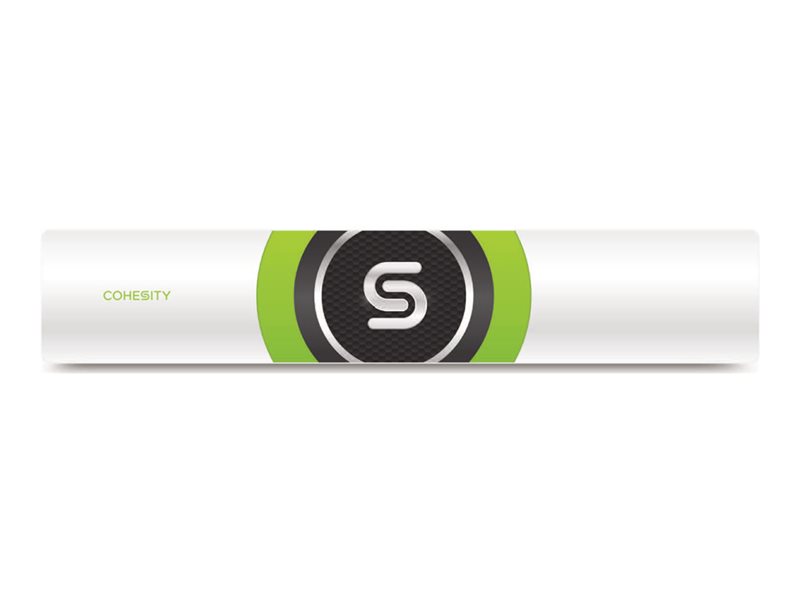

4 node block - NAS server - 300.8 TB - rack-mountable - HDD 72 TB x 4 + SSD 3.2 TB x 4 - RAM 512 GB - 100 Gigabit Ethernet - 2U
| Main Specifications | |
|---|---|
| Product Description | Cohesity C5200 Series C5224 - 4 node block - NAS server - 300.8 TB |
| Device Type | NAS server |
| Host Connectivity | 100 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 300.8 TB |
| Dimensions (WxDxH) | 17.2 in x 31.9 in x 3.4 in |
| Weight | 110.23 lbs () |
| Processor | 4 x Intel Xeon 1.6 GHz (28-core) |
| Hard Drive | 4 x 72 TB Secure Erase function |
| Hard Drive (2nd) | 4 x 3.2 TB PCI Express |
| Networking | 100GbE |
| RAM | 512 GB |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| General | |
| Device Type | NAS server |
| Host Connectivity | 100 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 300.8 TB |
| Width | 17.2 in |
| Depth | 31.9 in |
| Height | 3.4 in |
| Weight | 110.23 lbs () |
| Expansion / Connectivity | |
| Interfaces | Ethernet 100Gb |
| Miscellaneous | |
| Features | 4 nodes configuration |
| Compliant Standards | FCC Part 15, ICES-003, VCCI, RCM, UL, cUL, CB |
| Networking | |
| Data Link Protocol | 100GbE |
| Network / Transport Protocol | SMB v2, NFSv3, SMB v3 |
| Network Services Compatibility | Network File System v3 (NFS v3), Server Message Block 2.1 (SMB 2.1), Server Message Block 3.0 (SMB 3.0) |
| Features | TPM, Amazon S3 support, Google Nearline support, Microsoft Azure support, Amazon Glacier suport |
| Encryption Algorithm | 256-bit AES |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 895 watt |
| Power Provided | 2000 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Hard Drive | |
| Type | HDD |
| Capacity | 4 x 72 TB |
| Features | Secure Erase function |
| Processor / Memory | |
| Processors Installed | 4 x Intel Xeon 1.6 GHz |
| Number of Cores | 28-core |
| RAM | 512 GB DDR5 |
| Hard Drive (2nd) | |
| Type | SSD |
| Capacity | 4 x 3.2 TB |
| Interface Type | PCI Express |
