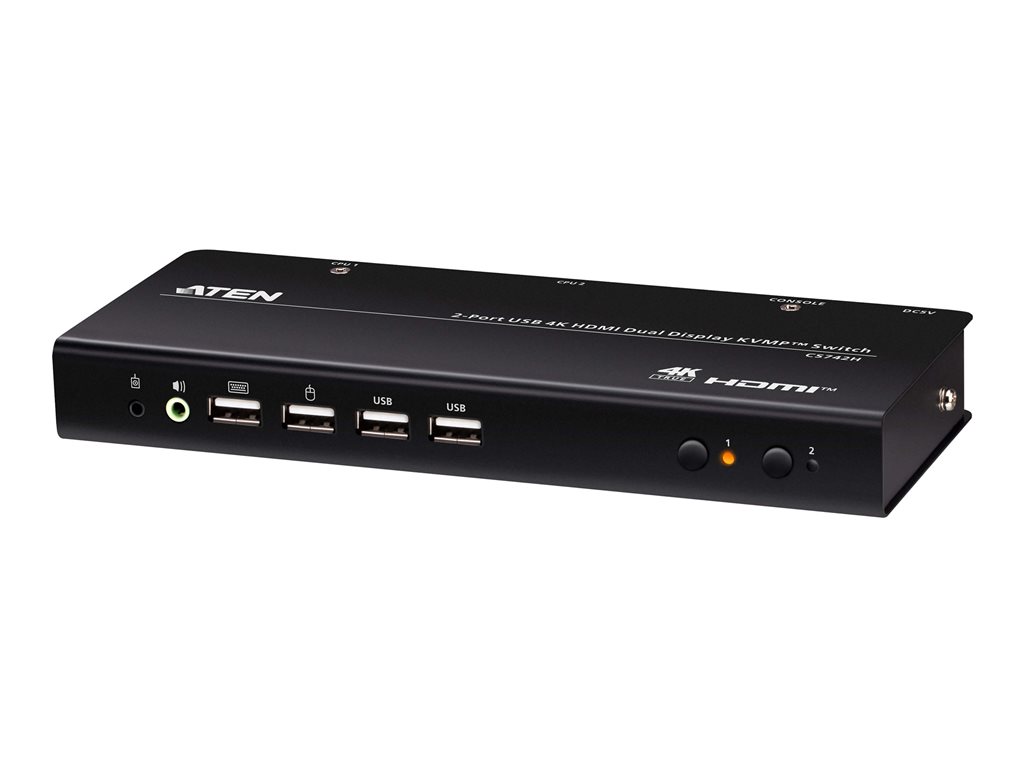

KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
| Main Specifications | |
|---|---|
| Product Description | ATEN CS742H - KVM / audio / USB switch - 2 ports |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | Video DynaSync, Auto Scan Mode, power on detection, hot-pluggable, firmware upgradable, 2 push buttons |
| Dimensions (WxDxH) | 8 in x 3.2 in x 1 in |
| Weight | 16.58 oz |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Video DynaSync, Auto Scan Mode, power on detection, hot-pluggable, firmware upgradable, 2 push buttons |
| Built-in Devices | USB hub |
| Status Indicators | Online |
| Expansion / Connectivity | |
| Interfaces | 2 x USB Type A console ¦ 2 x HDMI console ¦ 1 x audio mini-jack 2.5 mm console ¦ 2 x USB 2.0 Type B ¦ 4 x HDMI ¦ 1 x power input ¦ 2 x USB 2.0 Type A |
| Miscellaneous | |
| Included Accessories | 4 foot pads, remote port selector switch, power adapter |
| Cables Included | 4 x HDMI cable ¦ 2 x USB cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 3.2 in |
| Height | 1 in |
| Weight | 16.58 oz |
