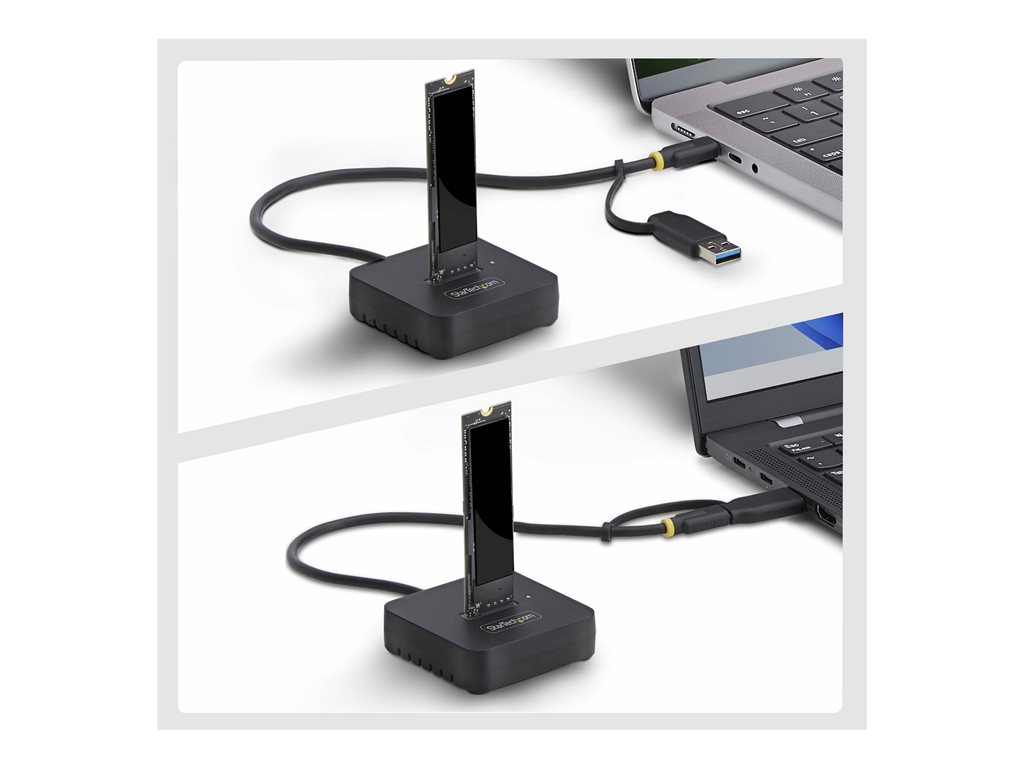

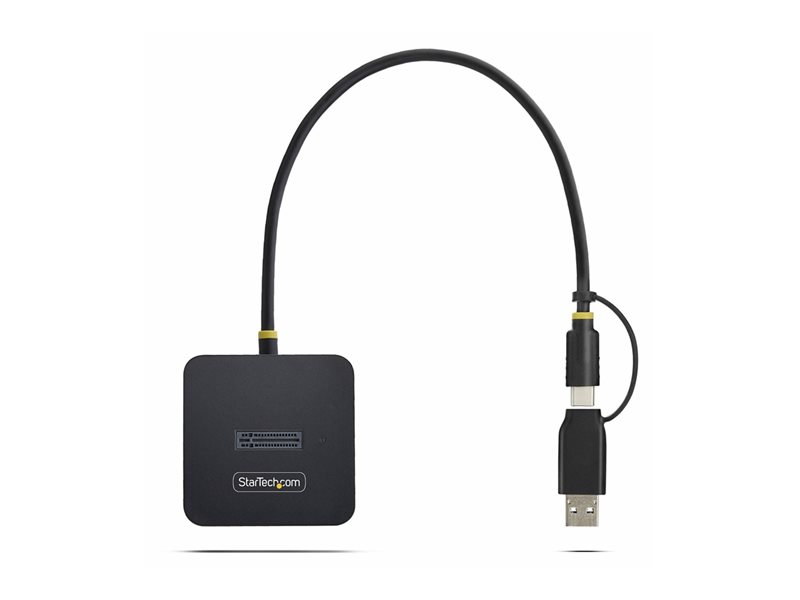

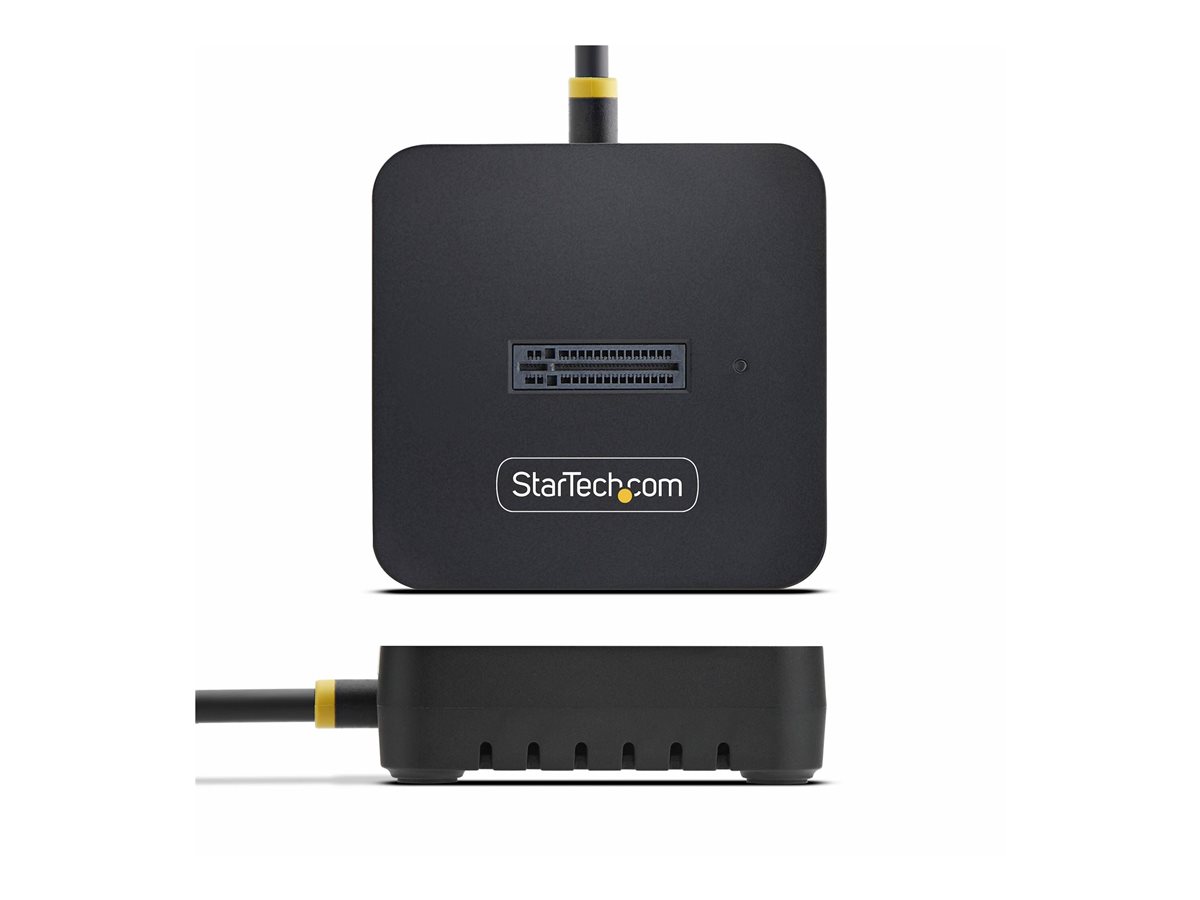

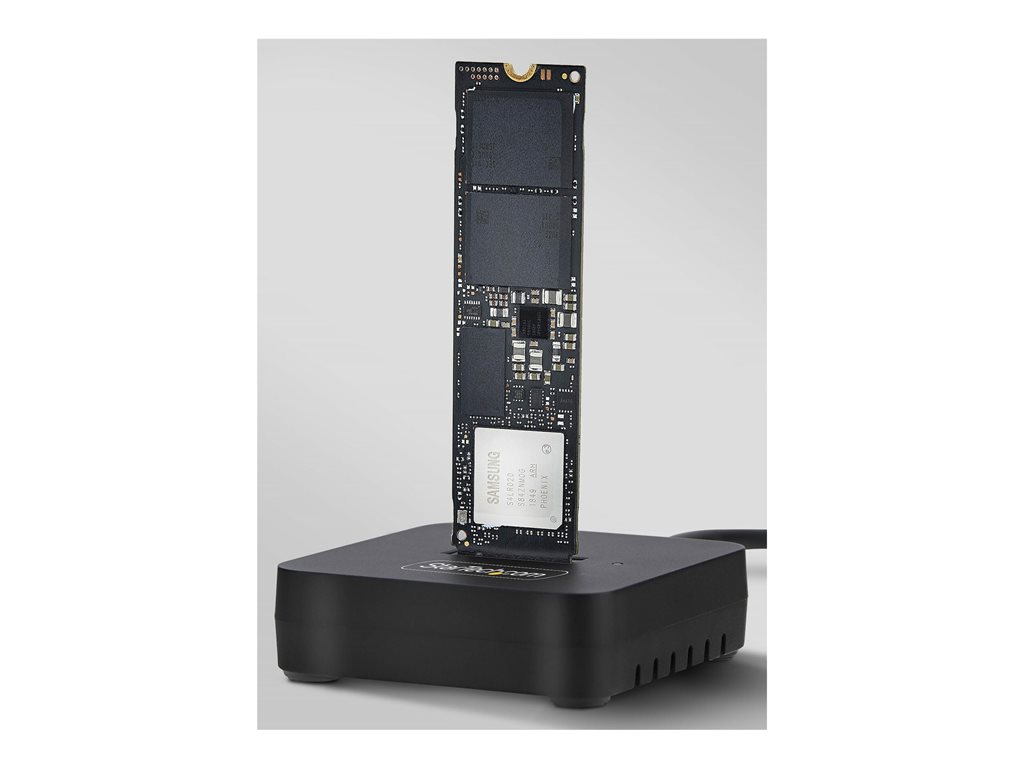

Interface adapter - M.2 2280, M.2 2242, M.2 2230, M.2 2260 - M.2 NVMe Card - USB 3.2 (Gen 2), USB-C 3.2 (Gen 2) - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - interface adapter - M.2 NVMe Card - USB 3.2 (Gen 2), USB-C 3.2 (Gen 2) - TAA Compliant |
| Device Type | Interface adapter - external |
| Bus Type | USB 3.2 (Gen 2), USB-C 3.2 (Gen 2) |
| Color | Black |
| Hard Drive Form Factor Compatibility | M.2 2280, M.2 2242, M.2 2230, M.2 2260 |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 10 Gbit/s |
| Supported Devices | Solid state drive |
| Product Material | 70% post-consumer recycled plastic |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.3 in x 15.9 in x 0.7 in |
| Weight | 2.02 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Interface adapter - external |
| Hard Drive Form Factor Compatibility | M.2 2280, M.2 2242, M.2 2230, M.2 2260 |
| Host Bus | USB 3.2 (Gen 2), USB-C 3.2 (Gen 2) |
| Product Material | 70% post-consumer recycled plastic |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x M.2 Card - M.2 B+M Key |
| Connections | 1 x USB-C 3.2 (Gen 2) - 24 pin USB-C ¦ 1 x USB 3.2 (Gen 2) - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

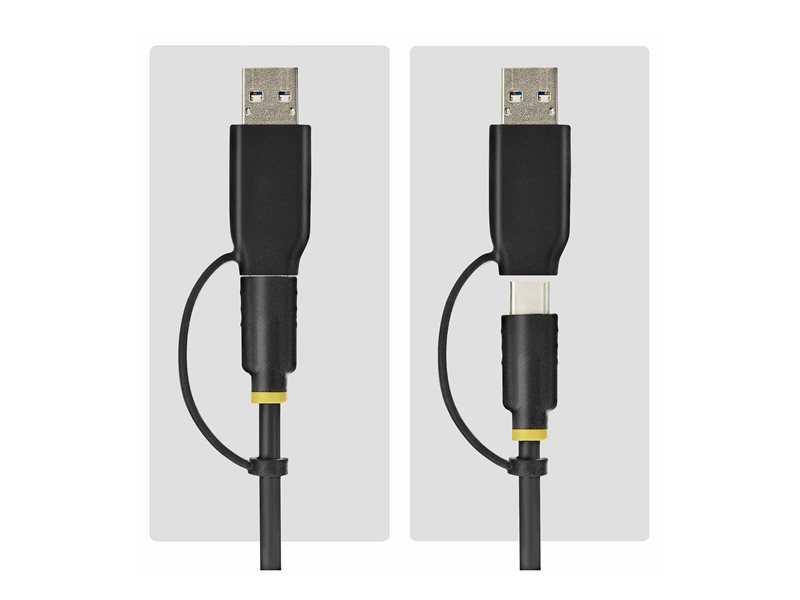

| Cables Included | 1 x USB-C cable - integrated - 1 ft ¦ 1 x USB-C to USB-A adapter |
| Features | Hot-swappable, fanless, LED indicator, S.M.A.R.T. support, 4K Native Sector support, bus powered, TRIM support, portable, lightweight, up to 10Gbps data transfer, compact, tool-free, UASP support |
| MTBF | 129,956 hours |
| Compliant Standards | RoHS, WEEE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH |
| Storage Controller | |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 10 Gbit/s |
| Supported Devices | Solid state drive |
| Processor | ASMedia ASM2362 |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 15.9 in |
| Height | 0.7 in |
| Weight | 2.02 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 3.84 oz |
| Environmental Standards | |
| TAA Compliant | Yes |
