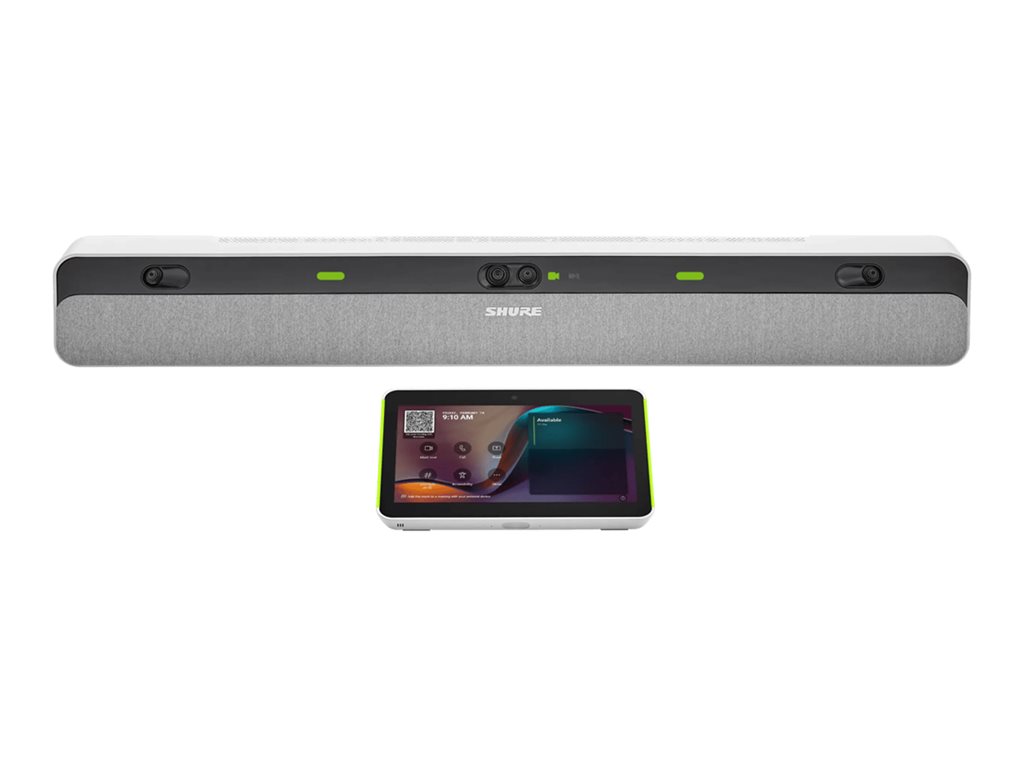

All-in-one video conference bar (video bar, IMXTP10 touch panel, PoE injector) - white - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Shure IntelliMix Pro Kit - power adapter included |
| Device Type | All-in-one video conference bar |
| Kit Content | Video bar, IMXTP10 touch panel, PoE injector |
| Display | 10" IPS / 1920 x 1200 |
| Video Input | Digital video camera |
| Video Output | GPU computing processor |
| Audio Input | Array microphone |
| Audio Output | Speaker(s) - stereo |
| Input Device | Touchscreen (wired) |
| PC Configuration | Qualcomm QCS8250/12GB RAM/128 SSD |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 LE |
| Power | AC 100-240 V (50/60 Hz) |
| System Requirements | Android 13 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | All-in-one video conference bar |
| Kit Content | Video bar, IMXTP10 touch panel, PoE injector |
| Dimensions & Weight Details | Touch console - Width 9.7 in Depth 2.4 in Height 7.2 in Weight 35.2 oz ¦ Video bar - Width 36.2 in Depth 3.7 in Height 4.8 in Weight 13.2 lbs |
| Built-in Devices | 8.0 megapixel CMOS camera, 24 microphone array, stereo speakers, PoE switch, PIR sensor |
| Enclosure Color | White |
| Expansion / Connectivity | |
| Interfaces | 1 x touch screen - Ethernet - RJ-45 ¦ 1 x touch screen - 24 pin USB-C ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 3 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 4 x audio / network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Audio - terminal block ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB-C 3.0 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 2 x HDMI cable - 6.6 ft ¦ 1 x USB-C cable - 6.6 ft ¦ 2 x network cable - 10 ft |
| Included Accessories | Wall mount kit, power cable (1m), camera cover, terminal block, cable ties, cable covers, allen wrench, power cable (1.8m) |
| Compliant Standards | FCC Part 15, CAN ICES-3 Class A, NMB-003 Class A, UKCA, EAC, NOM, R-NZ, KCC, ANATEL, RoHS, Morocco Mark, WEEE, BIS |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 LE |
| Features | Zero-touch provisioning (ZTP), Digital Signal Processing, Cat 5, Cat 6 |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 110 Watt |
| Software / System Requirements | |
| Software Included | ShureCloud |
| OS Required | Android 13 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Audio Output | |
| Type | Speaker(s) |
| Sound Output Mode | Stereo |
| Frequency Response | 120 - 20000 Hz |
| Audio Input | |
| Type | Array microphone - integrated |
| Frequency Response | 27 - 20000 Hz |
| Input Device | |
| Type | Touchscreen |
| Connectivity Technology | Wired |
| Features | PoE support, kickstand, sleep mode |
| Display | |
| Technology | IPS |
| Diagonal Size | 10" |
| Native Resolution | 1920 x 1200 |
| Monitor Features | Built-in table stand, infrared user sensor, capacitive touch screen |
| Video Input | |
| Type | Digital video camera (color) - integrated |
| Digital Video Capture Resolution | 3840 x 2160 |
| Video Modes | 4K |
| Digital Zoom | 9 |
| Camera Mechanical Design | Fixed |
| Features | AI auto framing, 8 megapixels image sensor, 1/1.8 CMOS image sensor type, 74° field of view (horizontal), 45° field of view (vertical), 82° diagonal field of view, 112° horizontal field of view (wide), 73° vertical field of view (wide), 121° diagonal field of view (wide), Microsoft MDEP compatible, AI-powered, spatial audio, wide-angle lens, telephoto lens, Microsoft Teams compatible |
| Video Output | |
| Type | GPU computing processor - external |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| PC Configuration | Qualcomm QCS8250/12GB RAM/128 SSD |
