Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

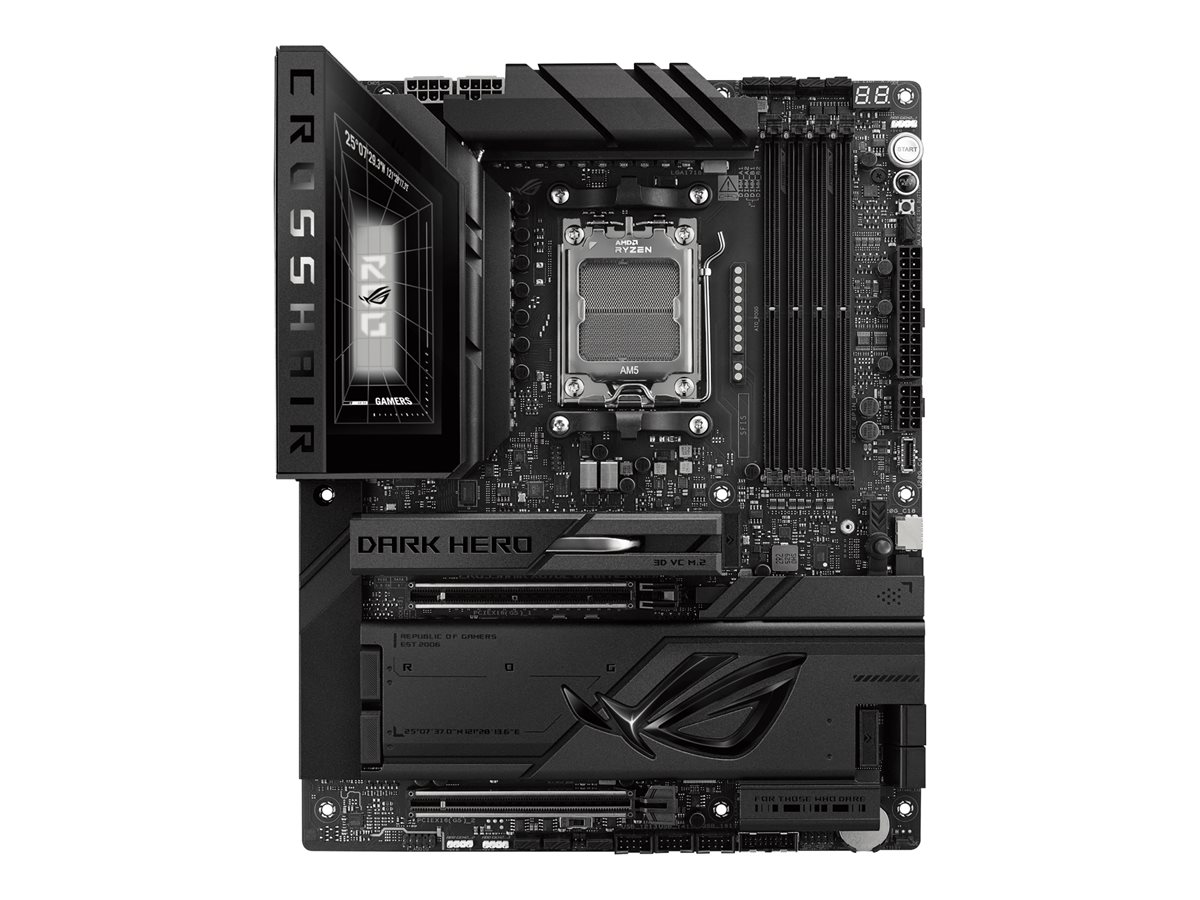

| Product Description | ASUS ROG CROSSHAIR X870E DARK HERO - motherboard - ATX - Socket AM5 - AMD X870E |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 5 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 3 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + (2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2230 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | AMD RAID Xpert2 Technology |
| Interfaces | 2 x USB4 ¦ 6 x USB 3.2 Gen 2 ¦ 3 x USB-C 3.2 Gen 2 ¦ 1 x HDMI ¦ 2 x antenna ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories | 3 x M.2 Q-Slide, 5 x M.2 backplate rubber package, ASUS Wi-Fi Q-antenna, DDR5 fan holder, Q-Connector, ROG bottle opener, ROG stickers, ROG VIP card, thermal pad for M.2 SSD, ROG assistant fan (60 mm), screw package for cooling kit |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year license), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, BullGuard Internet Security (1 year license), HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial) |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4082) |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, Start button, ReTry button, FlexKey button, BIOS FlashBack button, Clear CMOS Button, AI Cooling II, AI Overclocking, ASUS Aura Sync, ASUS EZ DIY, Q-Antenna, Polymo Lighting II, AI Cache Boost, 20+2+2 Phase Power Design, ASUS Q-Connector, AI Networking II, ASUS Asynchronous Clock, ASUS ProCool II, Core Flex technology, 3D VC M.2 heatsink, M.2 Q-Release, M.2 Q-Latch, M.2 Q-Slide, Q-Code, VRM heatsink design, chipset heatsink, ASUS Extreme OC Kit, ASUS Extreme Engine Digi+, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, M.2 heatsink, metal backplate, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Dashboard, Q-LED, Q-Slot |
| LAN | |
| Network Controller | Mediatek MT7927 |
| Network Interfaces | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9200 MT/s (O.C.), 8000 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology |
