Network surveillance camera - multi-sensor + pan / tilt - dome - color (Day&Night) - 13 MP - 5120 x 2592 - fixed focal - audio - GbE - USB-C - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4
| Main Specifications | |
|---|---|

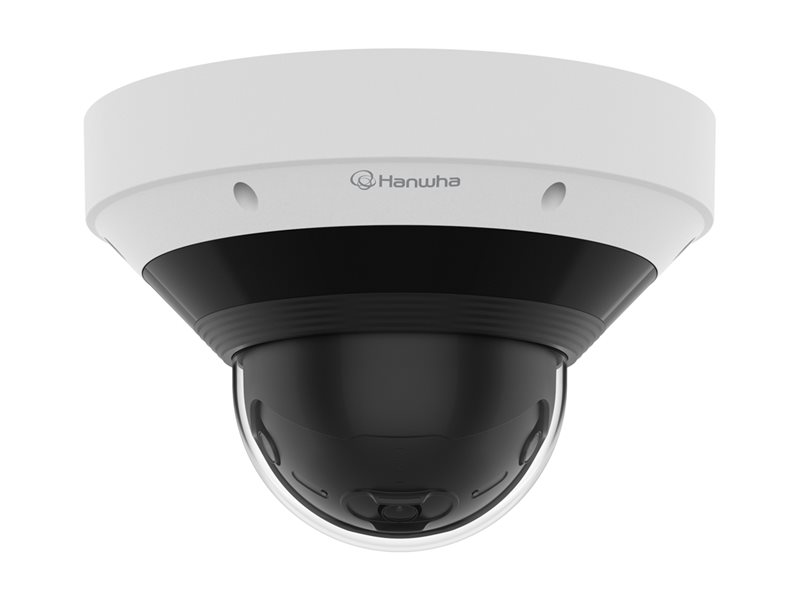

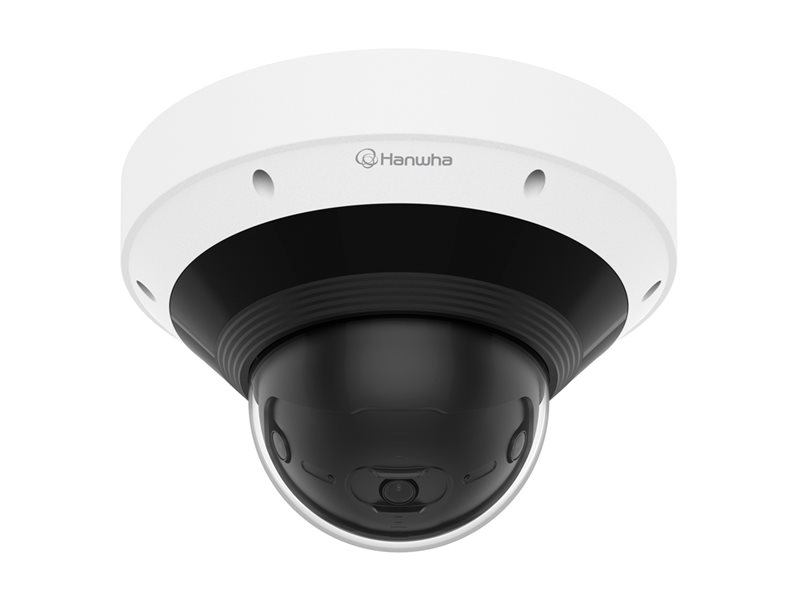

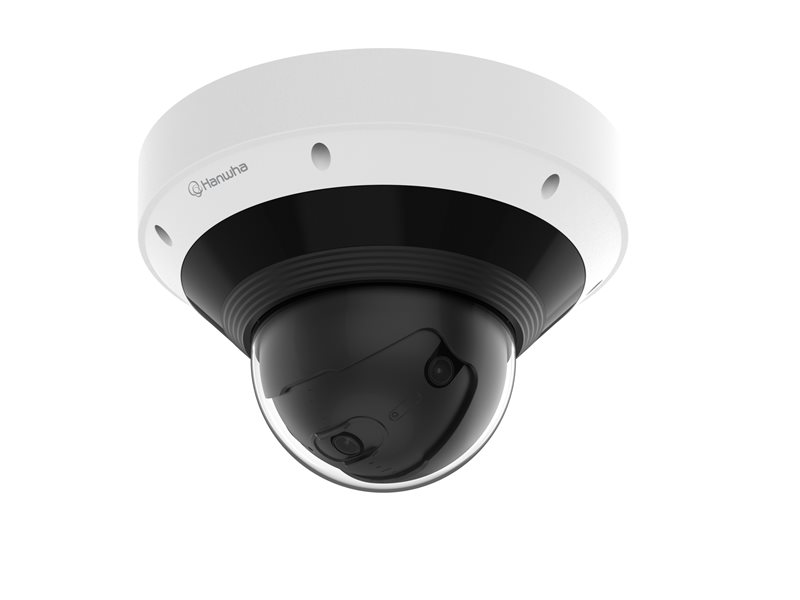

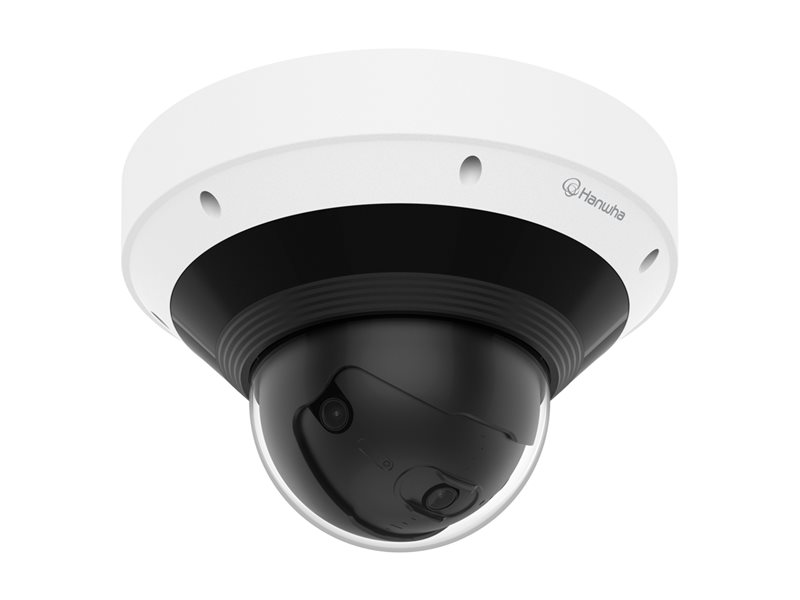

| Product Description | Hanwha Vision PNM-A13022RV - network surveillance camera - dome |
| Device Type | Network surveillance camera - multi-sensor + pan / tilt - dome |
| Audio | Yes |
| Dimensions (WxDxH) | 10 in x 10 in x 6.7 in |
| Weight | 6.17 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 5120 x 2592 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 3 x 1/2.8" - 13 MP |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.01 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 3.06 mm |
| Focus Adjustment | Fixed focus (min distance 2 in) |
| Lens Iris | F/1.6 |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 50 |
| Interfaces | USB-C Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 12 V / PoE Plus Class 4 |
| Features | Image stitching, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Privacy Mask Function, vertical flip and mirror, anti-flicker, object classification, FTP alerts, e-mail alerts, Handover, trigger recording, clothes color detection, vehicle recognition, face analytics, Defocus Detection, Object Detection, Virtual Line detection, enter area detection, exit area detection, loitering detection, intrusion detection, mask detection, social distancing detection, tamper-detection, Audio Detection, appearing / disappearing detection, people counting, queue management, Heat Map, crowd counting, vehicle counting, Unicast Streaming, Multicast Streaming, IP address filtering, user access log, digest authentication, Trusted Platform Module (TPM), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, 2 microSD card slots, aluminum enclosure, hard-coated dome |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 10 in |
| Depth | 10 in |
| Height | 6.7 in |
| Weight | 6.17 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | FIPS 140-2, EAP-TLS, LEAP, PEAP, MSCHAPv2 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, IEEE 802.11at, EN 62676-4, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, UKCA, RCM |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - multi-sensor + pan / tilt |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 5120 x 2592 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.01 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 5120 x 2592, 4112 x 2080, 3240 x 1640, 2940 x 1488, 2560 x 1296, 2016 x 1016, 1600 x 800, 1424 x 720, 1280 x 648, 1016 x 512, 832 x 480, 832 x 416, 800 x 600, 640 x 480 |
| Frame Rate (max) | 30 frames per second |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Features | Image stitching, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Privacy Mask Function, vertical flip and mirror, anti-flicker, object classification, FTP alerts, e-mail alerts, Handover, trigger recording, clothes color detection, vehicle recognition, face analytics, Defocus Detection, Object Detection, Virtual Line detection, enter area detection, exit area detection, loitering detection, intrusion detection, mask detection, social distancing detection, tamper-detection, Audio Detection, appearing / disappearing detection, people counting, queue management, Heat Map, crowd counting, vehicle counting, Unicast Streaming, Multicast Streaming, IP address filtering, user access log, digest authentication, Trusted Platform Module (TPM), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, 2 microSD card slots, aluminum enclosure, hard-coated dome |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 3.06 mm |
| Lens Iris | F/1.6 |
| Focus Adjustment | Fixed focus |
| Min Focus Distance | 2 in |
| Horizontal Field of View (degree) | 194 |
| Vertical Field of View (degree) | 93 |
| Image Sensor | |
| Type | 13 MP CMOS 3 x 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | SUNAPI, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT, TCP, SNMP 1, SNMP 2c, SNMP 3, TLS |
| Computer Interface | USB-C |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 50 |
