Server - rack-mountable 1U - 1 x EPYC 9115 - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - G200e - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none - remanufactured
| Main Specifications | |
|---|---|

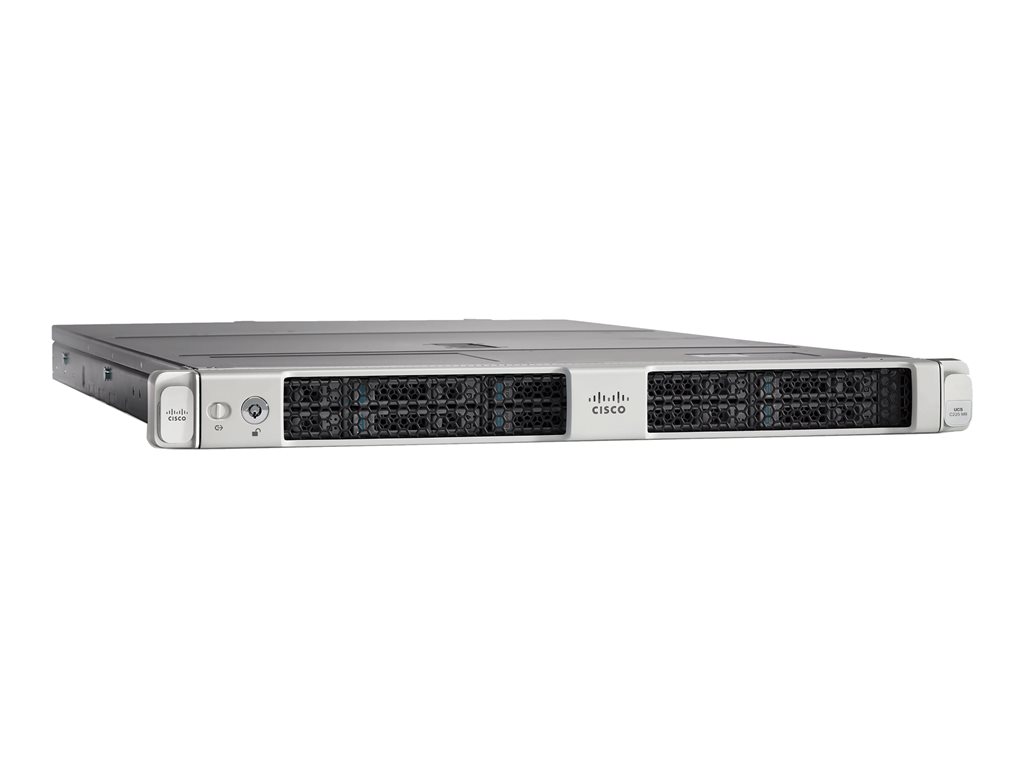

| Product Description | Cisco Secure Network Server 3815 - rack-mountable EPYC 9115 2.6 GHz - 64 GB - no HDD - remanufactured |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Processor | 1 x AMD EPYC 9115 / 2.6 GHz (16-core) |
| RAM | 64 GB DDR5 SDRAM - PC5-25600 |
| Storage Controller | RAID (SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Networking | 1GbE, 10GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| Software Included | Cisco Identity Services Engine |
| Dimensions (WxDxH) | 16.9 in x 30 in x 1.7 in |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | Limited warranty - replacement - 90 days - response time: 10 days |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 8 hot-swap fans |
| Sensors | Temperature |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Front Accessible Bays Qty | 10 |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0 ¦ 3 (total) / 2 (free) x PCIe x16 - half-height (riser card only) |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 4 x LAN (10Gigabit Ethernet) - SFP ¦ 1 x KVM ¦ 1 x serial (RS-232) - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x VGA - DB-15 ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 90 days - response time: 10 days |
| Miscellaneous | |
| Included Accessories | Power supply blanking panel, 9 x SFF drive blanking panels |
| Cables Included | NVMe cable |
| Compliant Standards | AS/NZS 62368.1, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CNS 15598-1:2020, GB 4943.1-2022, IEC/EN 60950-1, IEC/EN 62368-1, UL 60950-1, UL 62368-1, AS/NZS CISPR32 Class A, CISPR 32 Class A, EN55032 Class A, EN61000-3-3, KS C 9832 Class A, EN 300386 Class A, 47 CFR Part 15 Class A, EN 61000-3-2, ICES-003 Class A, VCCI-CISPR 32 Class A, EN55035, EN55024, KS C 9835, CISPR 24, CISPR 35, EN 300386, IEC/EN 61000-6-1, FIPS 140-2 |
| Pricing Type | Remanufactured |
| RAM | |
| Installed Size | 64 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Memory Specification Compliance | PC5-25600 |
| Features | Registered |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet SFP |
| Ethernet Controller | Intel X710 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Controller | Cisco Integrated Management Controller, Intel Baseboard Management Controller (BMC) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Sound Emission | 40 dBA |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Interfaces | VGA |
| Operating System / Software | |
| Software | Cisco Identity Services Engine |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 30 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | AMD EPYC 9115 |
| Clock Speed | 2.6 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
