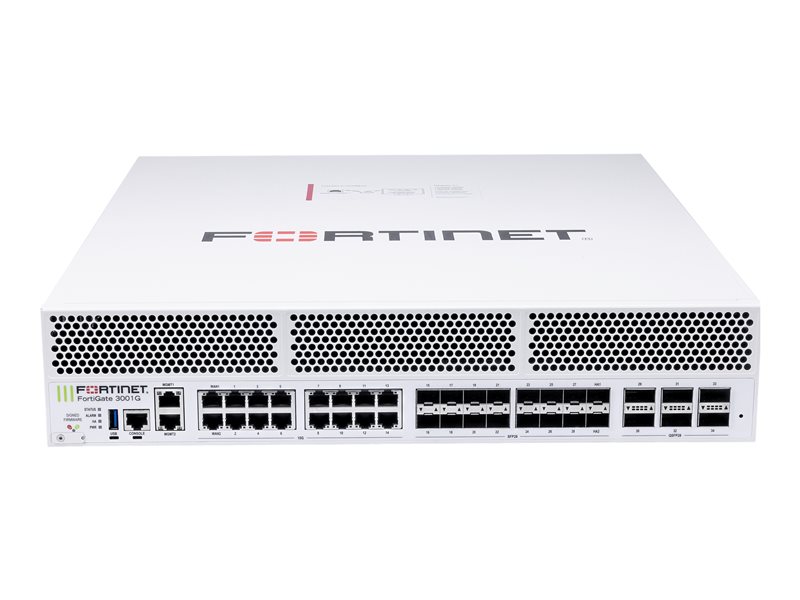

Security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP) - 38 ports - 25GbE, 40GbE, 100GbE - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiGate 3000G - security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP) |
| Device Type | Security appliance |
| Bundled Services | 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP) |
| Form Factor | Rack-mountable - 2U |
| Processor | 1 x Fortinet FortiASIC NP7 |
| Ports Qty | 38 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | IPS throughput: 90 Gbps ¦ NGFW throughput: 85 Gbps ¦ Threat protection throughput: 80 Gbps |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 19.5 in x 3.5 in |
| Weight | 33.73 lbs |
| General | |
| Device Type | Security appliance |
| Bundled Services | 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP) |
| Height (Rack Units) | 2U |
| Width | 17.2 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 33.73 lbs |
| Expansion / Connectivity | |
| Interfaces | 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28 ¦ 16 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 14 x 1Gb Ethernet/10Gb Ethernet - RJ-45 ¦ 2 x 1/2.5/5/10 Gigabit Ethernet - RJ-45 (WAN) ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45 ¦ 1 x USB ¦ 1 x console |
| Miscellaneous | |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Compliant Standards | ANATEL, BSMI, cUL, FCC Part 15 B Class A, IPv6, ISED, PSE Mark, UL, USGv6, VCCI |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 38 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | IPS throughput: 90 Gbps ¦ NGFW throughput: 85 Gbps ¦ Threat protection throughput: 80 Gbps |
| Status Indicators | Status, alarm, HA, power |
| Features | Intrusion Prevention System (IPS), SSL inspection, Virtual Extensible LAN (VXLAN), DDoS Protection, Zero-touch provisioning (ZTP), Trusted Platform Module (TPM), Zero Trust Network Access (ZTNA) |
| Encryption Algorithm | SSL, TLS 1.3 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 550 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Fortinet FortiASIC NP7 |
