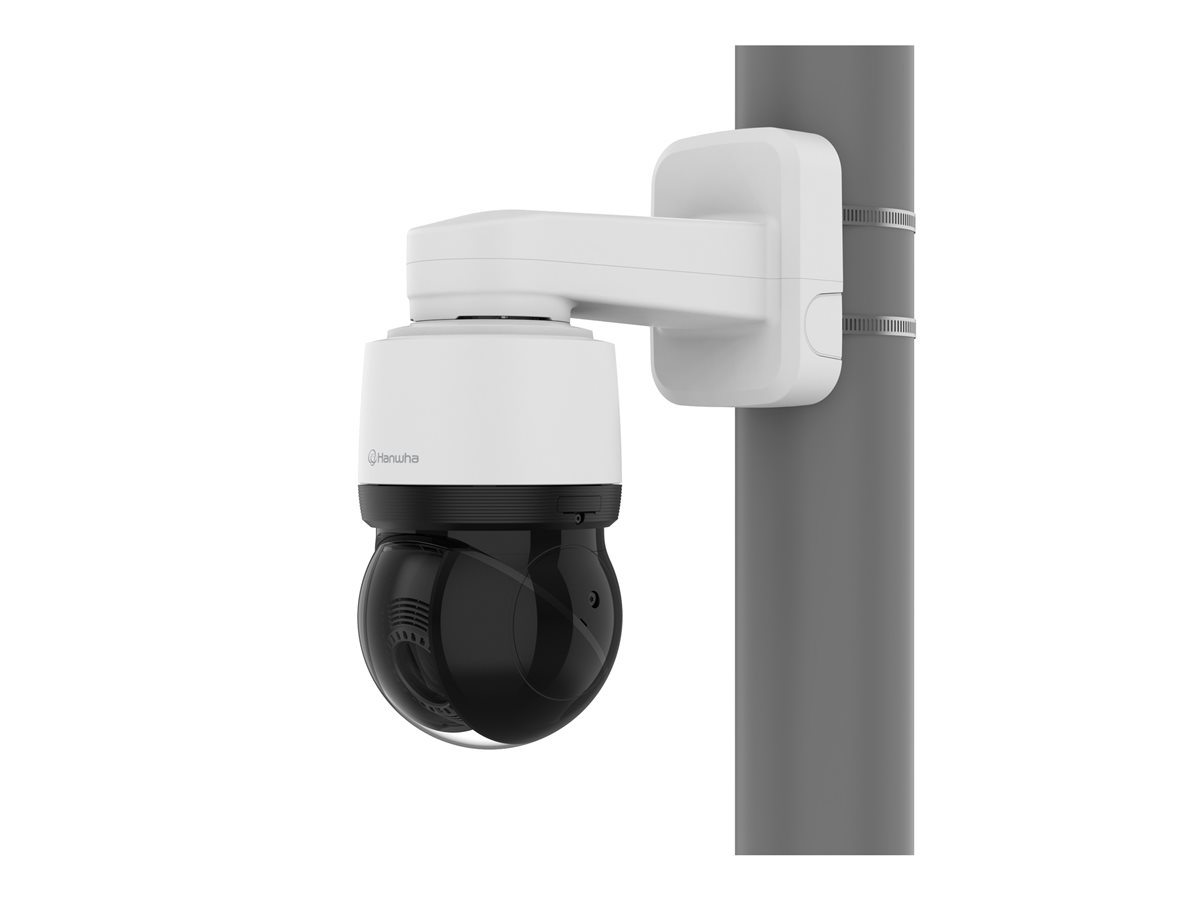

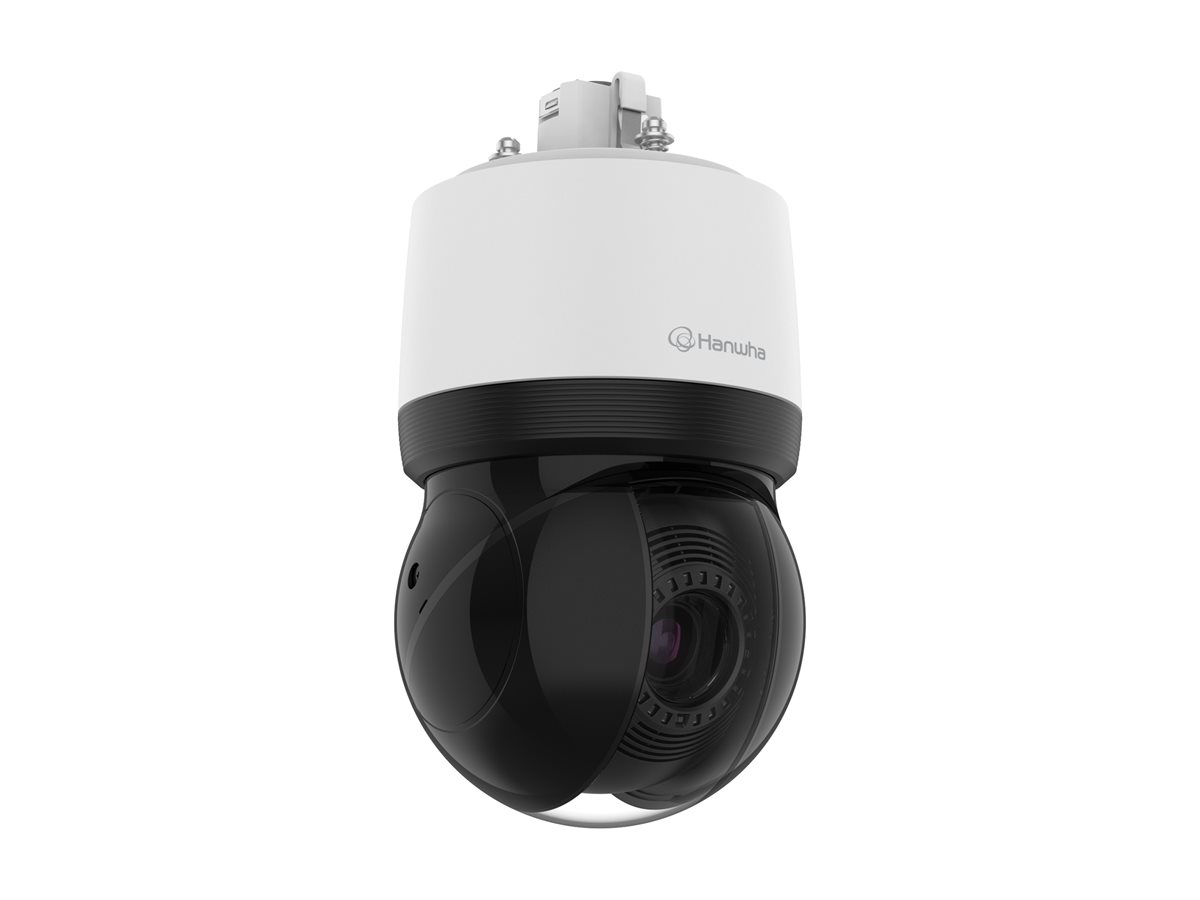

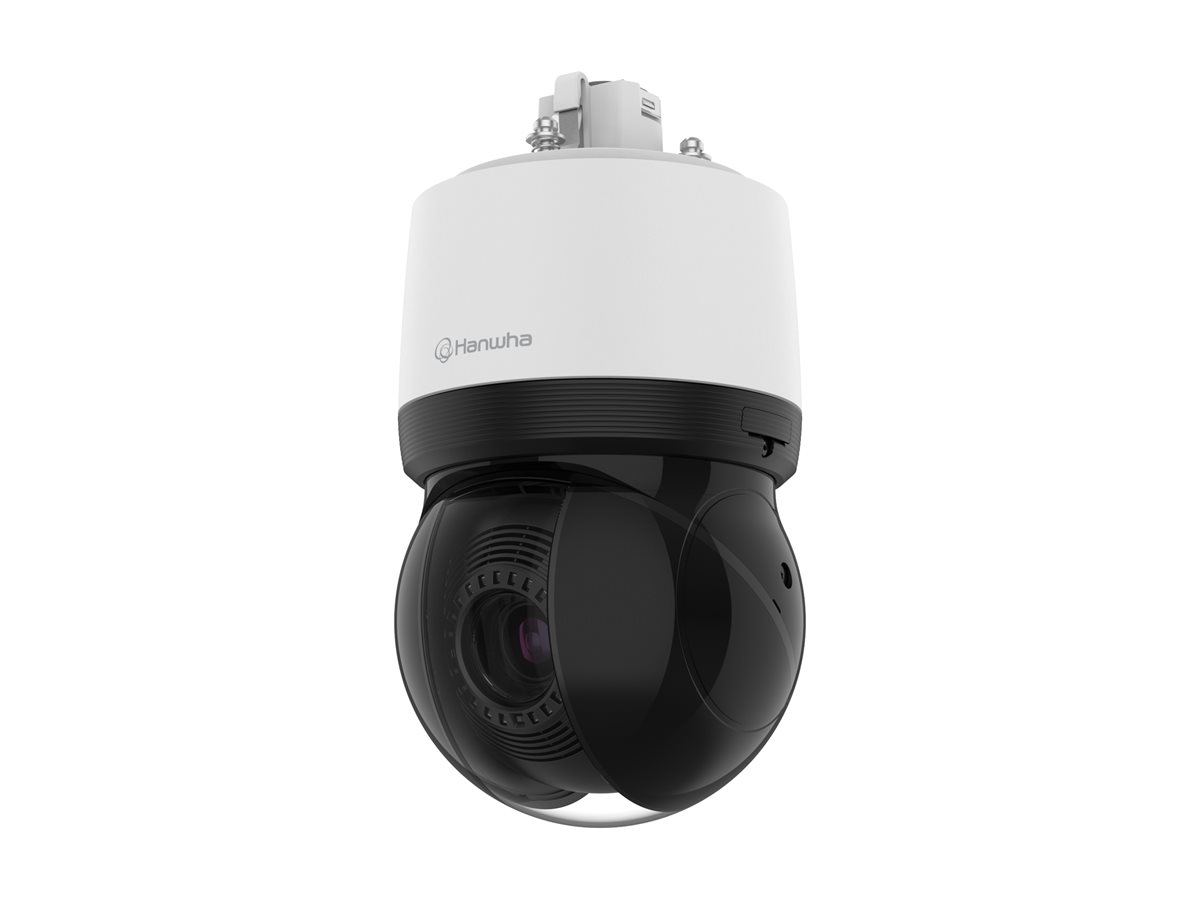

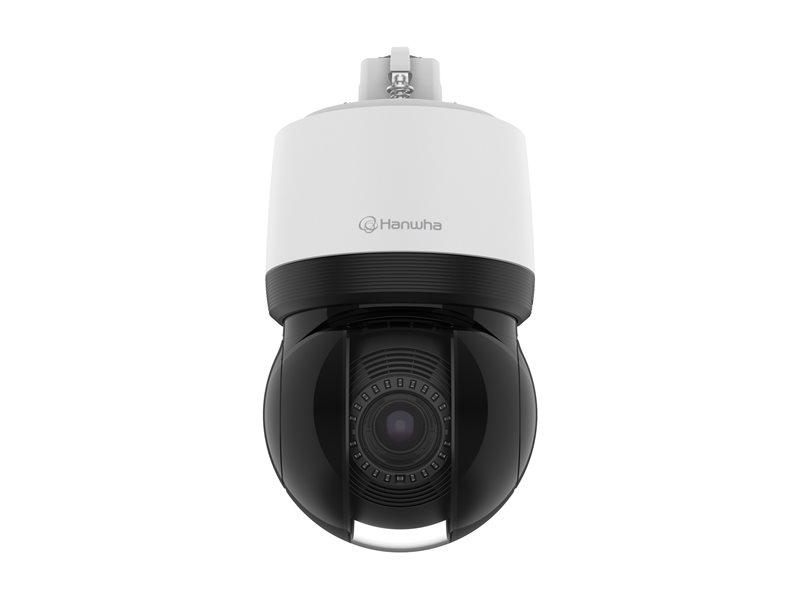

Network surveillance camera - PTZ - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - LAN 10/100 - MJPEG, H.264, H.265 - High PoE Class 6 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision XNP-C6403R - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Dimensions (WxDxH) | 6.2 in x 6.2 in x 11.5 in |
| Weight | 7.05 lbs |
| Color | White, black, RAL 9003, RAL 9005 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 40 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.05 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.25 mm - 170 mm |
| Focus Adjustment | Automatic, manual (min distance 16.4 ft) |
| Lens Iris | F/1.6-4.95 - auto iris (DC) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -20 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | High PoE Class 6 |
| Features | Lens heater, spin dry, WiseStream II support, Digital Image Stabilization (DIS), built-in gyroscope, azimuth display, Object Tracking, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, Virtual Line detection, entrance / exit detection, loitering detection, direction detection, intrusion detection, Defocus Detection, motion detection, tamper-detection, fog detection, Audio Detection, sound classification, Target lock tracking, TPM 2.0 module, 300 preset positions, auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, Samsung Super Noise Reduction (SSNR) V, Defog, Privacy Mask Function, adjustable gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, image flip, image mirror, Variable Bitrate (VBR), Constant Bitrate (CBR), Smart Codec, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, secure boot, firmware encryption, signed firmware, digest authentication, IP address filtering, DORI coverage, aluminum housing, polycarbonate housing, hard-coated dome, Multicast Streaming, appearing / disappearing detection |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -40 °F - 165.2 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 6.2 in |
| Depth | 6.2 in |
| Height | 11.5 in |
| Weight | 7.05 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IP66, IK10, NEMA Type 4X, NEMA TS-2 (2.2.8-2.2.9), FIPS 140-2 Level 2, FCC, cULus, CE/EAC, NDAA, IEEE 802.1x, IEEE 802.3at |
| Color | White, black, RAL 9003, RAL 9005 |
| Power | |
| Power Requirements | High PoE Class 6 |
| Power Device | 24 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 165.2 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared Distance | 656 ft |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 60 frames per second |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Features | Lens heater, spin dry, WiseStream II support, Digital Image Stabilization (DIS), built-in gyroscope, azimuth display, Object Tracking, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, Virtual Line detection, entrance / exit detection, loitering detection, direction detection, intrusion detection, Defocus Detection, motion detection, tamper-detection, fog detection, Audio Detection, sound classification, Target lock tracking, TPM 2.0 module, 300 preset positions, auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme WDR, Samsung Super Noise Reduction (SSNR) V, Defog, Privacy Mask Function, adjustable gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, image flip, image mirror, Variable Bitrate (VBR), Constant Bitrate (CBR), Smart Codec, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, secure boot, firmware encryption, signed firmware, digest authentication, IP address filtering, DORI coverage, aluminum housing, polycarbonate housing, hard-coated dome, Multicast Streaming, appearing / disappearing detection |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 40 x |
| Focal Length | 4.25 mm - 170 mm |
| Lens Iris | F/1.6-4.95 auto iris (DC) |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 16.4 ft |
| Horizontal Field of View (degree) | 1.88 - 65.66 |
| Vertical Field of View (degree) | 1.09 - 39.4 |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 700 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 500 |
