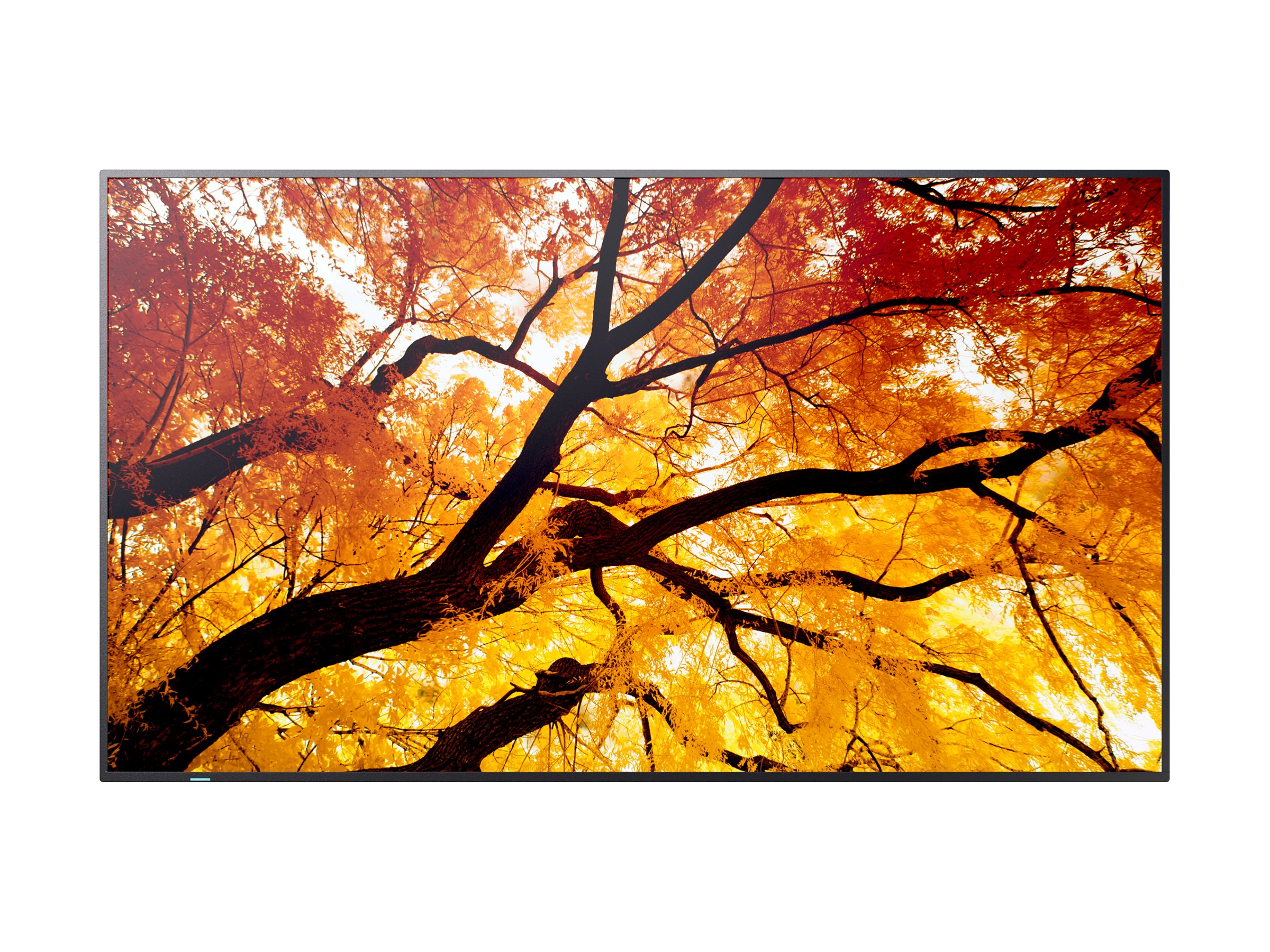

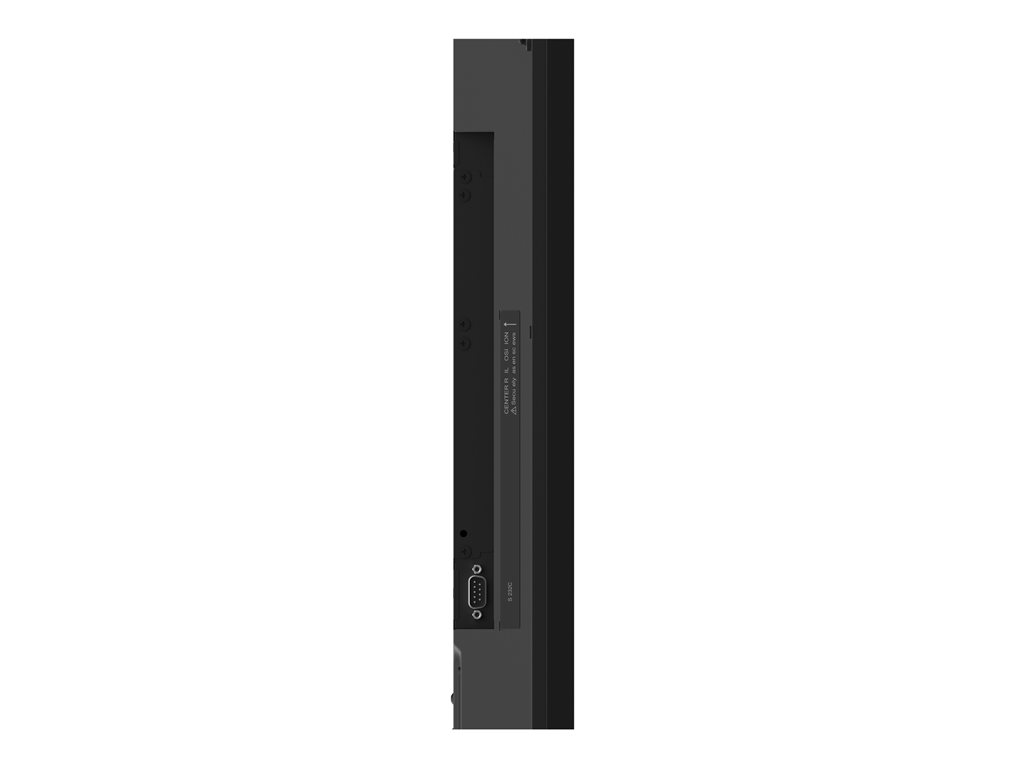

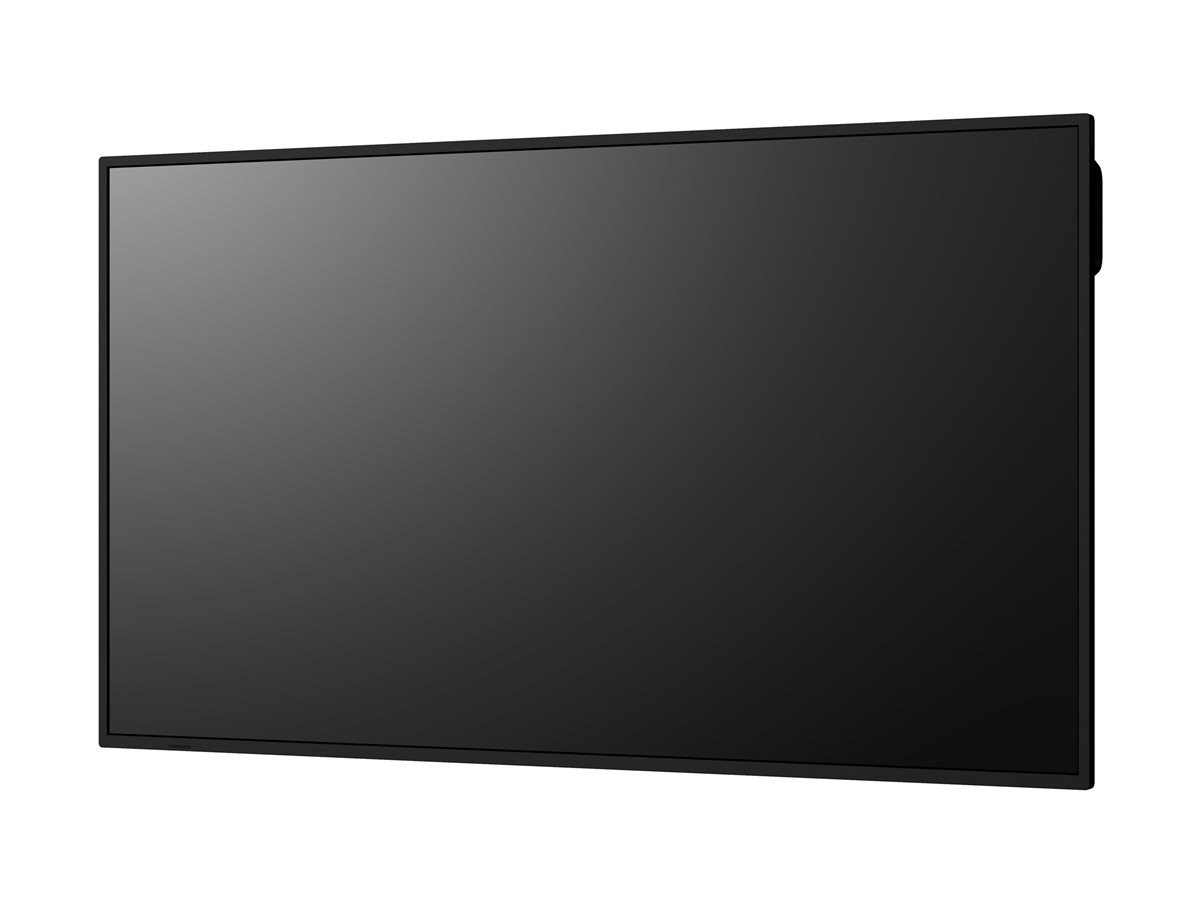

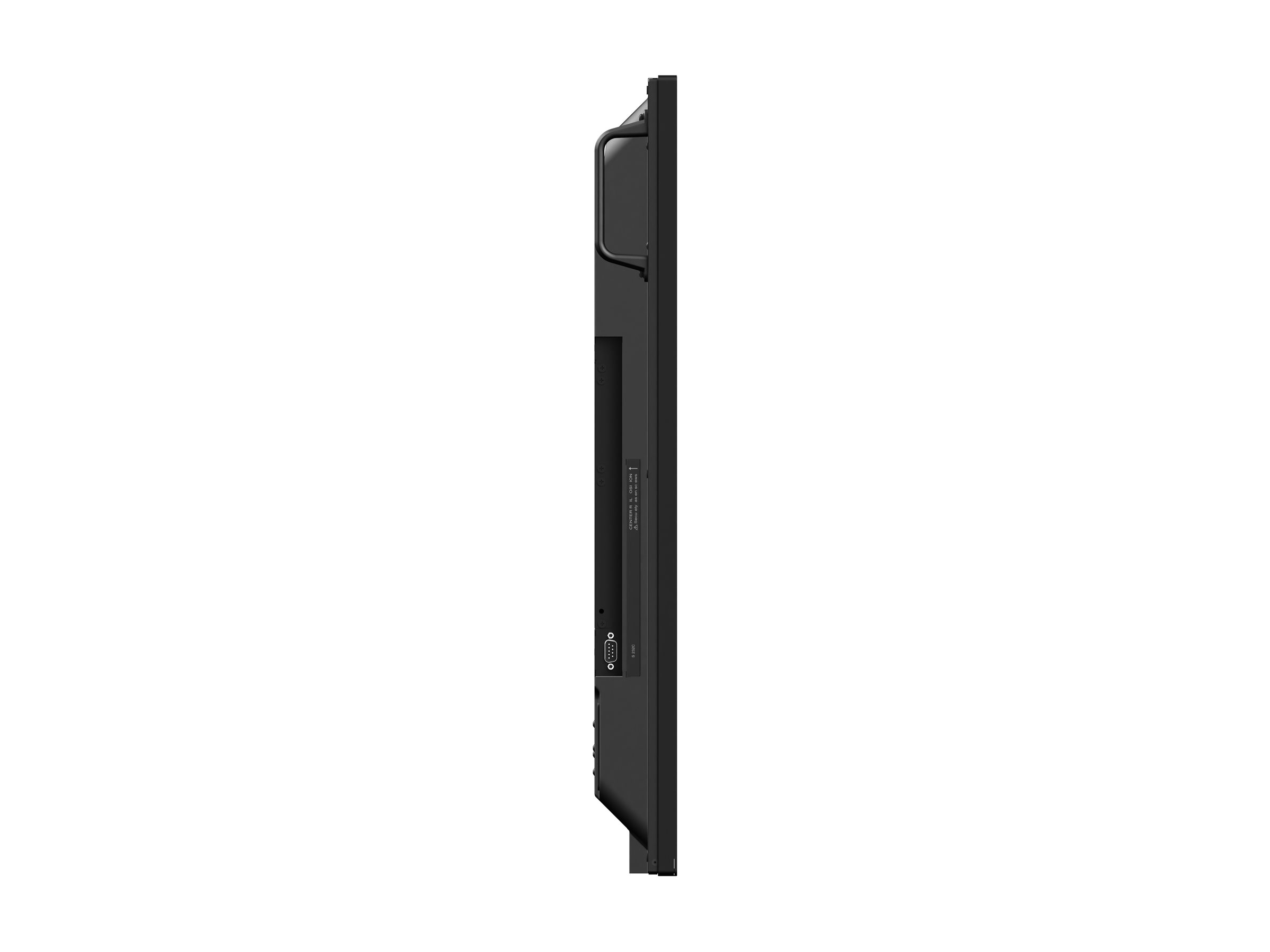

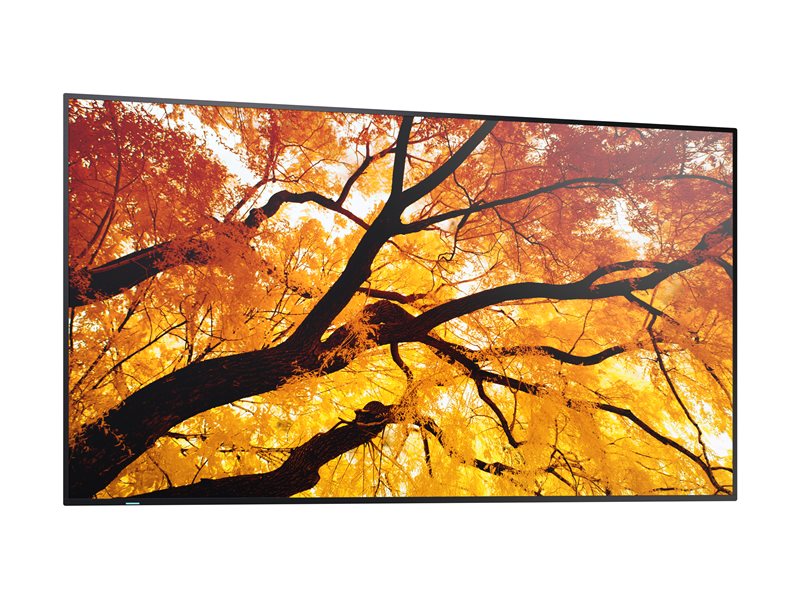

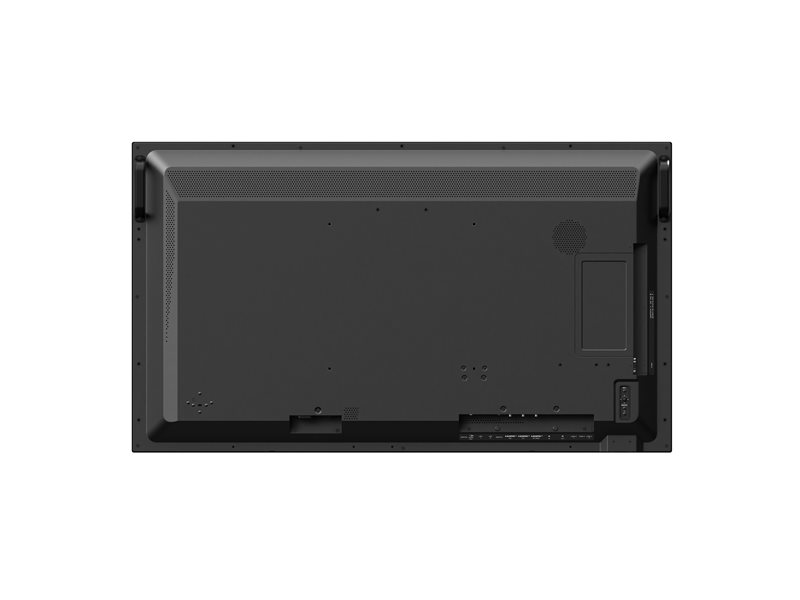

50" Diagonal Class (49.5" viewable) - PN-M Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - HDR - direct-lit LED
| Main Specifications | |
|---|---|
| Product Description | Sharp MultiSync PN-M502 PN-M Series - 50" Class (49.5" viewable) LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926063 |
| EU Data Act | Https://www.sharpconsumer.com/data-access-request/ |
| Diagonal Class | 50" |
| Diagonal Size | 49.5" |
| Commercial Use | Yes - digital signage |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| HDR Format | HDR10 |
| HDR Technology | Perceptual Quantizer (PQ), Hybrid Log-Gamma (HLG) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort, USB-C |
| Technology | VA |
| LCD Backlight Technology | Direct-lit LED local dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Crestron Connected V2 support, SNMP 3.0 support, Real-Time Clock (RTC) |
| Picture Enhancements | 72% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Platform | AMX, XiO Cloud |
| USB | 3 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V |
| Energy Class | Class G |
| Power Consumption Operational | 85 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 44.2 in x 2.6 in x 25.4 in |
| Weight | 39.68 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926063 |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| EU Data Act | Https://www.sharpconsumer.com/data-access-request/ |
| Power Consumption (Max) | 305 watt |
| Power Consumption Operational | 85 watt |
| Power Consumption SDR (On mode) | 81 kWh/1000h |
| Power Consumption HDR (On mode) | 76 kWh/1000h |
| Diagonal Class | 50" |
| Diagonal Size | 49.5" |
| Commercial Use | Yes - digital signage |
| Series | PN-M Series |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | Perceptual Quantizer (PQ), Hybrid Log-Gamma (HLG) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), temperature sensor |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, USB-C |

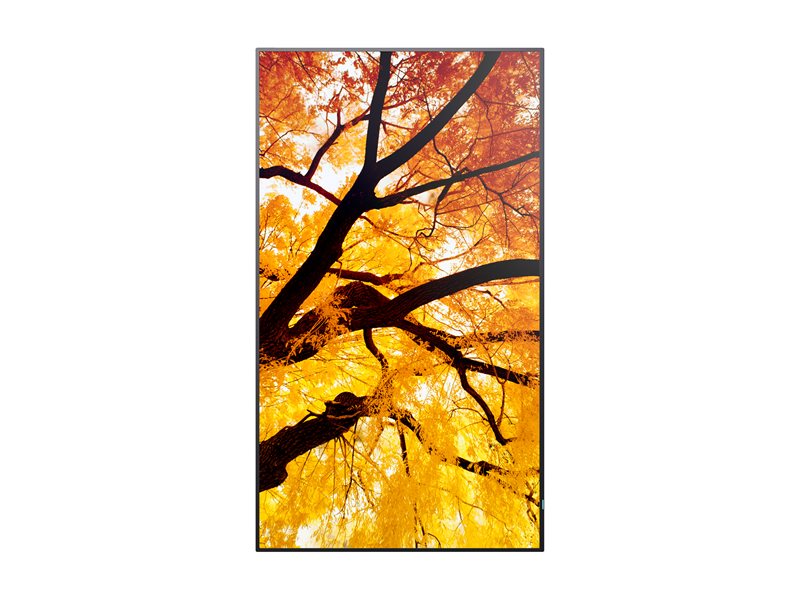

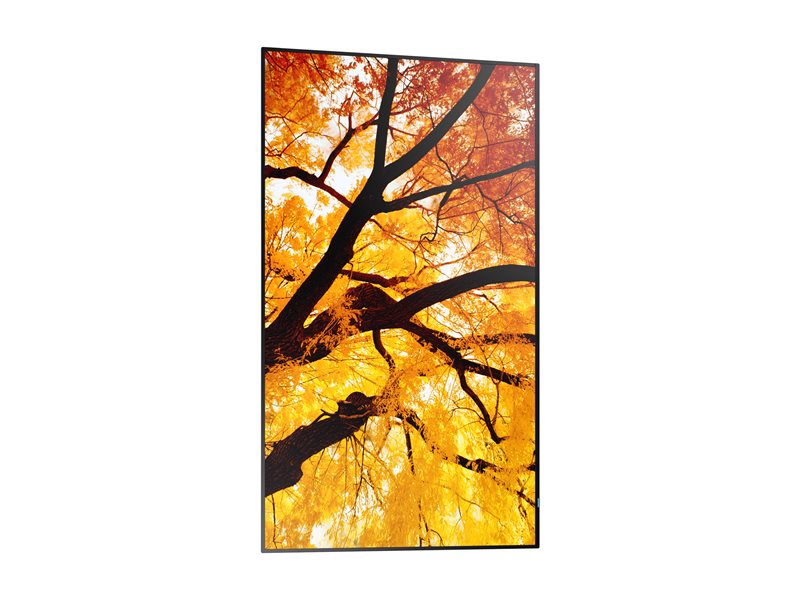

| Modes | Portrait mode, landscape mode, Multi Picture Mode |
| Picture Enhancements | 72% Color Gamut NTSC |
| Dimensions | Without stand |
| Width | 44.2 in |
| Depth | 2.6 in |
| Height | 25.4 in |
| Weight | 39.68 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced exchange program - 3 years |
| Miscellaneous | |
| Cables Included | HDMI cable - 6.6 ft |
| Compliant Standards | CEC, IEEE 802.1x |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| LCD Display Technology | VA |
| Pixel Pitch | 0.285 mm |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct-lit LED - local dimming |
| Coating | 25% haze |
| Color Temperature | 3000 - 15000K |
| Image Contrast Ratio | 4000:1 |
| Brightness | 550 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | Crestron Connected V2 support, SNMP 3.0 support, Real-Time Clock (RTC) |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Intel SDM Ready, Raspberry Pi Compute Module Compatible, SpectraView Engine support, Daisy Chain, TileComp, TileMatrix |
| Connections | |

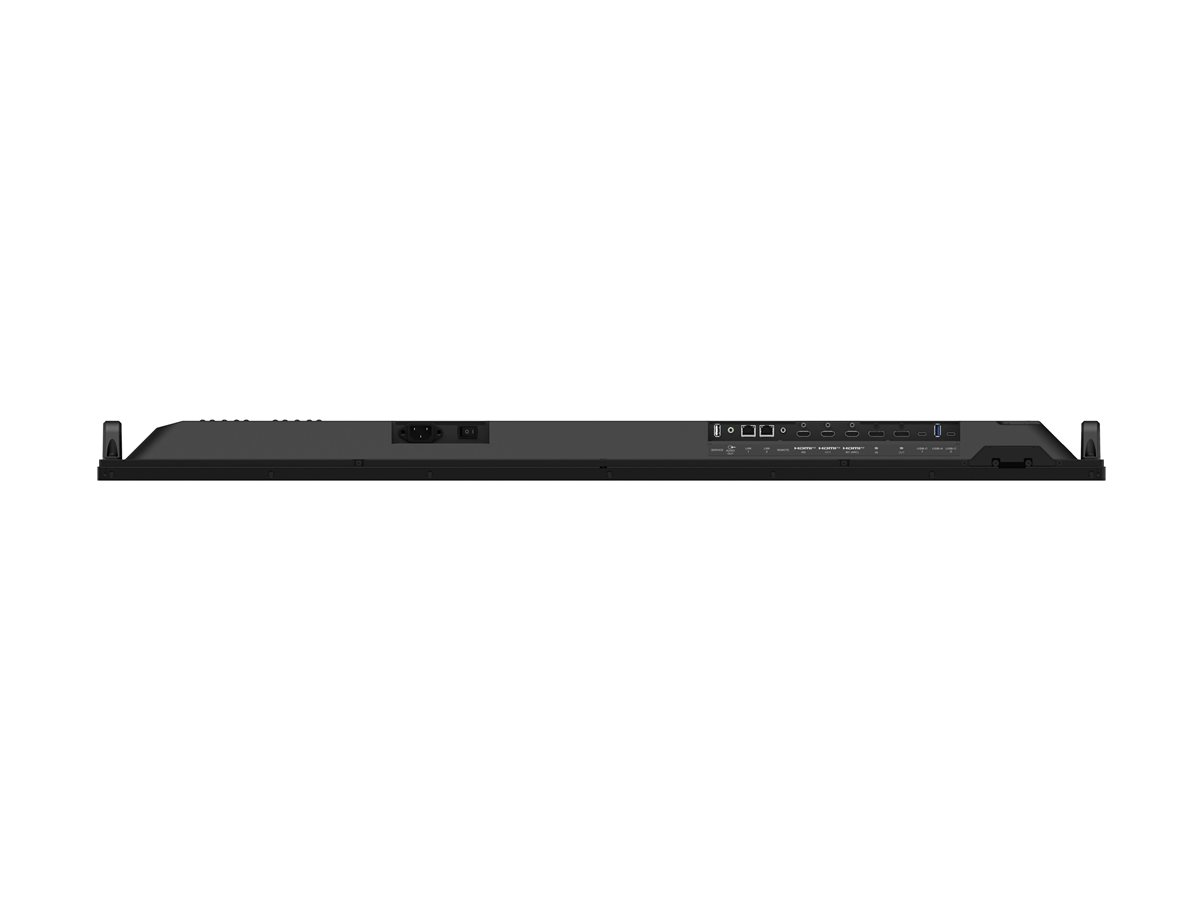

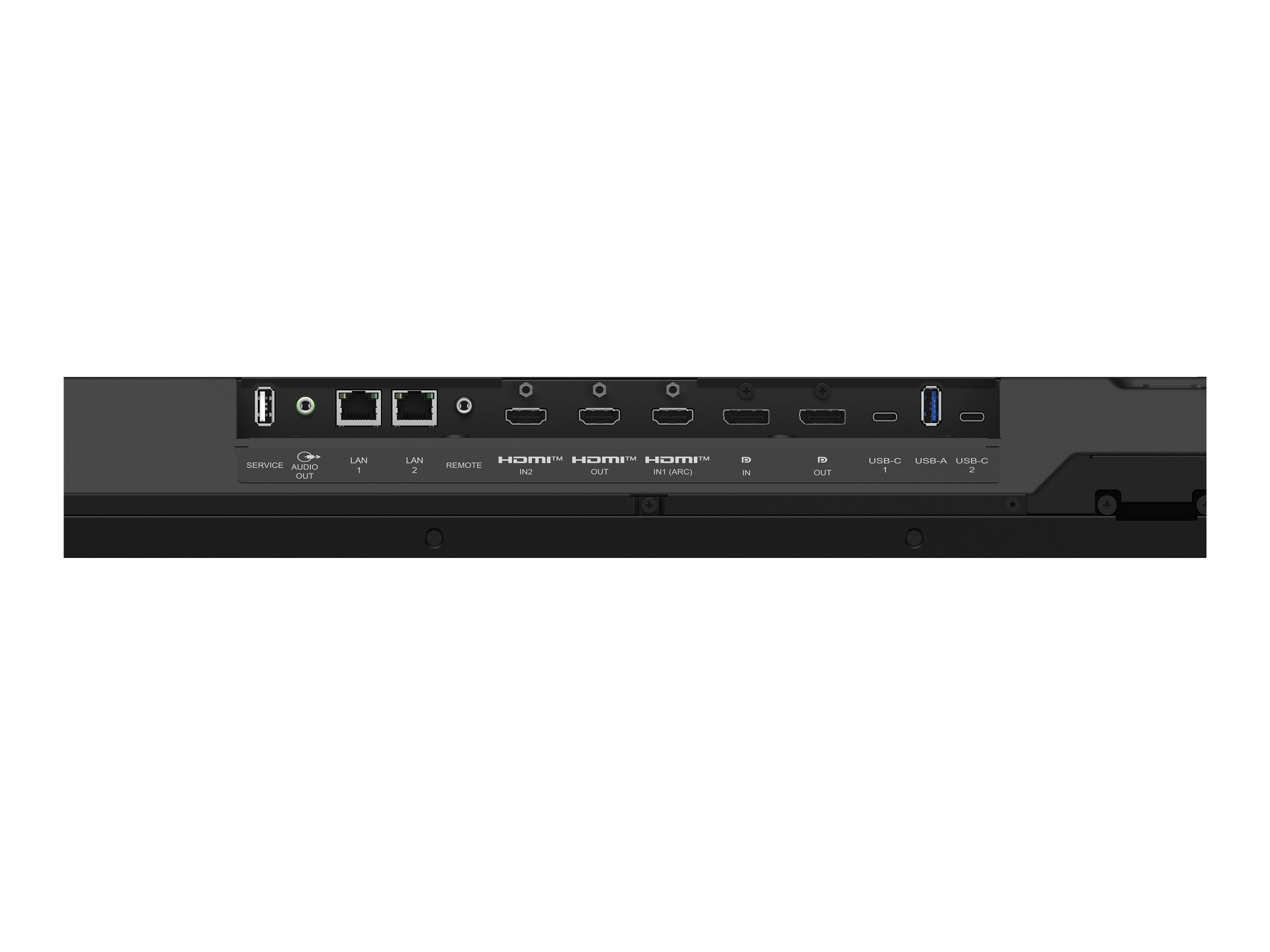

| Connector Type | 2 x HDMI input ¦ 2 x DisplayPort input ¦ USB ¦ LAN input ¦ IR receiver ¦ RS-232C ¦ USB-C (data only) ¦ USB 2.0 (for software update only) ¦ USB 3.2 Gen 1 downstream ¦ USB downstream ¦ HDMI output ¦ DisplayPort output ¦ Audio line-out ¦ LAN output |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 49 in |
| Depth (Shipping) | 7.4 in |
| Height (Shipping) | 30.9 in |
| Weight (Shipping) | 50.71 lbs |
| Network & Internet Multimedia | |
| Functionality | WEB browsing |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Supported Consumer Electronics Control (CEC) | PJ Link |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | AMX, XiO Cloud |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
