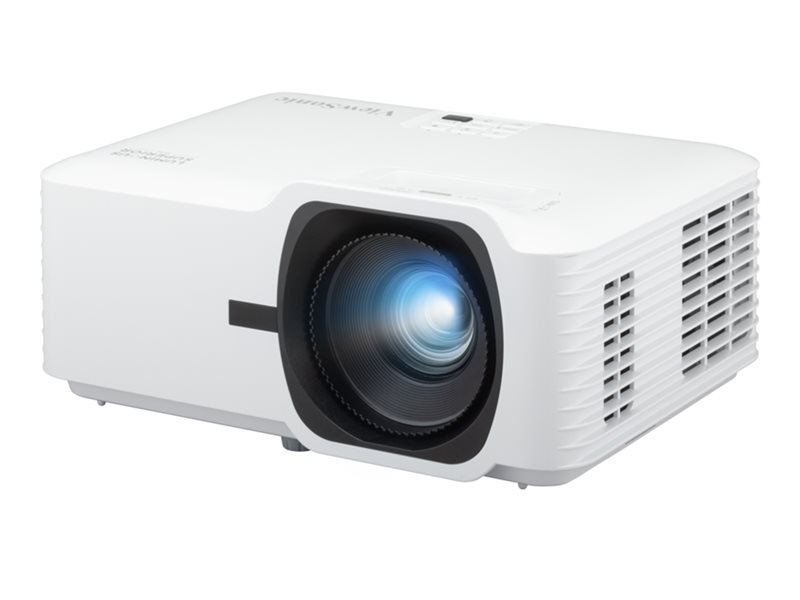

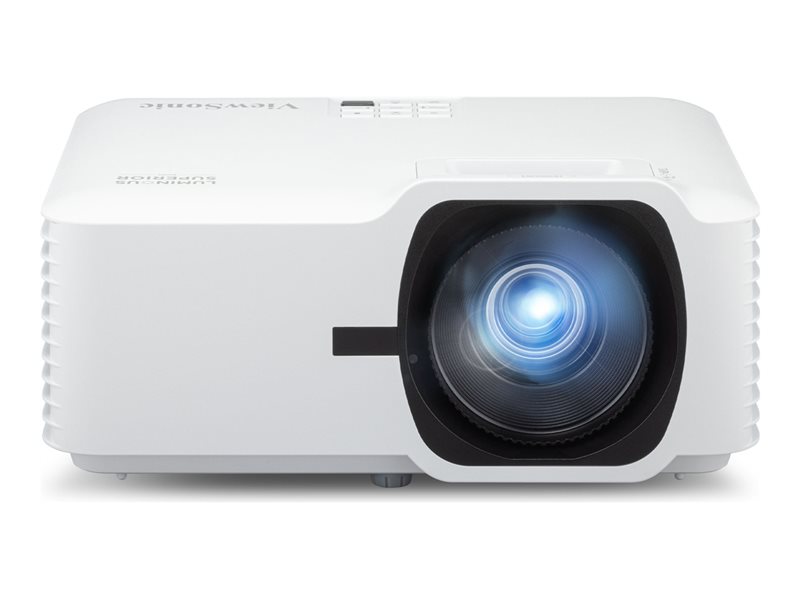

DLP projector - laser/phosphor - 5500 ANSI lumens - Full HD (1920 x 1080) - 16:9
| Main Specifications | |
|---|---|

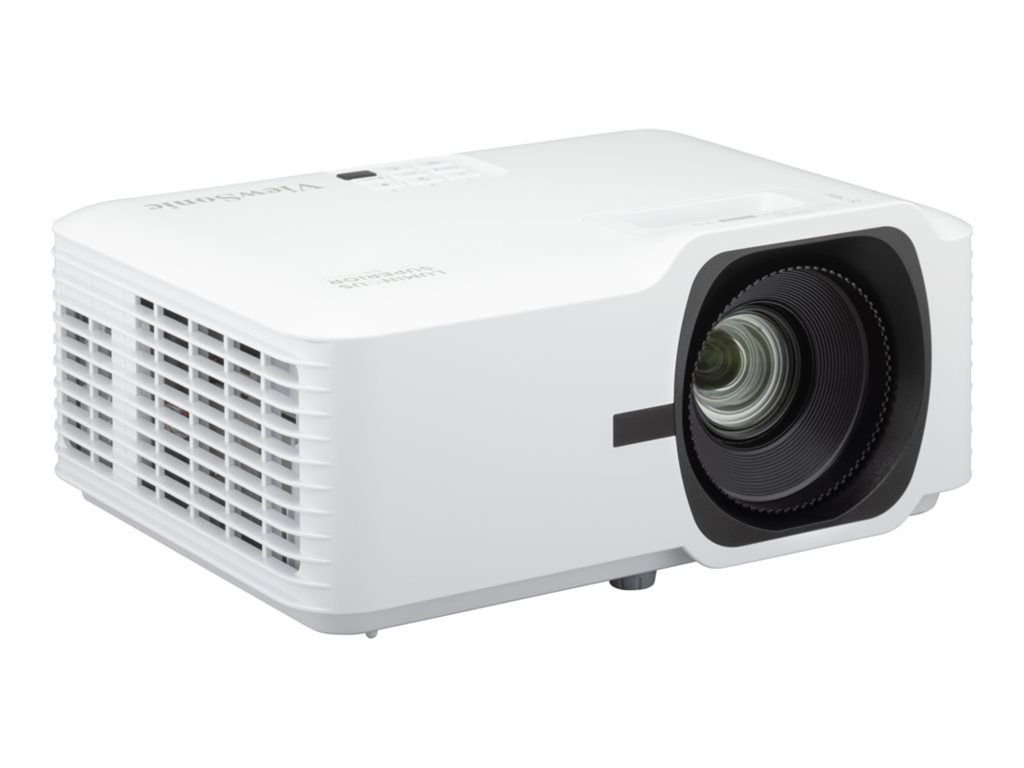

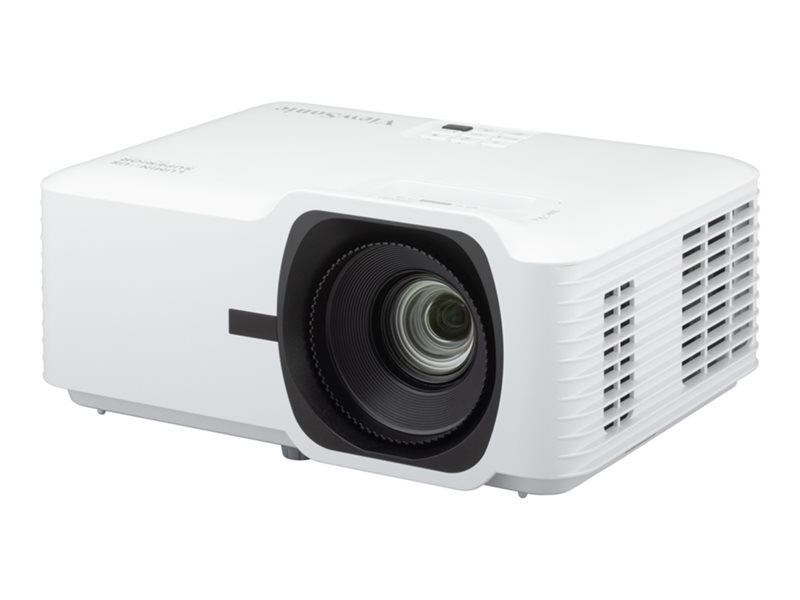

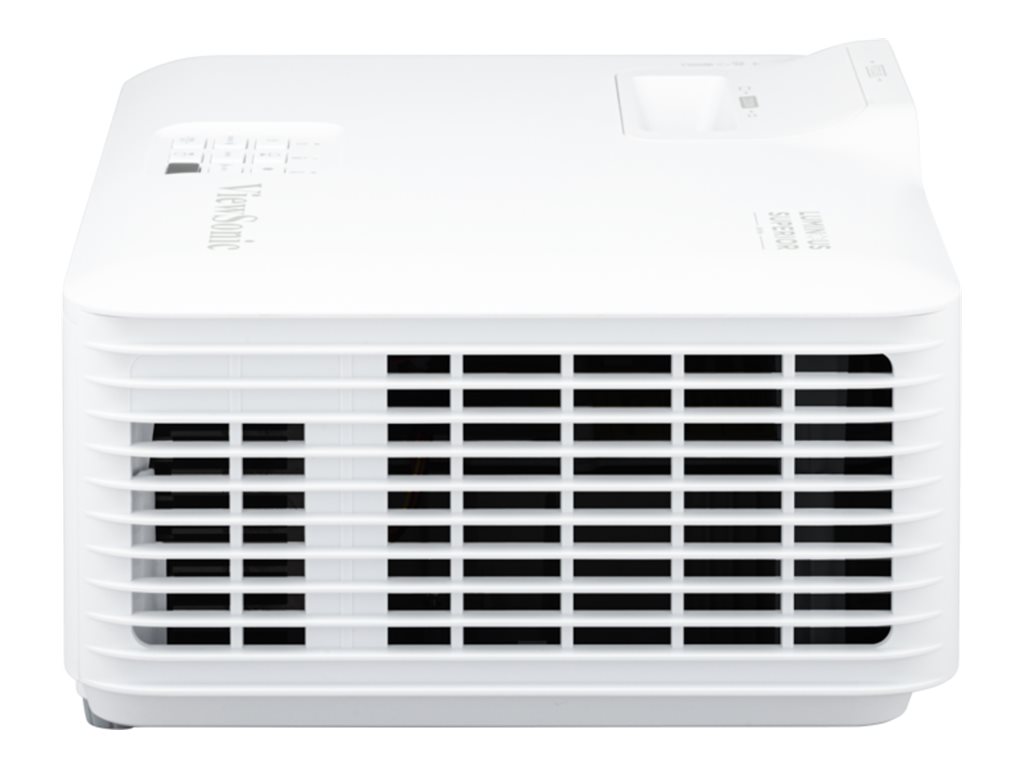

| Product Description | ViewSonic LSD500HD - DLP projector |
| Device Type | DLP projector |

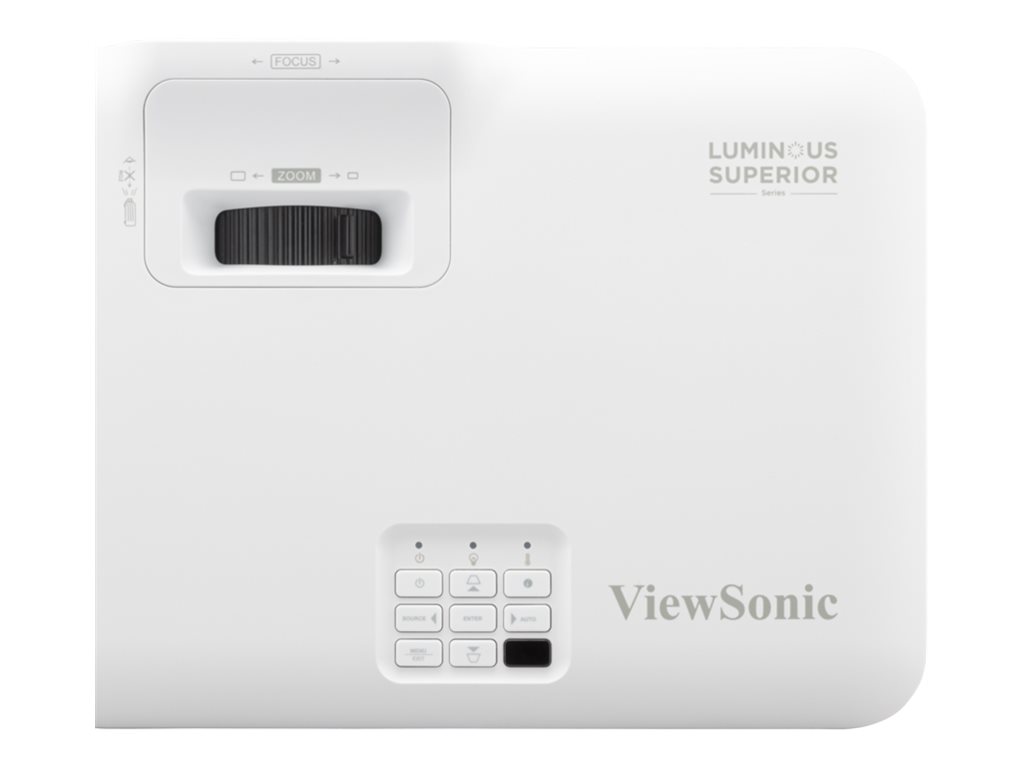

| Built-in Devices | Keypad |
| Microdisplay | DMD Chip |
| Brightness | 5500 ANSI lumens |
| Contrast Ratio | 3000000:1 |
| Resolution | Full HD (1920 x 1080) |
| Native Aspect Ratio | 16:9 |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Speakers | Speaker(s) - internal |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 165 watt |
| Dimensions (WxDxH) | 11.3 in x 8.5 in x 5.1 in |
| Weight | 6.39 lbs |
| General | |
| Device Type | DLP projector |
| Built-in Devices | Keypad |
| Expansion / Connectivity | |

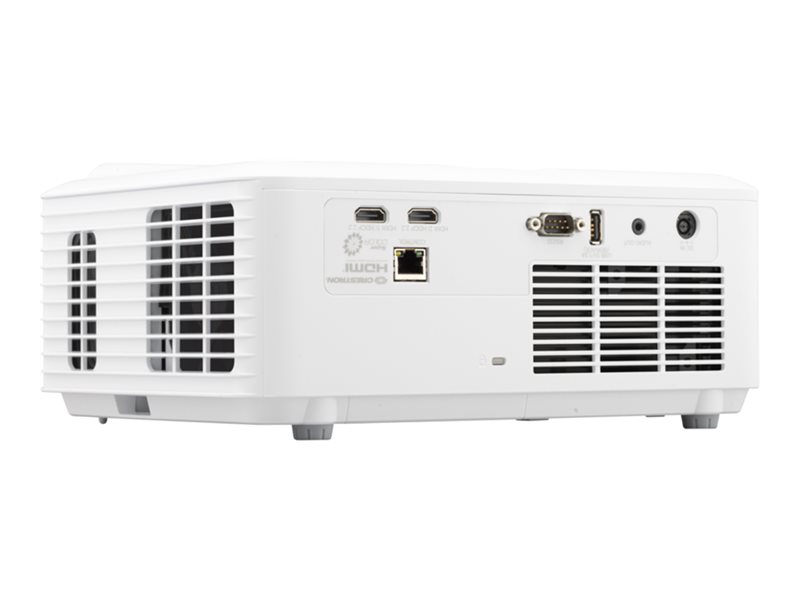

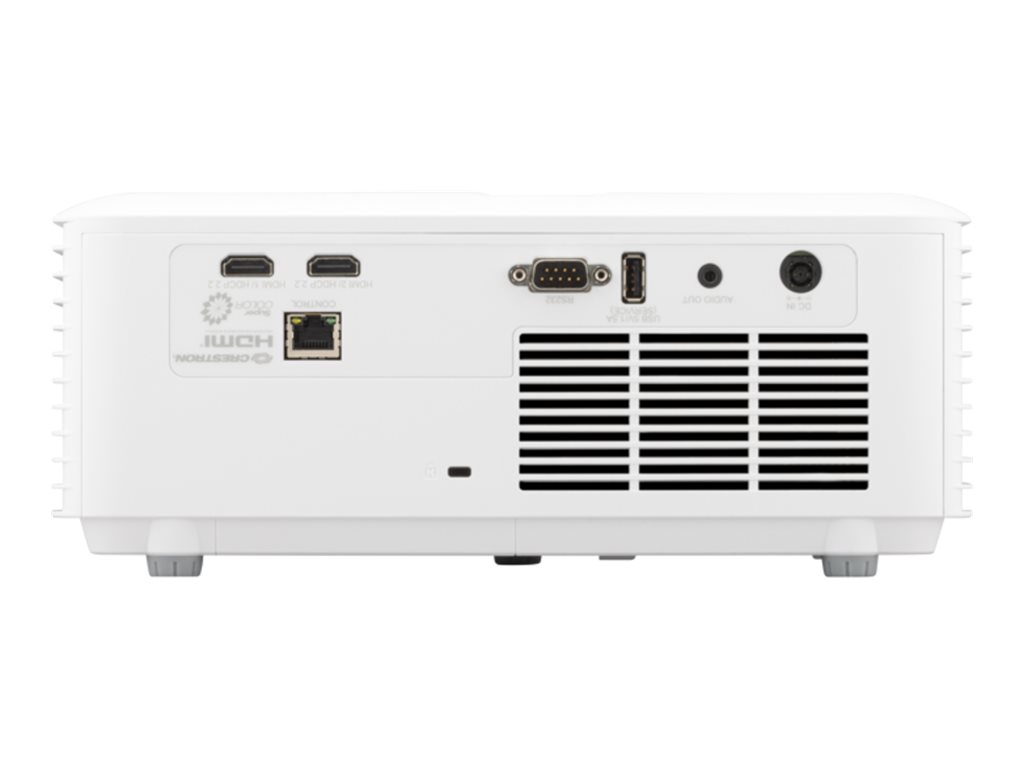

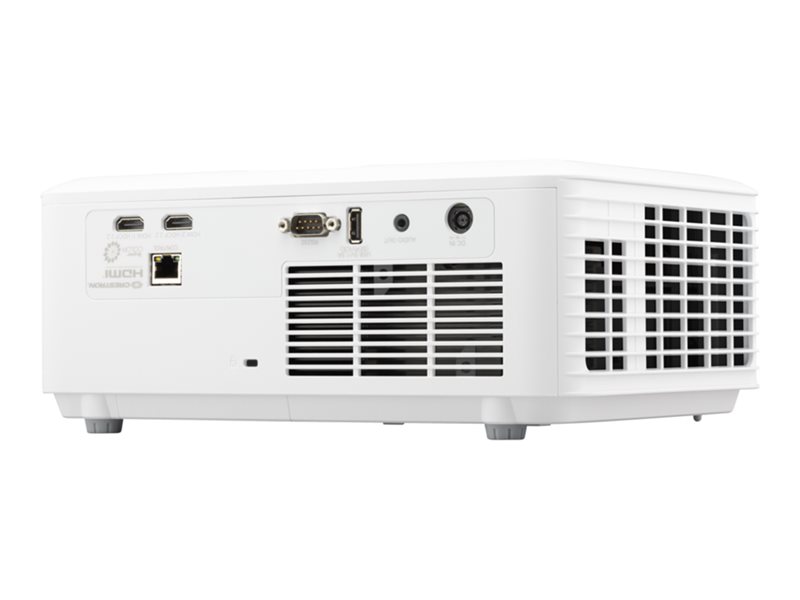

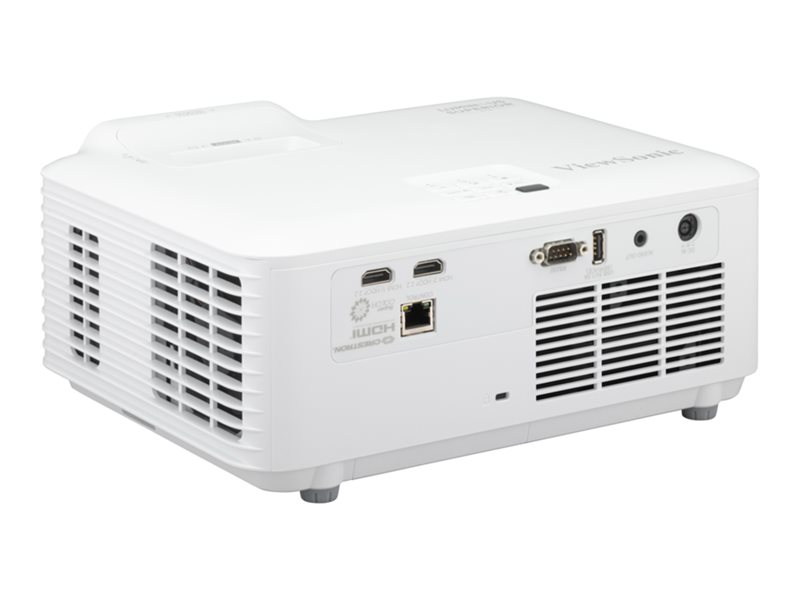

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB (service/power) - 4 pin USB Type A ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 |
| Miscellaneous | |

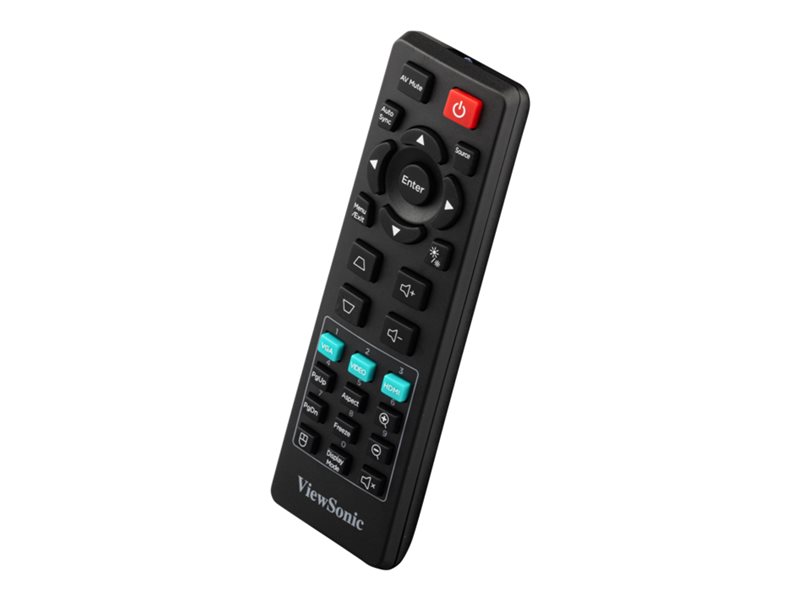

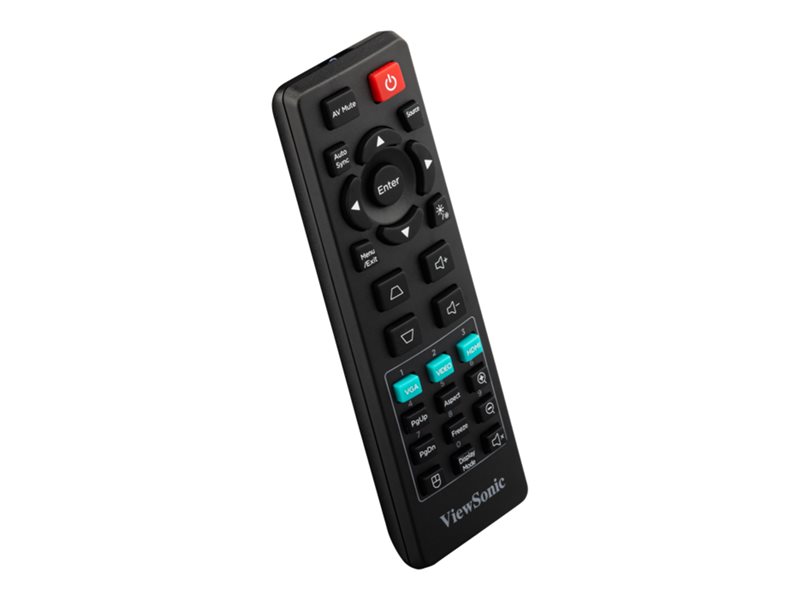

| Included Accessories | Remote control, batteries |
| Compliant Standards | IP6X, HDCP 1.4, EN 55032:2015+A11:2020+A1:2020, EN55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021, EN 62368-1:2014/A11:2017, Directive 1275/2008/EC |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 165 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Video Input | |
| Video Interfaces | HDMI |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Dimensions & Weight | |
| Width | 11.3 in |
| Depth | 8.5 in |
| Height | 5.1 in |
| Weight | 6.39 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 5500 ANSI lumens |
| Contrast Ratio | 3000000:1 |
| Image Size | 30 in - 300 in |
| Projection Distance | 2.5 ft - 32 ft |
| Throw Ratio | 1.15 - 1.5:1 |
| Resolution | Full HD - Full HD (1920 x 1080) |
| Native Aspect Ratio | 16:9 |
| Max Sync Rate (V x H) | 120 Hz x 135 kHz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode |
| Controls & Adjustments | Keystone correction |
| OSD Languages | English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, Chinese (simplified), Chinese (traditional), Japanese, Korean, Russian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian |
| Features | 360° projection, Filter-Free DLP technology, Eco Mode |
| Lens | |
| Zoom Type | Manual |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Speakers | |
| Type | Internal |
| Output Power / Channel | 15 watt |
